Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the manual selector into the vehicle. Secure the manual selector with 4 nuts.

    Tighten

    Tighten the manual selector bolts to 12 N.m (12 lb ft).

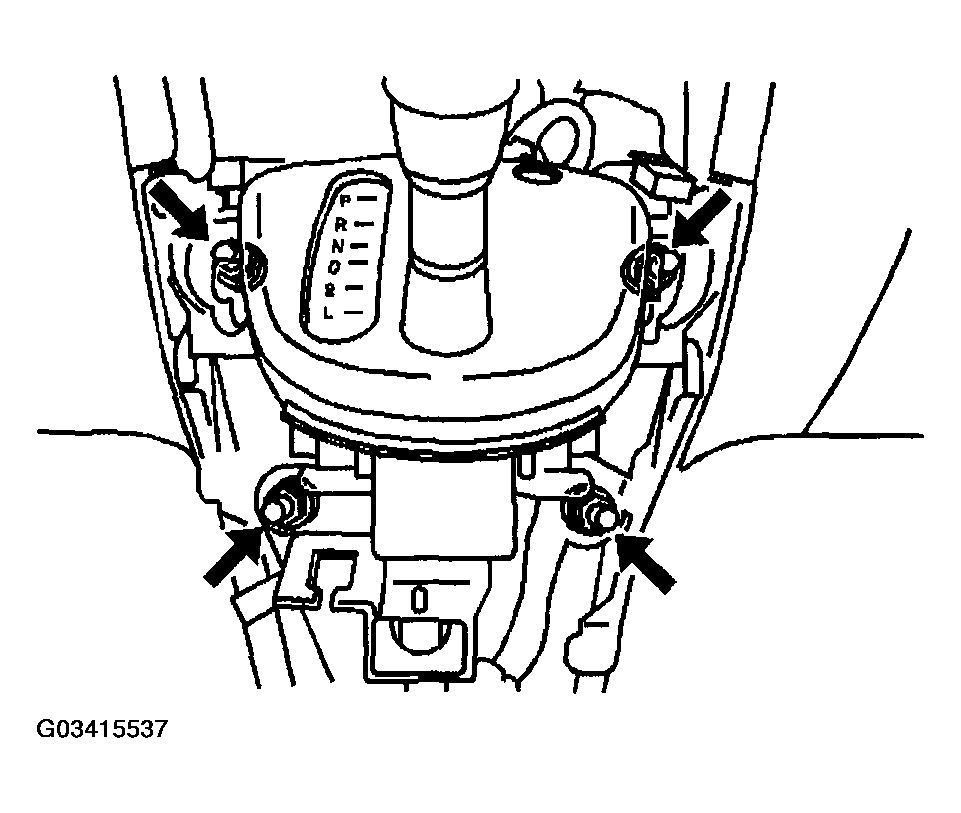

    Fig 1: Installing Manual Selector Into Vehicle Securing Manual Selector With 4 Nuts
    G03415537Courtesy of GENERAL MOTORS CORP.
  2. Connect the manual selector electrical connectors.

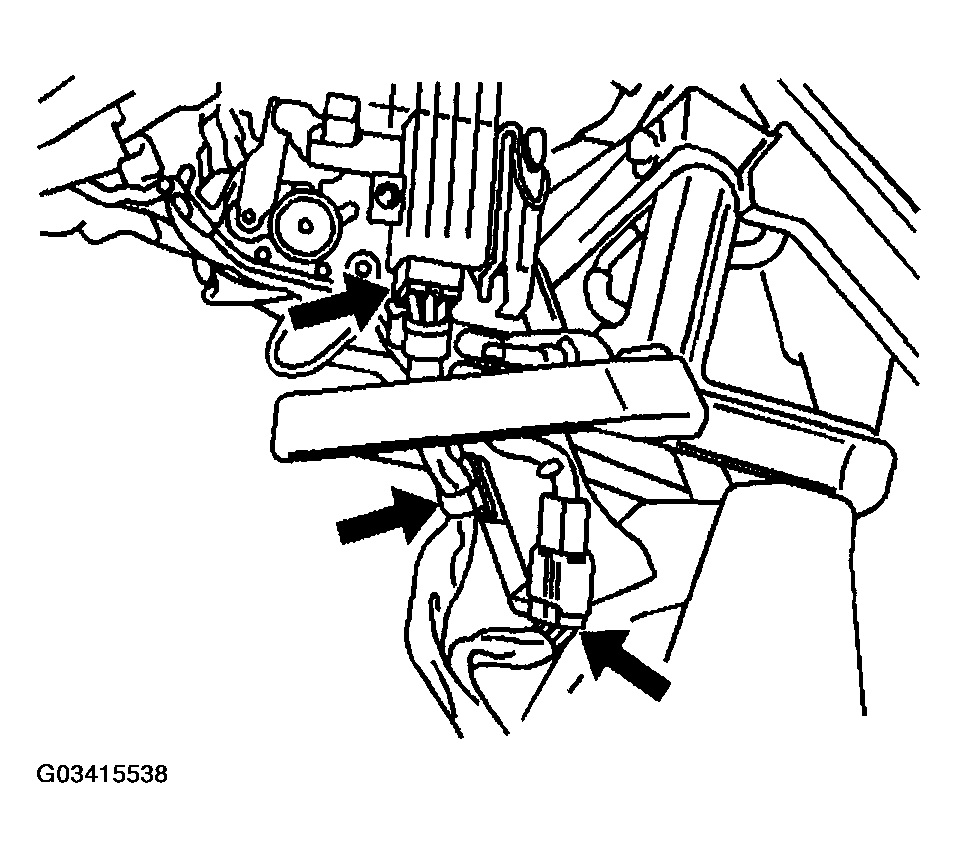

    Fig 2: Connecting Manual Selector Electrical Connectors
    G03415538Courtesy of GENERAL MOTORS CORP.
  3. Install the shift select cable into the shift lever plate.

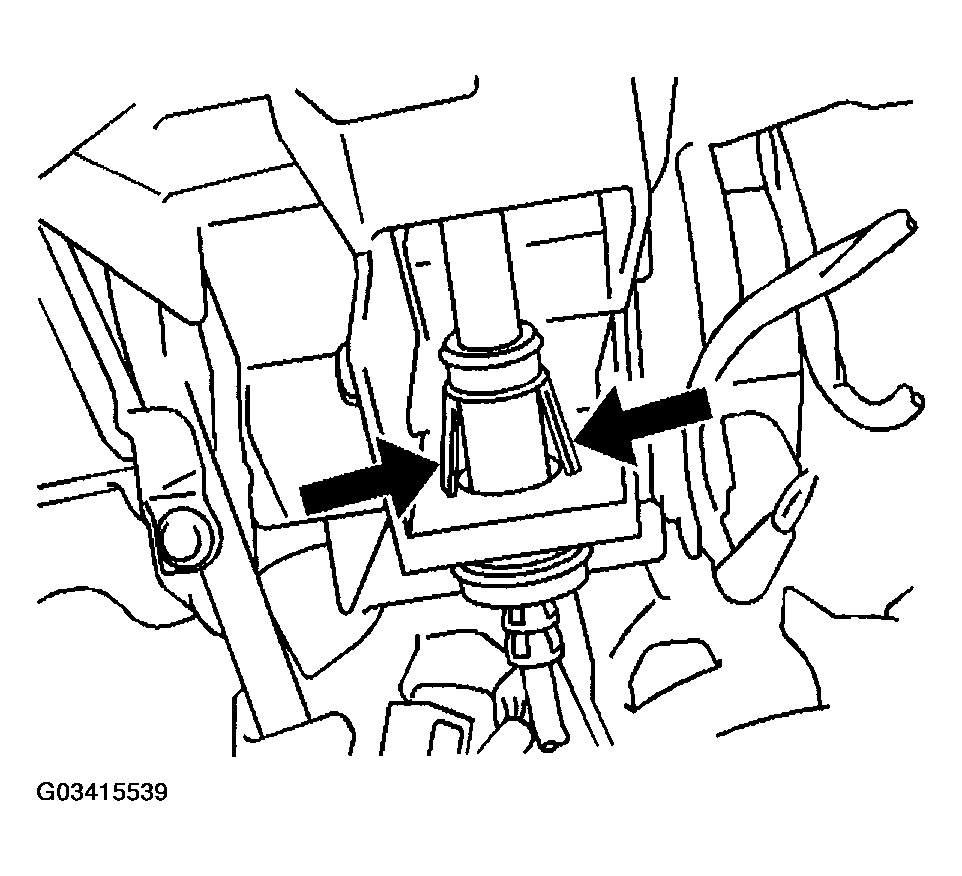

    Fig 3: Installing Shift Select Cable Into Shift Lever Plate
    G03415539Courtesy of GENERAL MOTORS CORP.
  4. Connect the shift select cable to the manual selector lever.

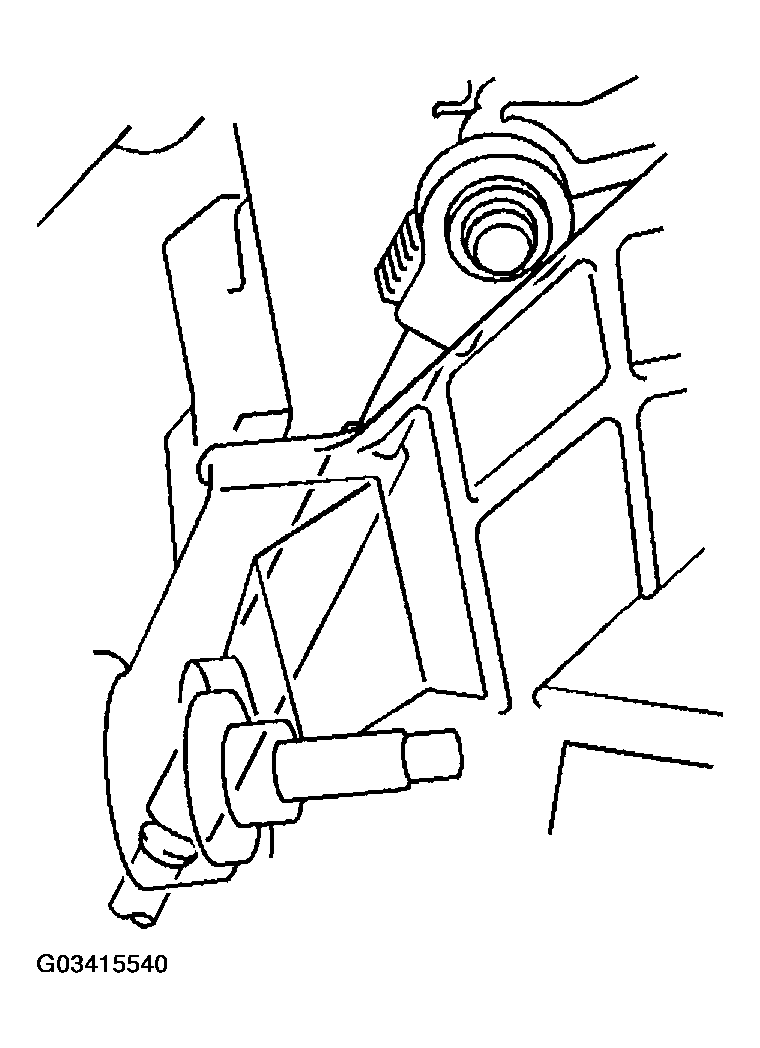

    Fig 4: Connecting Shift Select Cable To Manual Selector Lever
    G03415540Courtesy of GENERAL MOTORS CORP.
  5. Install the park lock cable to the shift lever plate.

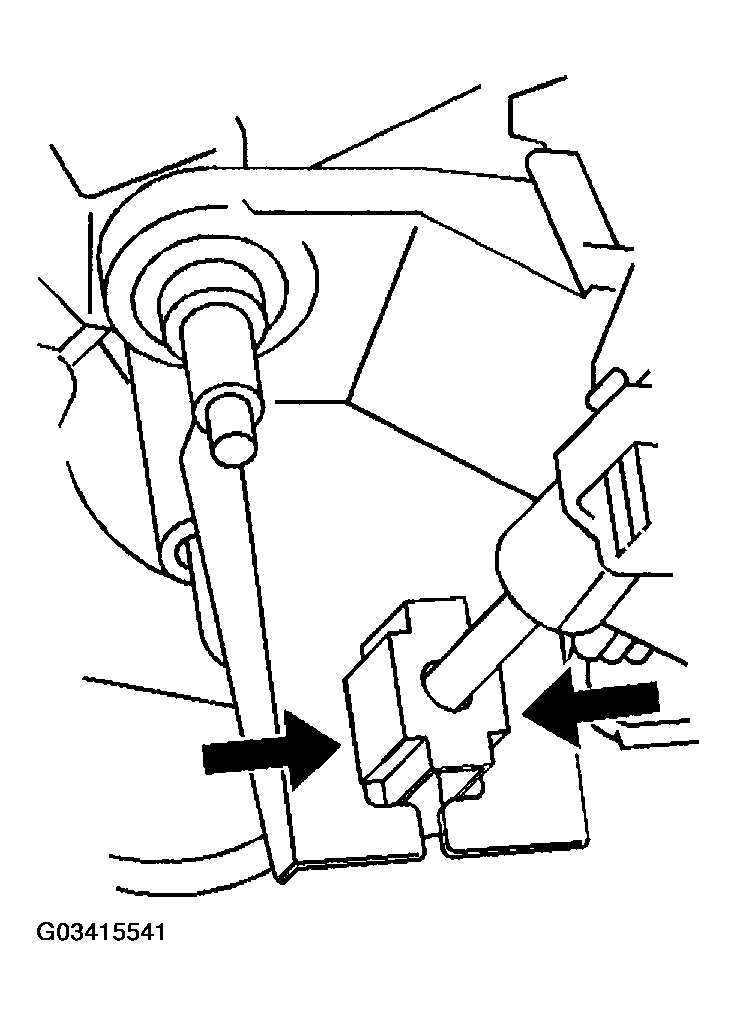

    Fig 5: Installing Park Lock Cable To Shift Lever Plate
    G03415541Courtesy of GENERAL MOTORS CORP.
  6. Connect the park lock cable to the manual selector lever.
  7. Install the center instrument trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER in Instrument Panel, Gages and Console.
  8. Install the instrument compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  9. Install the front floor console. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE in Instrument Panel, Gages and Console.
  10. Connect the negative battery cable.

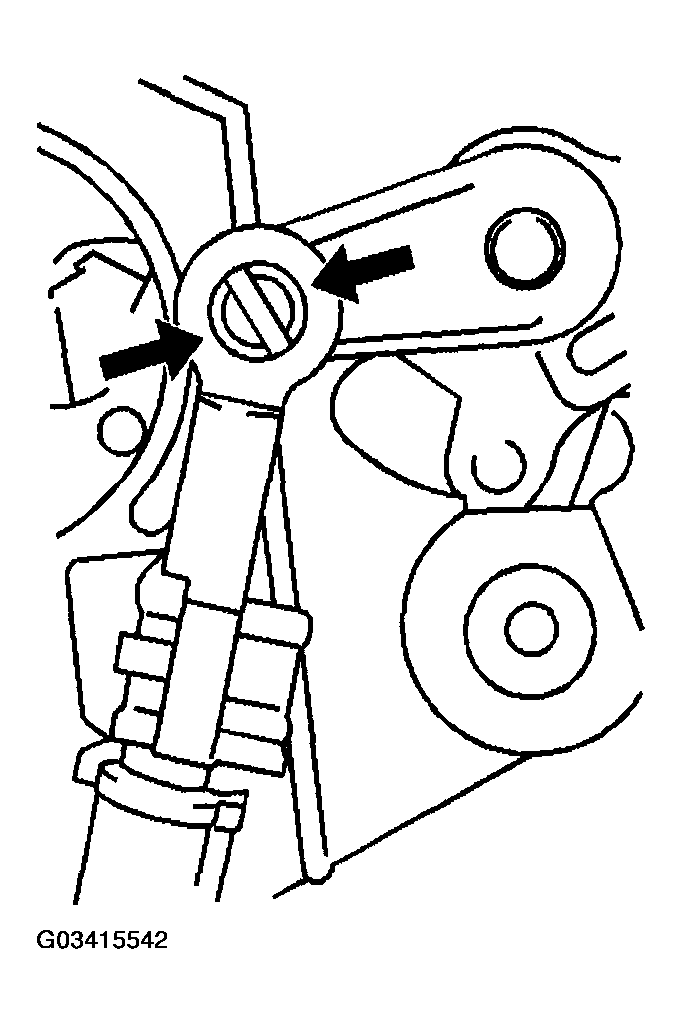

    Fig 6: Connecting Park Lock Cable To Manual Selector Lever
    G03415542Courtesy of GENERAL MOTORS CORP.
