Removal Procedure

  1. Remove the front suspension crossmember. Refer to FRONT SUSPENSION CROSSMEMBER REPLACEMENT (FWD)  or FRONT SUSPENSION CROSSMEMBER REPLACEMENT (AWD)  .
  2. Remove the 2 bolts (1,4) and the 1 nut (3) in order to remove the control arm from the crossmember.

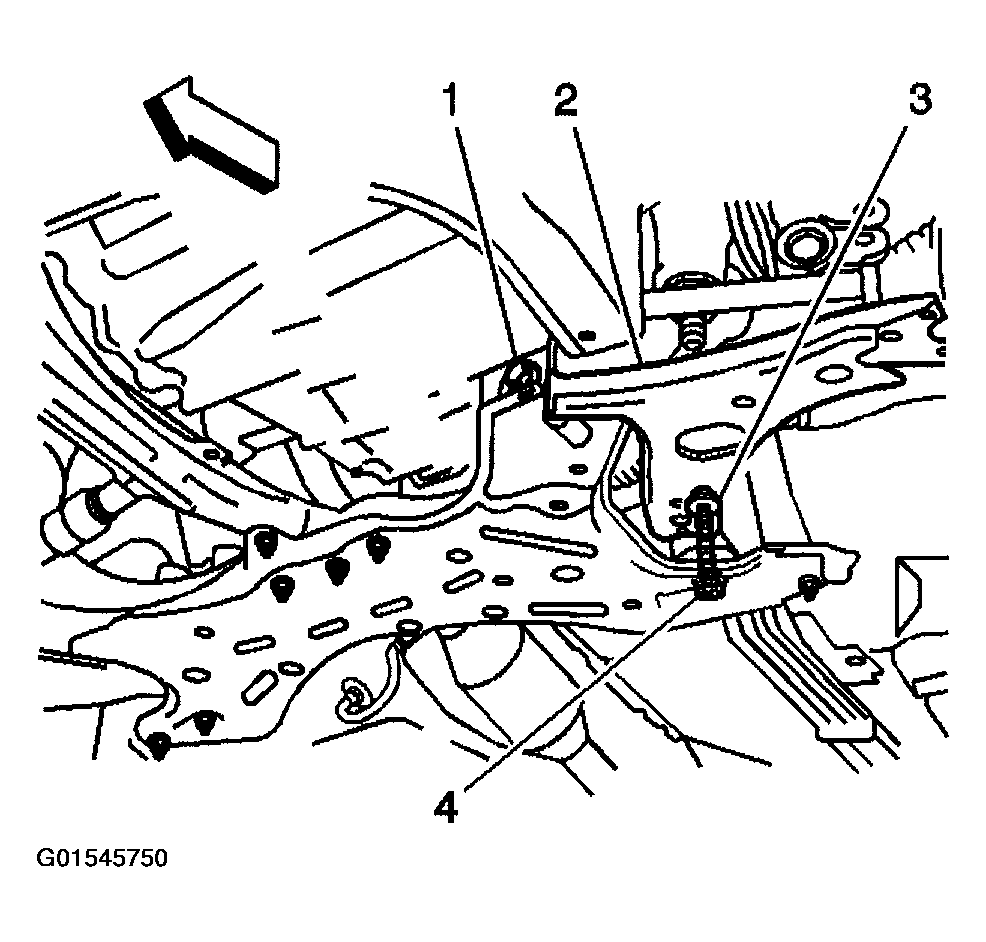

    Fig 1: Removing Lower Control Arm
    G01545750Courtesy of GENERAL MOTORS CORP.
