Removal Procedure

  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the trim covers from the steering column. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  3. Insert the key into the ignition lock cylinder (2).
  4. Turn the key to the ACC position.
  5. Use a screwdriver in order to push in the stop pin on the underside of the lock cylinder case (6).
  6. Remove the cylinder from the case.

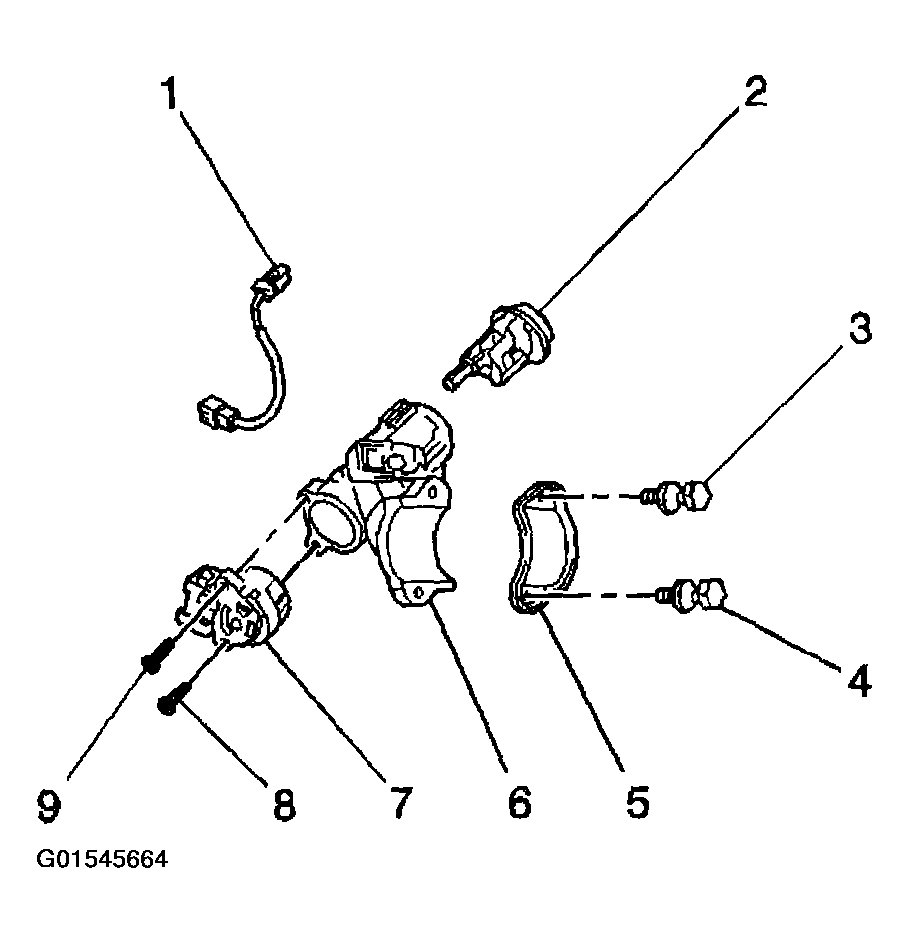

Fig 1: Removing Ignition Lock Cylinder
G01545664Courtesy of GENERAL MOTORS CORP.
