Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the front tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the cotter pin from the outer tie rod nut.

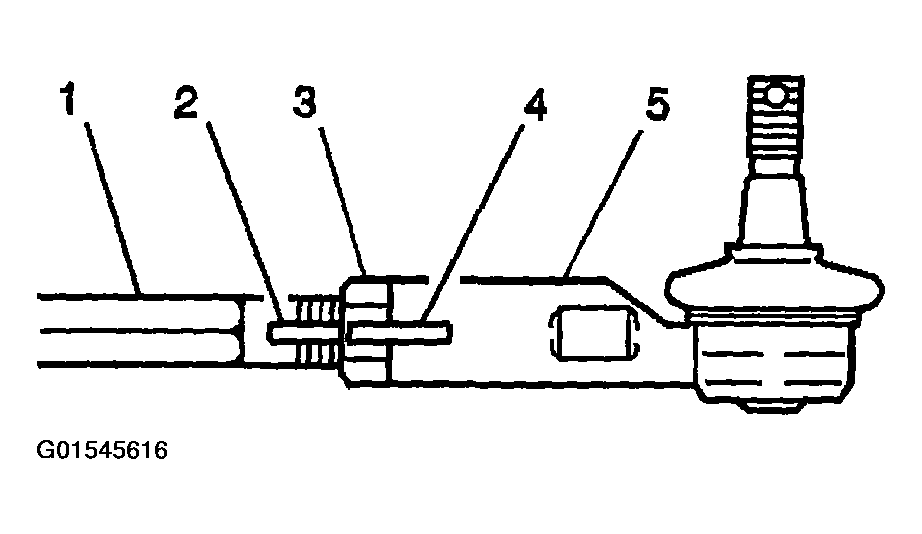

    Fig 1: Removing Outer Tie Rod From Inner Tie Rod
    G01545616Courtesy of GENERAL MOTORS CORP.
  4. Remove the outer tie rod nut.
  5. Use the J 6627-A  , or equivalent, in order to separate the outer tie rod from the knuckle.
  6. Use paint in order to place matchmarks (2,4) on the following components:
    • The inner tie rod (1)
    • The lock nut (3)
    • The outer tie rod (5)
  7. Loosen the lock nut.
  8. Remove the outer tie rod from the inner tie rod.
