Power Steering Pump Disassembled View

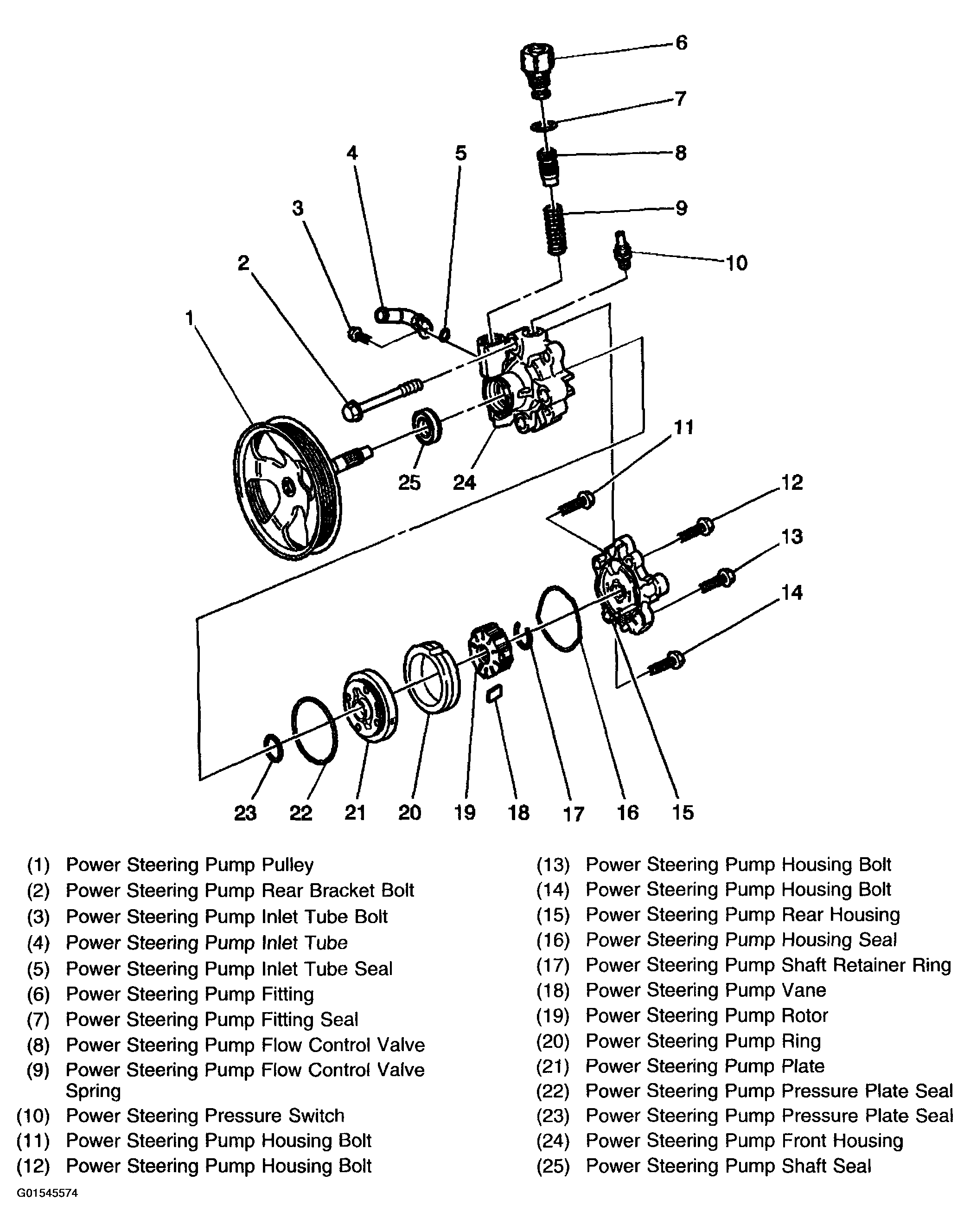

Fig 1: Exploded View Of Power Steering Pump

G01545574

Courtesy of GENERAL MOTORS CORP.
