Power Steering Gear Disassembled View

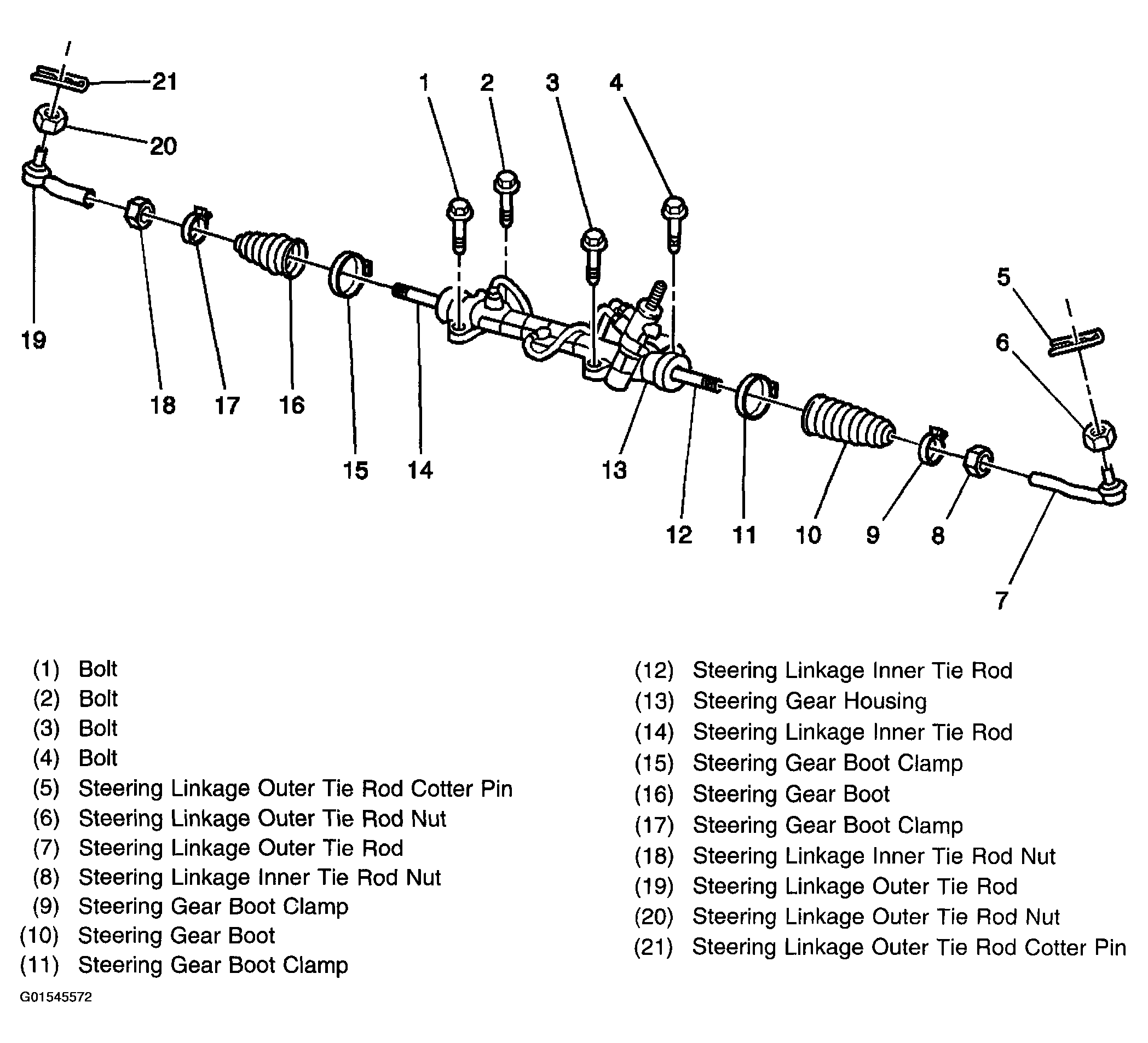

Fig 1: Exploded View Of Power Steering Gear (FWD)

G01545572

Courtesy of GENERAL MOTORS CORP.

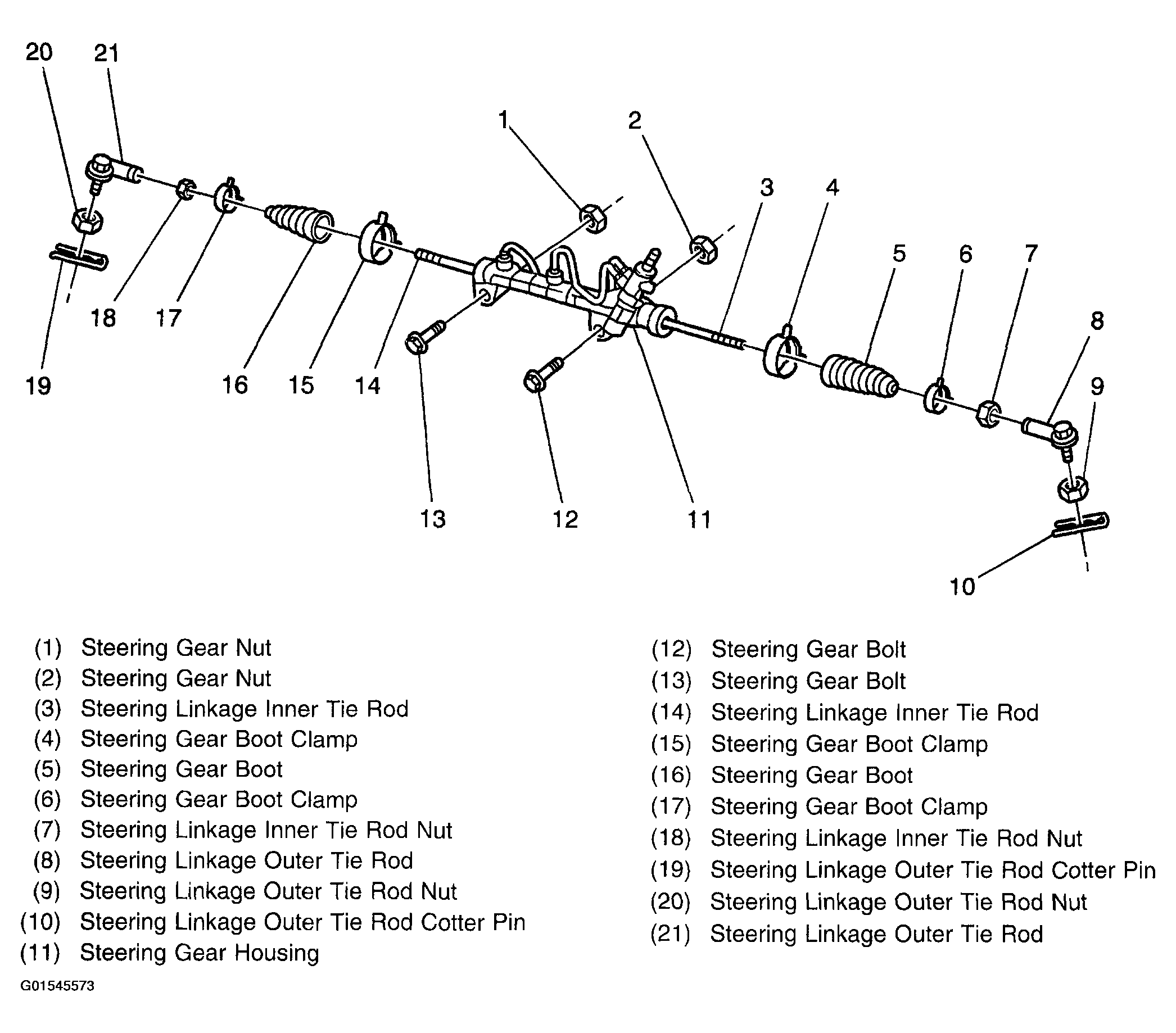

Fig 2: Exploded View Of Power Steering Gear (AWD)

G01545573

Courtesy of GENERAL MOTORS CORP.
