Removal Procedure

  1. Remove the front floor rear console. Refer to CONSOLE REPLACEMENT - REAR FLOOR in Instrument Panel, Gages and Console.
  2. Position the front seat (1) in a forward position in order to gain access to the seat belt switch electrical connector (2).
  3. Disconnect the seat belt switch electrical connector (2).

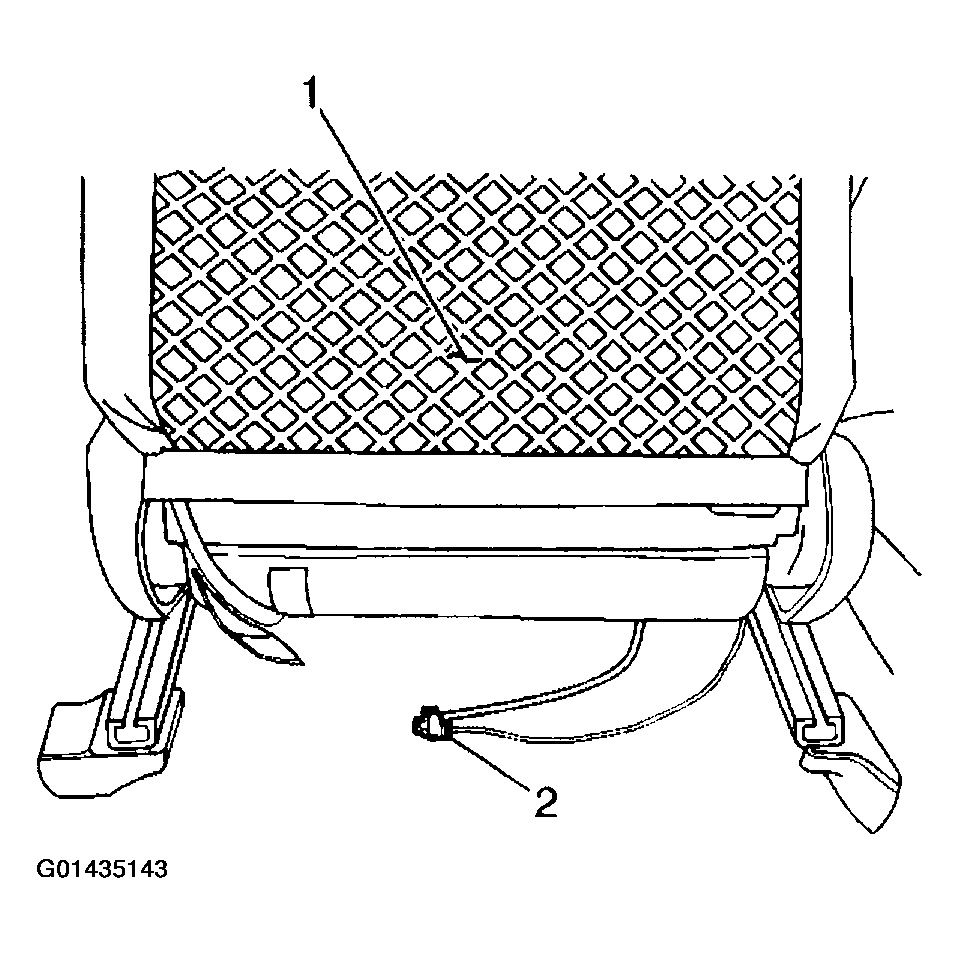

    Fig 1: Disconnecting Seat Belt Switch Electrical Connector - Right Front
    G01435143Courtesy of GENERAL MOTORS CORP.
  4. Remove the following components from the front seat:
    • The 2 screws (1)
    • The inner adjuster finish cover (4)
    • The bolt (3)
    • The seat belt buckle (2)

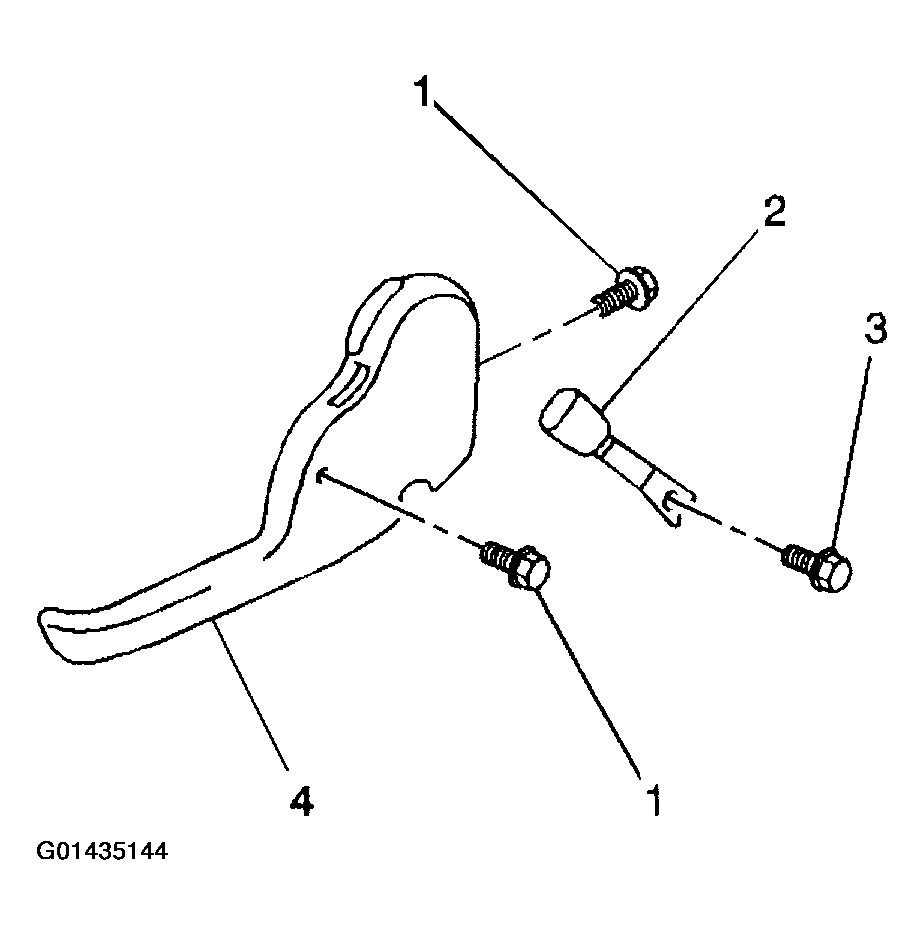

    Fig 2: Removing Seat Belt Buckle & Adjuster Finish Cover From Right Front Seat
    G01435144Courtesy of GENERAL MOTORS CORP.
