Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the rear seat belt buckle (1) to the vehicle. Secure the buckle with the anchor bolt.

    Tighten

    Tighten the rear seat belt buckle anchor bolt to 42 N.m (31 lb ft).

  2. Install the rear seat. Refer to SEAT REPLACEMENT - REAR in Seats.

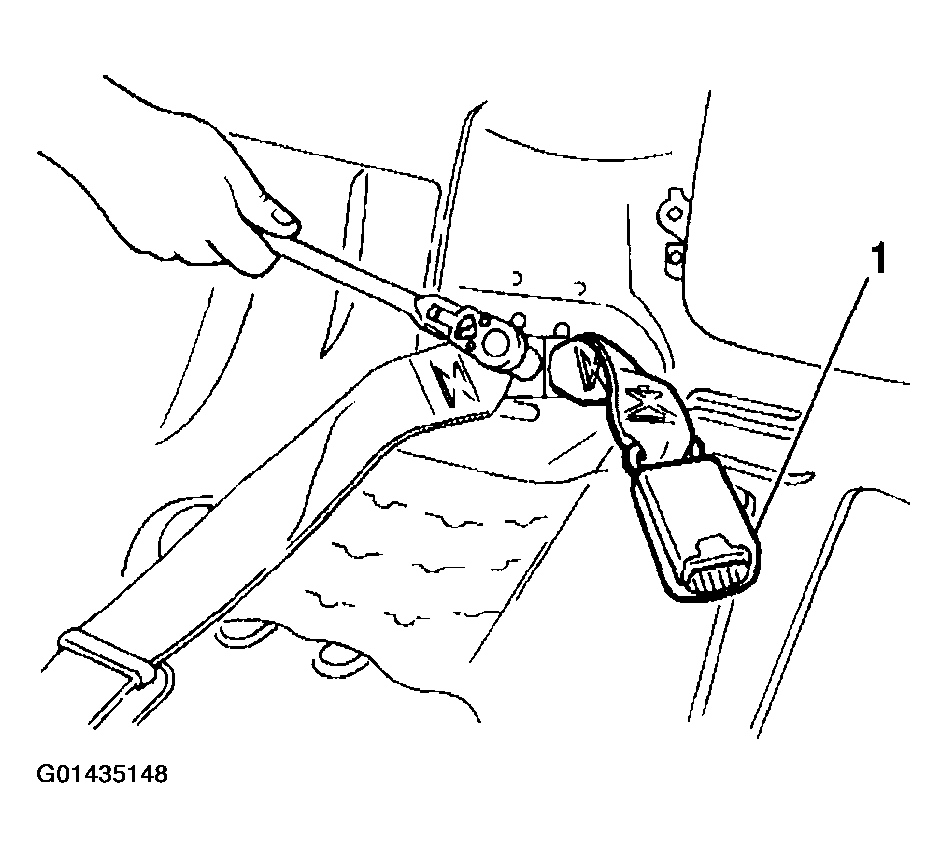

    Fig 1: Installing Rear Seat Belt Buckle
    G01435148Courtesy of GENERAL MOTORS CORP.
