Wheel Alignment Specifications (AWD)

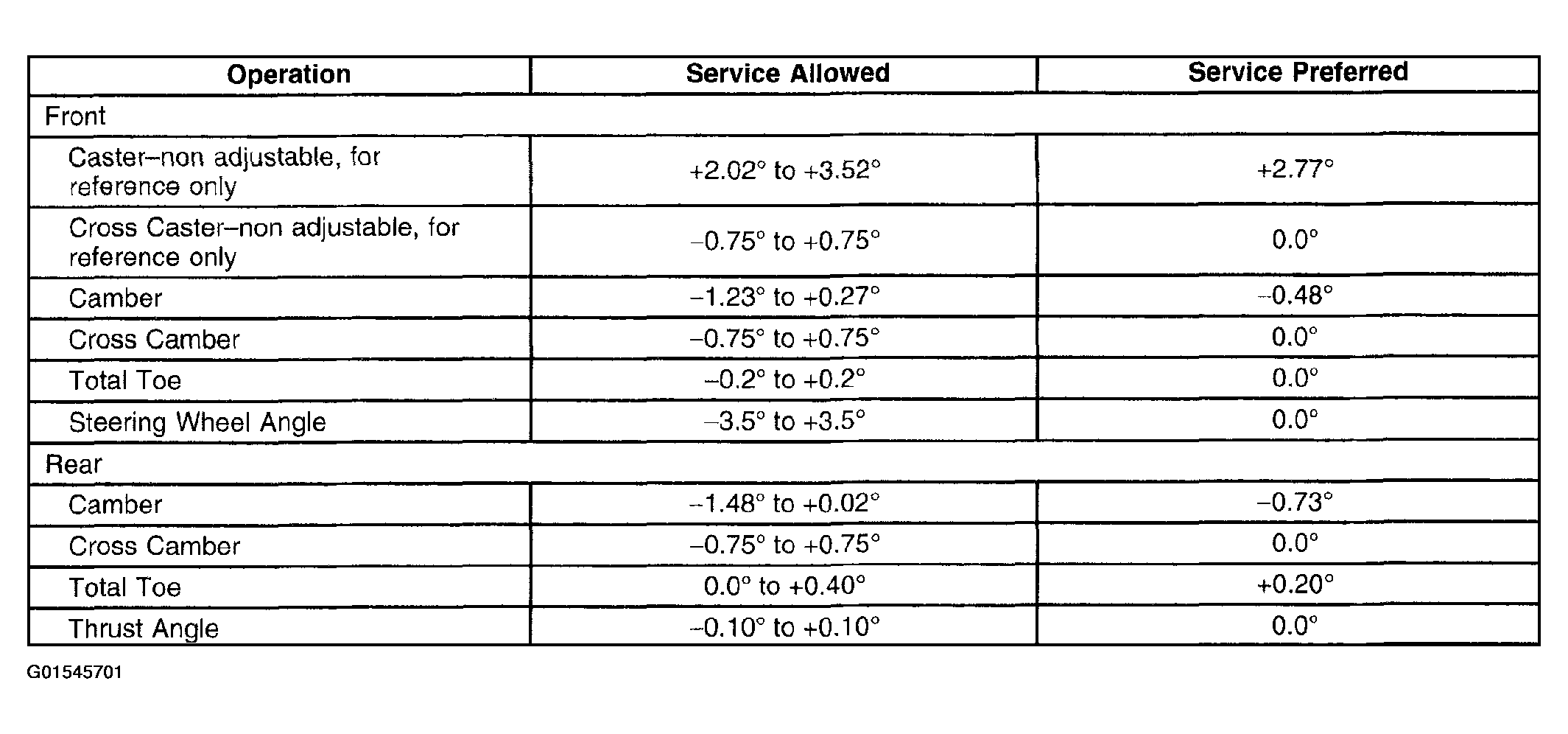

Fig 1: Wheel Alignment Specifications (AWD)

G01545701

Courtesy of GENERAL MOTORS CORP.
