Engine Overheating

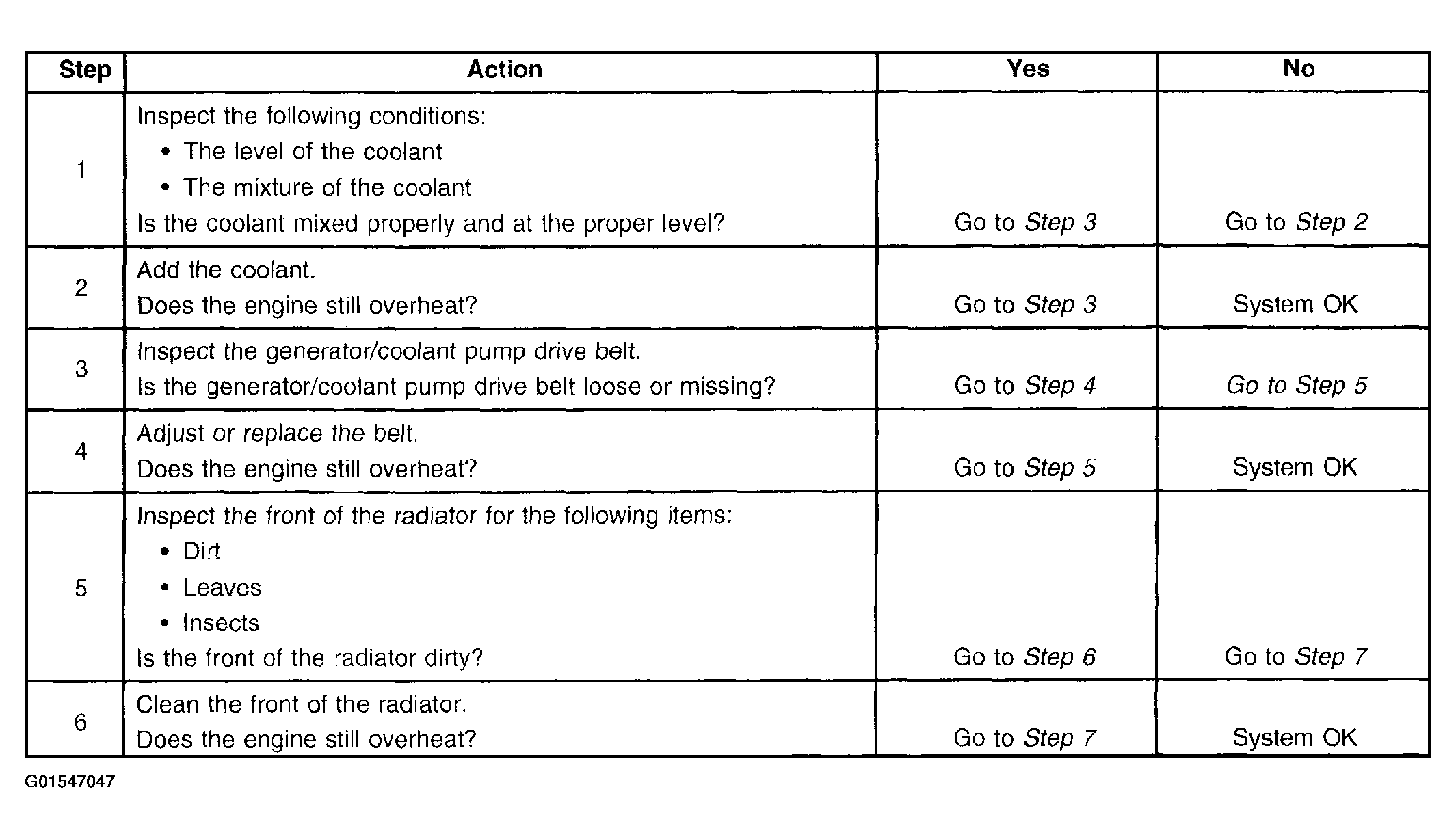

Fig 1: Engine Overheating Diagnosis (Steps 1-6)

G01547047

Courtesy of GENERAL MOTORS CORP.

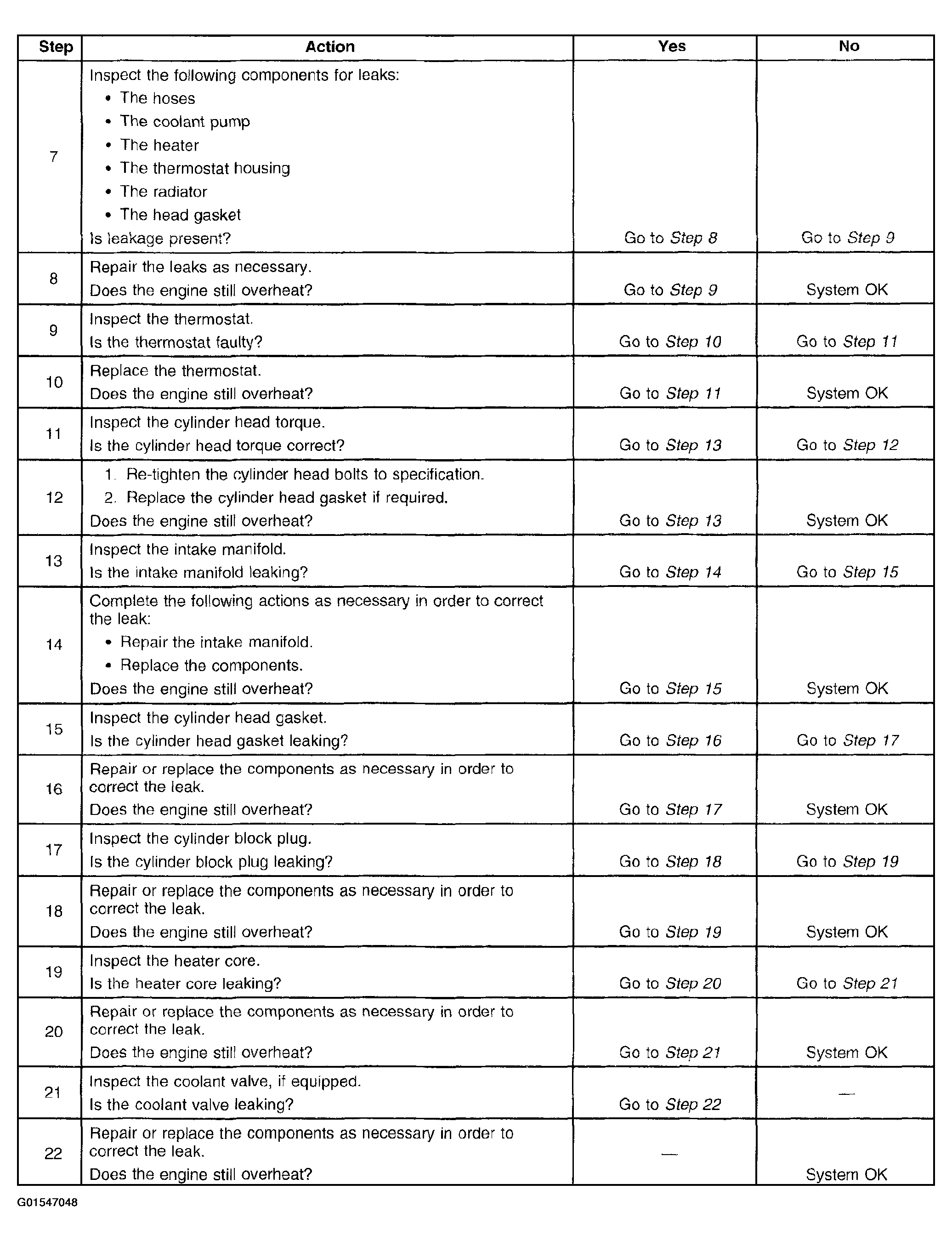

Fig 2: Engine Overheating Diagnosis (Steps 7-22)

G01547048

Courtesy of GENERAL MOTORS CORP.
