Connector Identification

Fig 1: Identifying Fan Motor Connector End View
G00355881Courtesy of GENERAL MOTORS CORP.

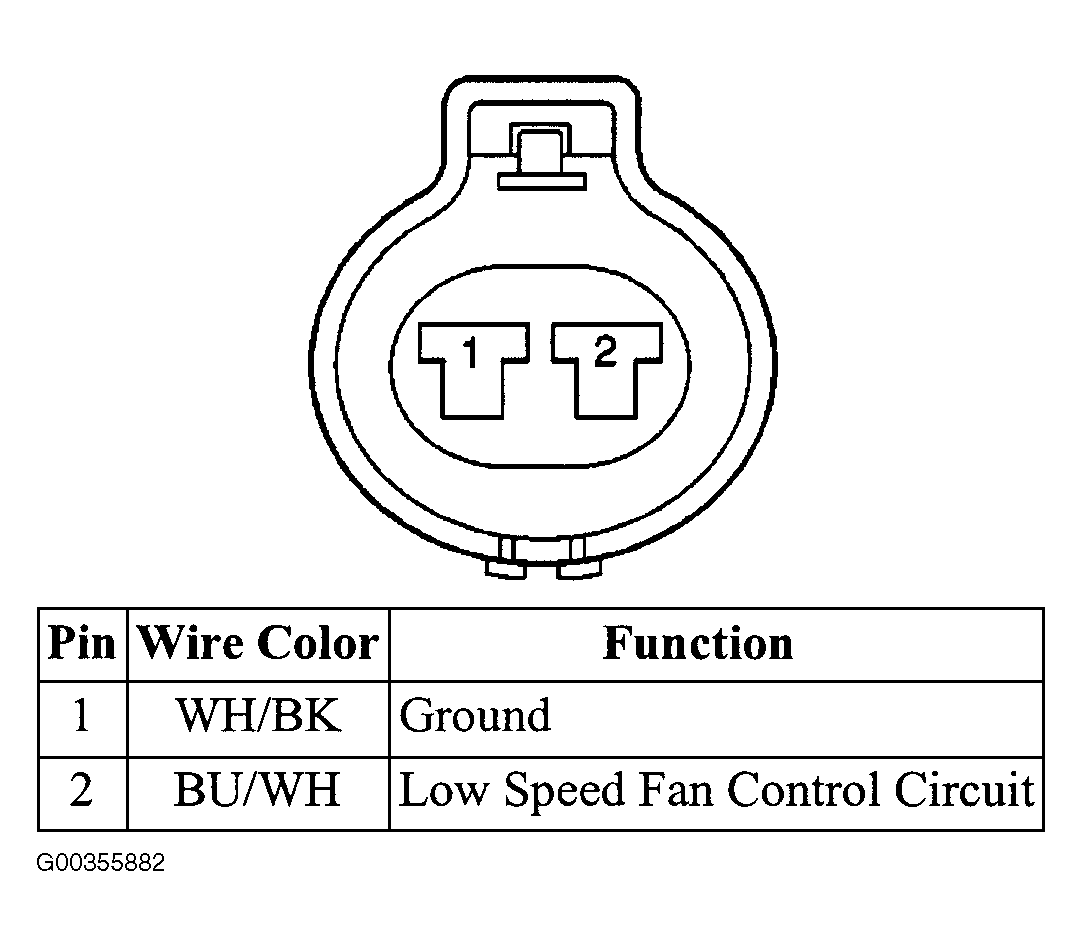

Fig 2: Identifying Fan Resistor Connector End View
G00355882Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Refrigerant Pressure Switch Connector End View
G00355883Courtesy of GENERAL MOTORS CORP.
