Removal Procedure

  1. Disconnect the horn electrical connector.
  2. Remove the following components from the vehicle:
    • The bolt
    • The bracket with the horn (2) attached

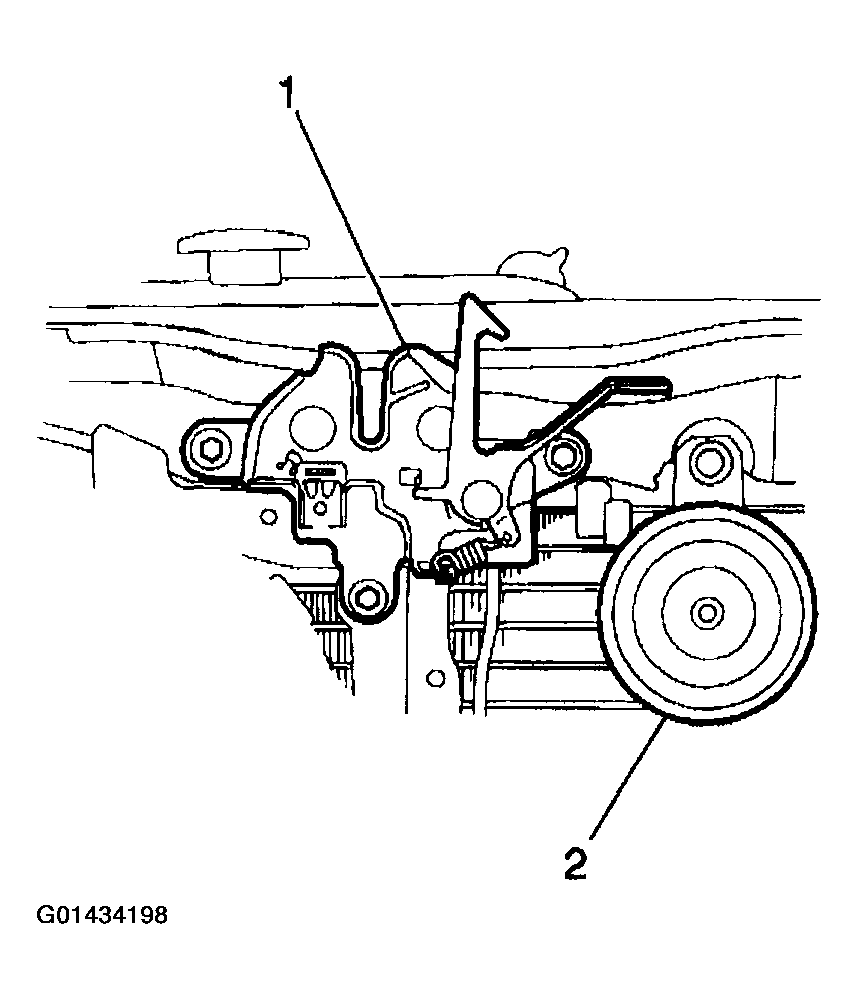

    Fig 1: Disconnecting Horn Electrical Connector
    G01434198Courtesy of GENERAL MOTORS CORP.
  3. Remove the following components from the bracket (1), if necessary:
    • The nut (2)
    • The horn (3)

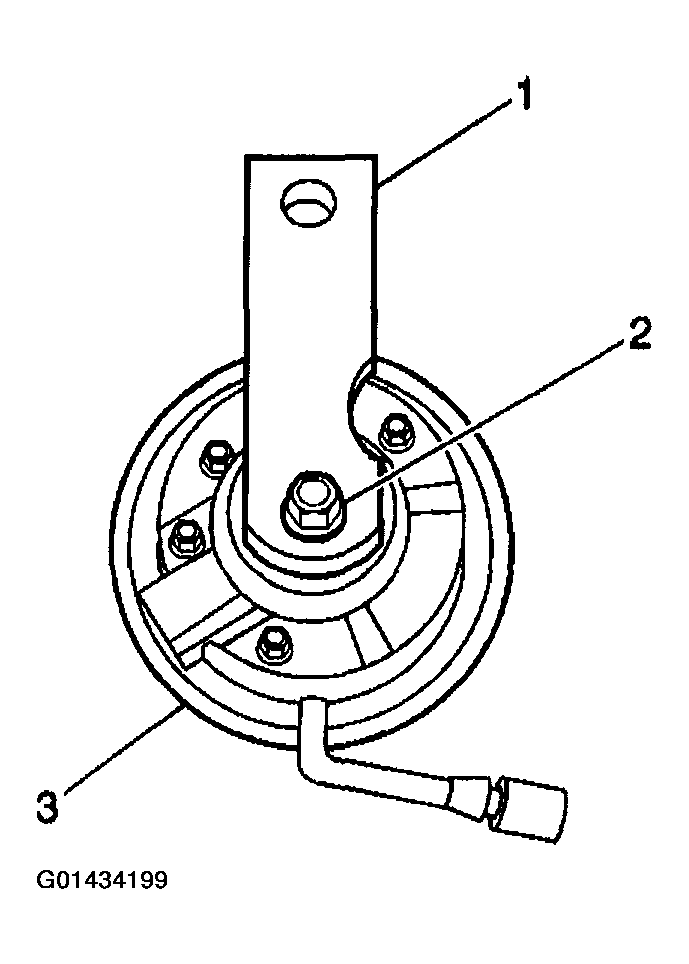

    Fig 2: Removing Nut And Horn From Bracket
    G01434199Courtesy of GENERAL MOTORS CORP.
