Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Using a flat bladed tool, disengage the 3 upper clips (1) and the 2 lower clips (4) on the accessory power receptacle switch bezel (3).
  3. Disconnect the electrical connector.
    Fig 1: Disconnecting Clips From Switch Bezel
    G01435738Courtesy of GENERAL MOTORS CORP.
  4. Disengage the 2 clips (1) on the accessory power receptacle switch (2).

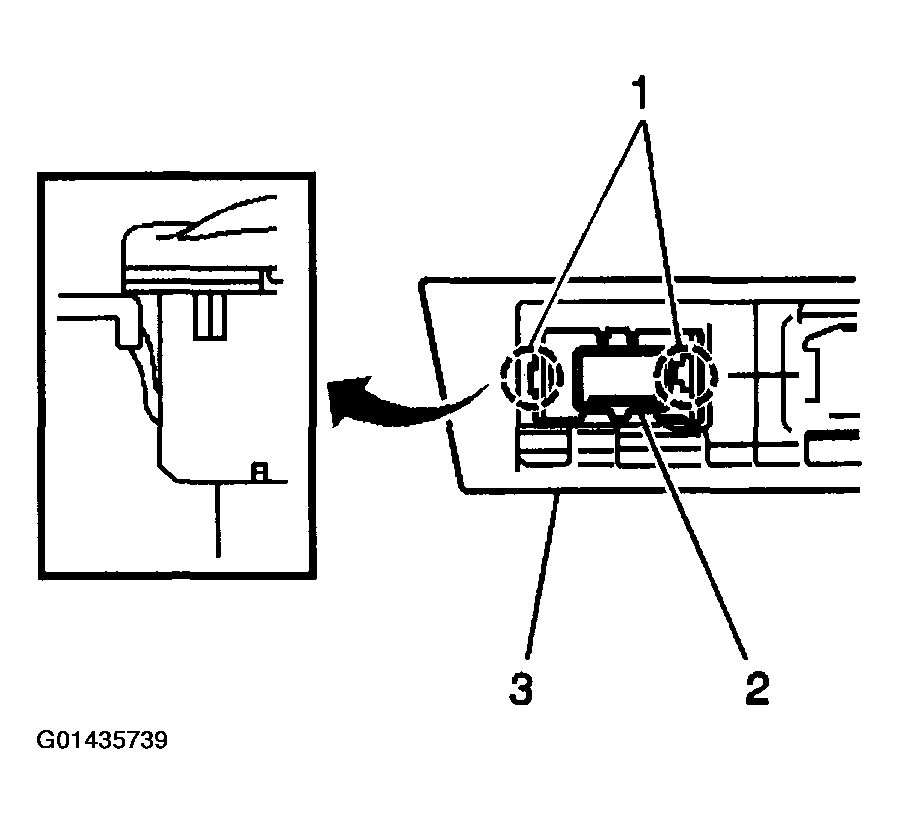

    Fig 2: Disengaging Clips On Accessory Power Receptacle Switch
    G01435739Courtesy of GENERAL MOTORS CORP.
  5. Remove the accessory power receptacle switch (5) from the bezel (3).

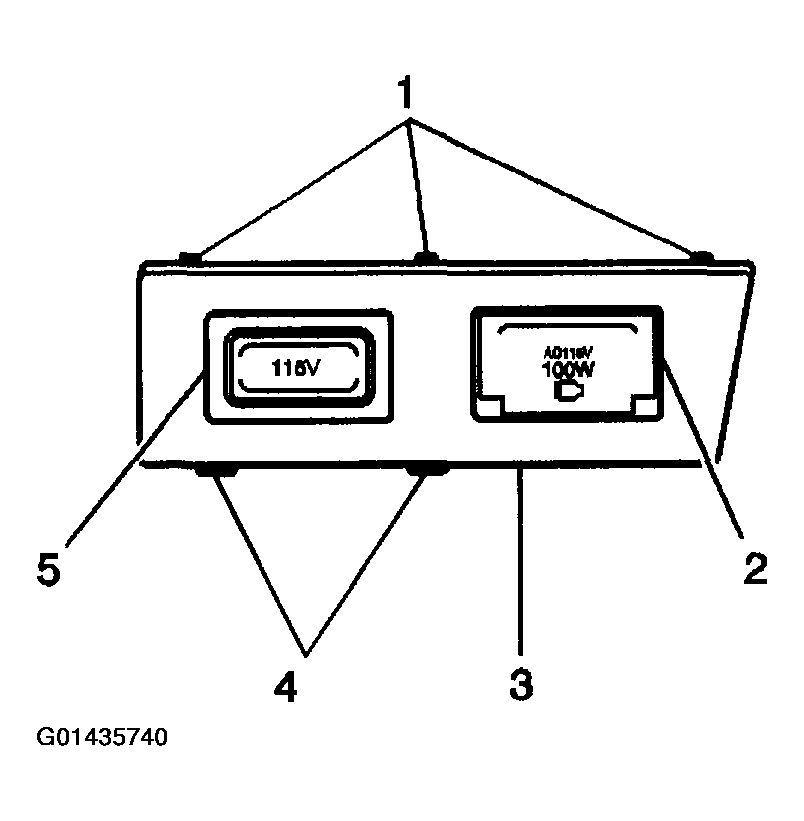

    Fig 3: Removing Accessory Power Receptacle Switch From Bezel
    G01435740Courtesy of GENERAL MOTORS CORP.
