Installation Procedure

  1. Install the accessory power receptacle switch (5) to the bezel (3), by pushing in until the tabs lock in.
  2. Connect the electrical connector.
  3. Gently install the accessory power receptacle switch bezel (3) by pressing into place until the upper tabs (1) and lower tabs (4) are fully seated.
  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.

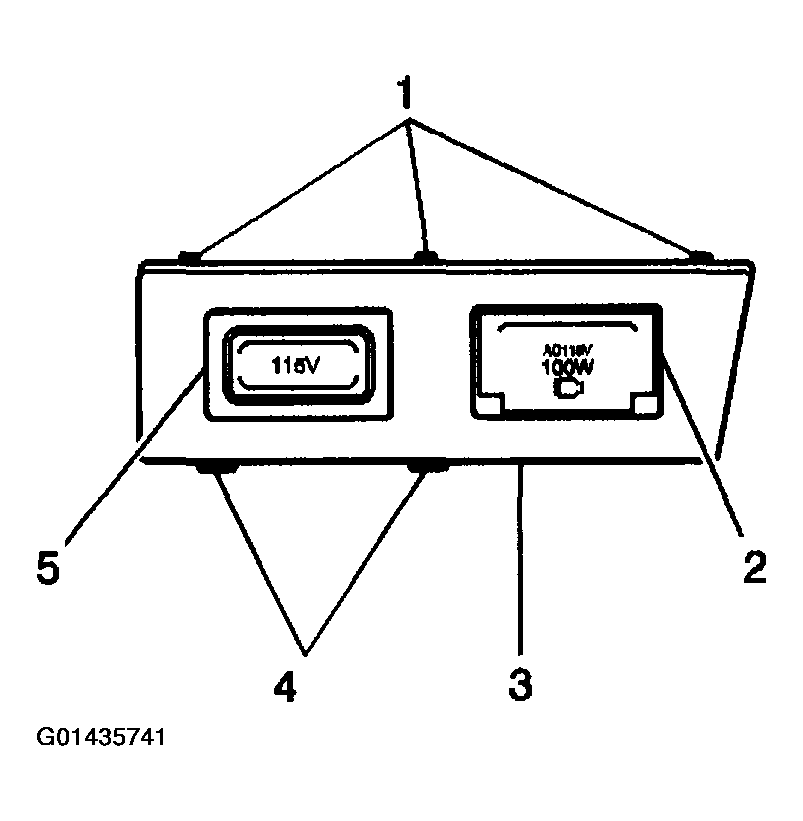

    Fig 1: Installing Accessory Power Receptacle Switch To Bezel
    G01435741Courtesy of GENERAL MOTORS CORP.
