Installation Procedure

  1. Install the accessory power receptacle (2) to the bezel (3), by pushing in until the tabs lock in.
  2. Connect the electrical connector.
  3. Gently install the accessory power receptacle trim bezel (3) by pressing into place until the upper tabs (1) and lower tabs (4) are fully seated.
  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.

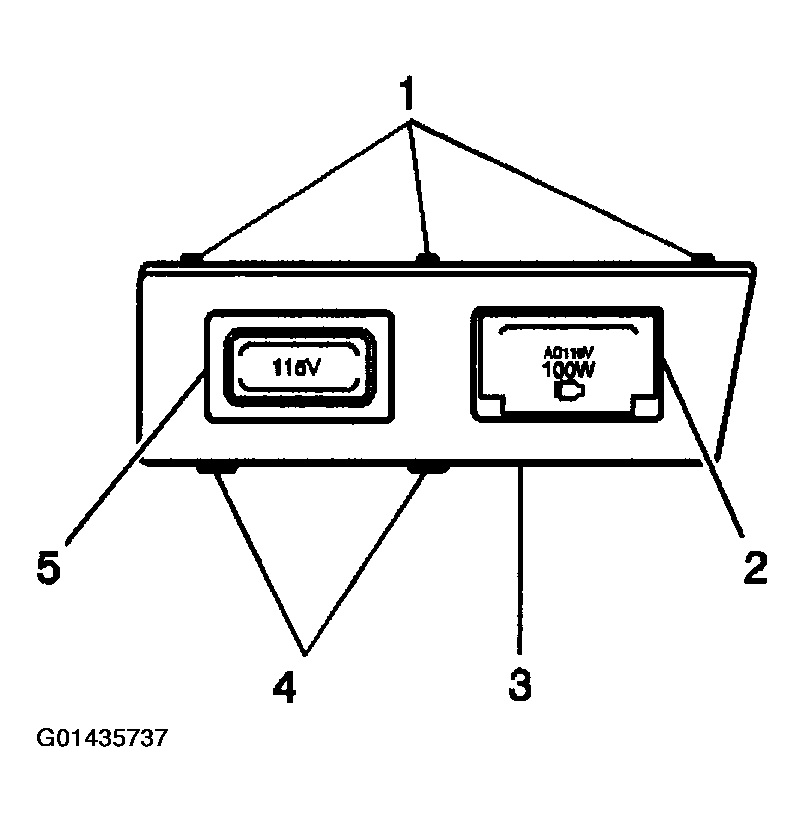

    Fig 1: Installing Accessory Power Receptacle To Bezel
    G01435737Courtesy of GENERAL MOTORS CORP.
