Fan Motor Connector End View
Fan Motor Connector End View

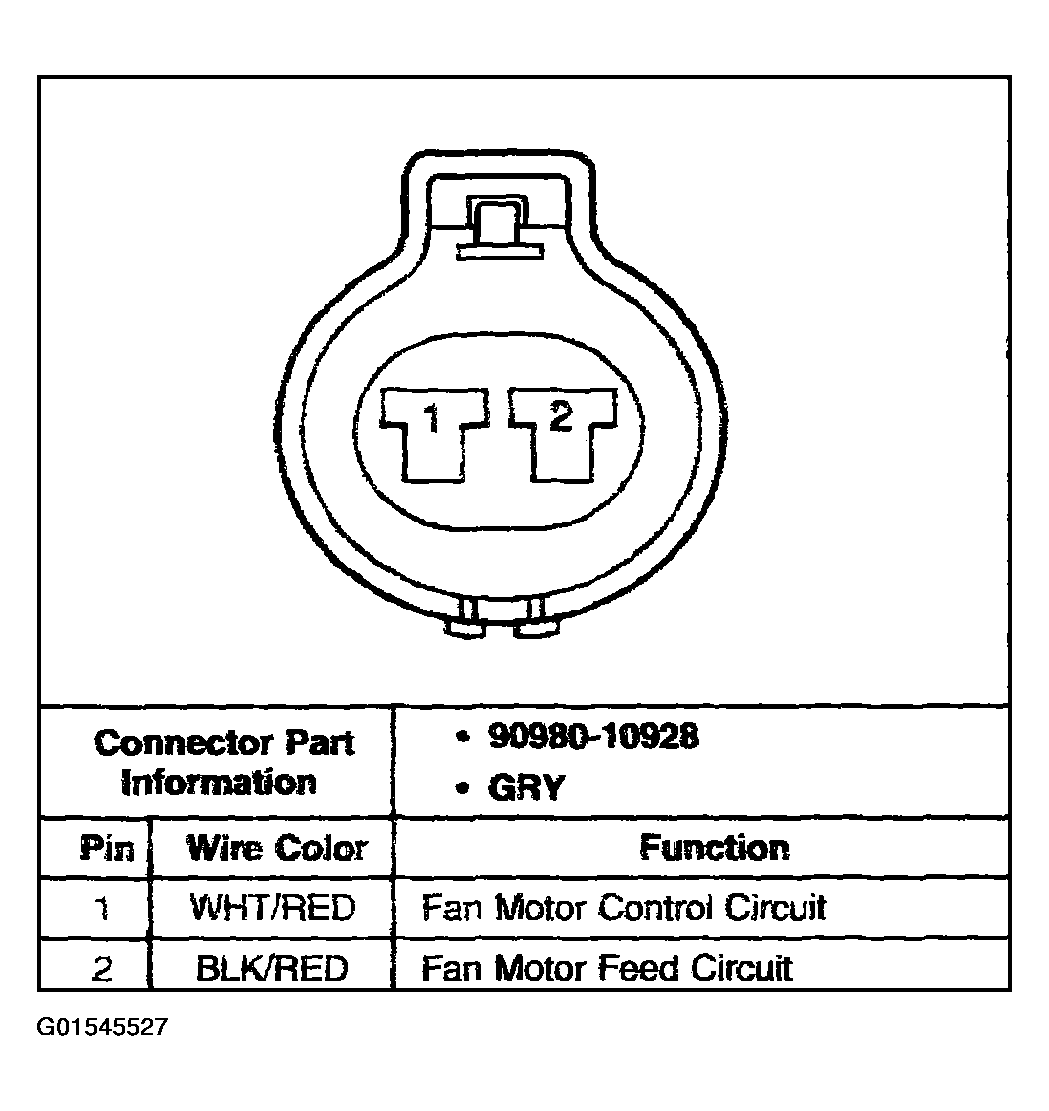

Fig 1: Fan Motor Connector End View
Courtesy of GENERAL MOTORS CORP.

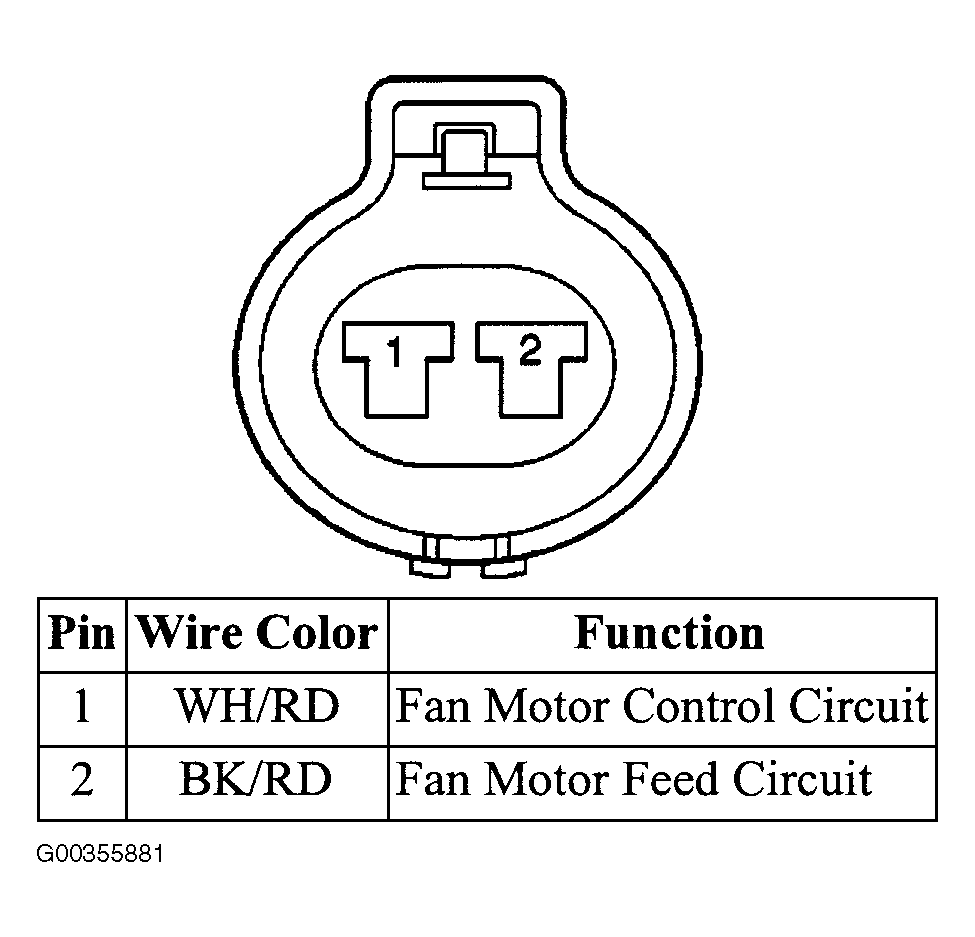

Fig 1: Fan Motor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
