Home >> Pontiac >> 2003 >> Vibe Base, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Anti-Theft Module Connector End View (1 Of 2)

Anti-Theft Module Connector End View (1 Of 2)

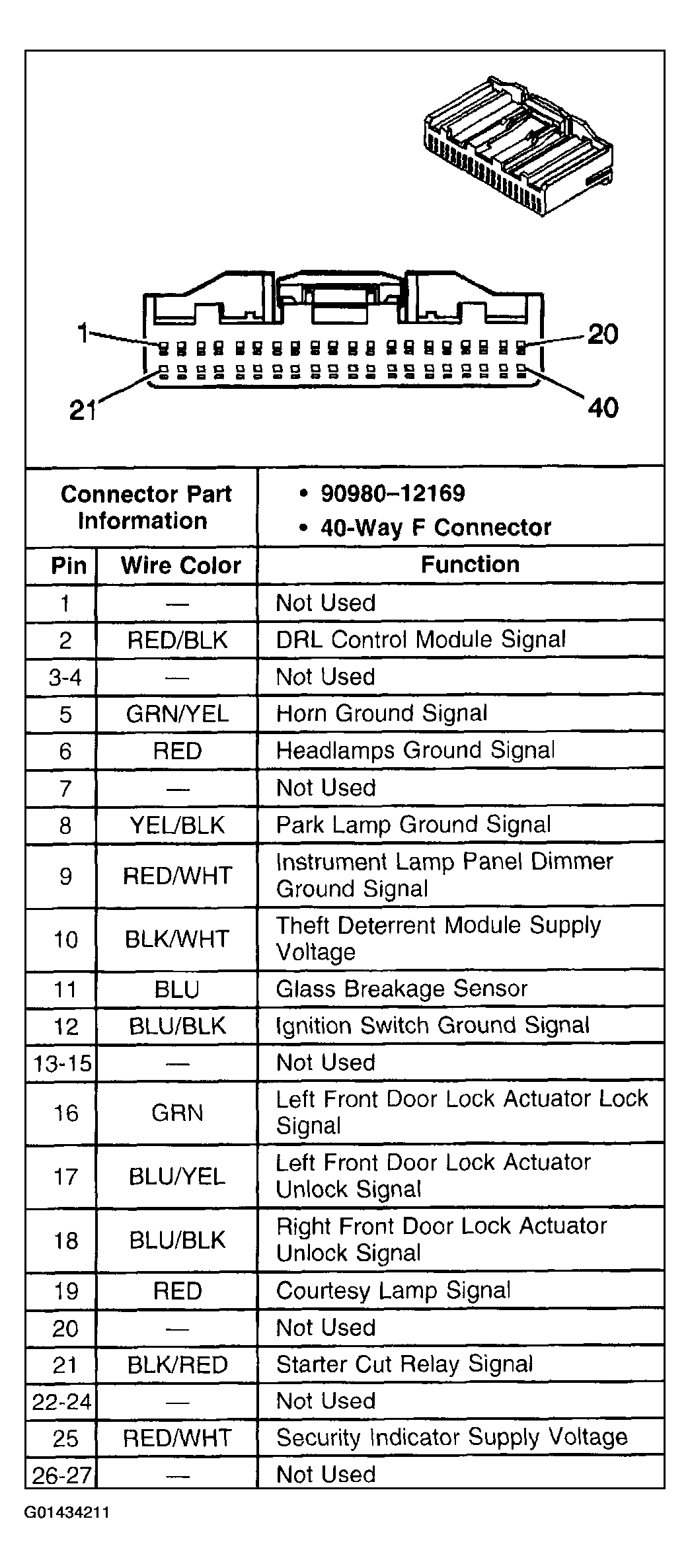

Fig 1: Anti-Theft Module Connector End View (1 Of 2)

G01434211

Courtesy of GENERAL MOTORS CORP.
