Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative (-) battery cable (3) from the negative (-) battery terminal.
  2. Disconnect the positive (+) battery cable (1) from the positive (+) battery terminal.
  3. Remove the bolt (4) and the battery hold down bracket (2).
  4. Remove the battery (5) from the vehicle.

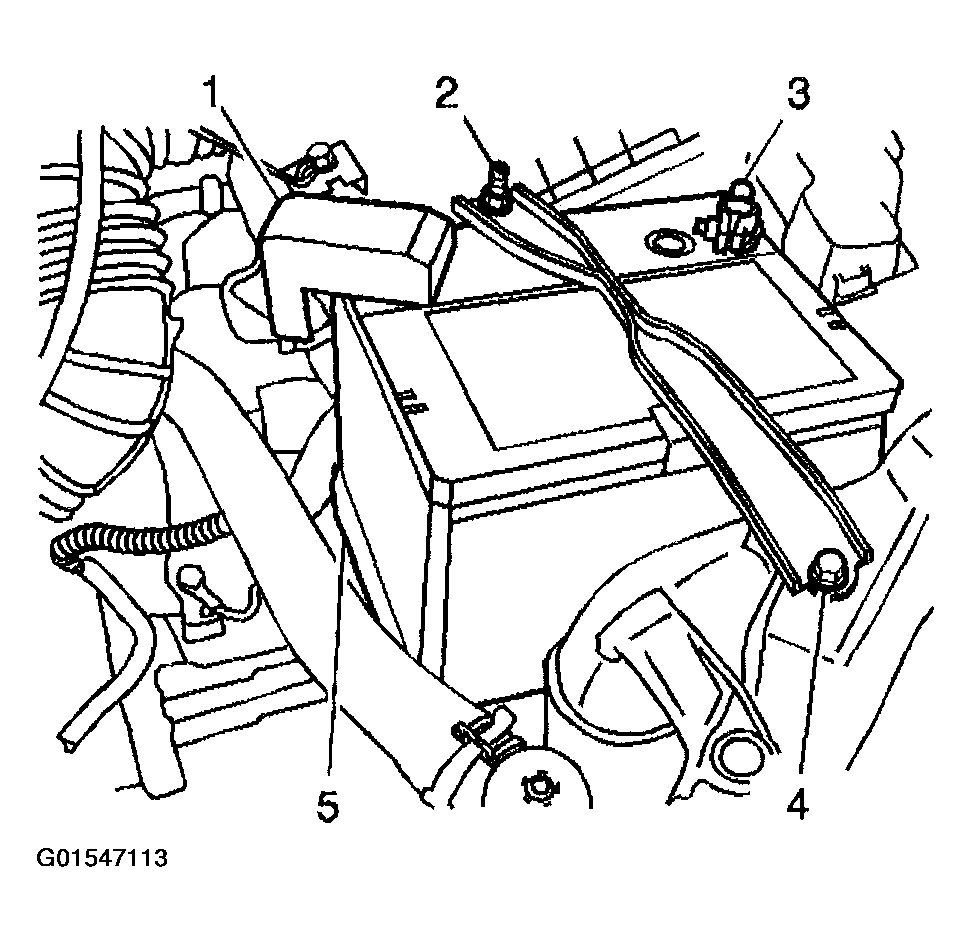

Fig 1: Removing Battery (5) From Vehicle
G01547113Courtesy of GENERAL MOTORS CORP.
