Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the wheel speed sensor to rear wheel hub.

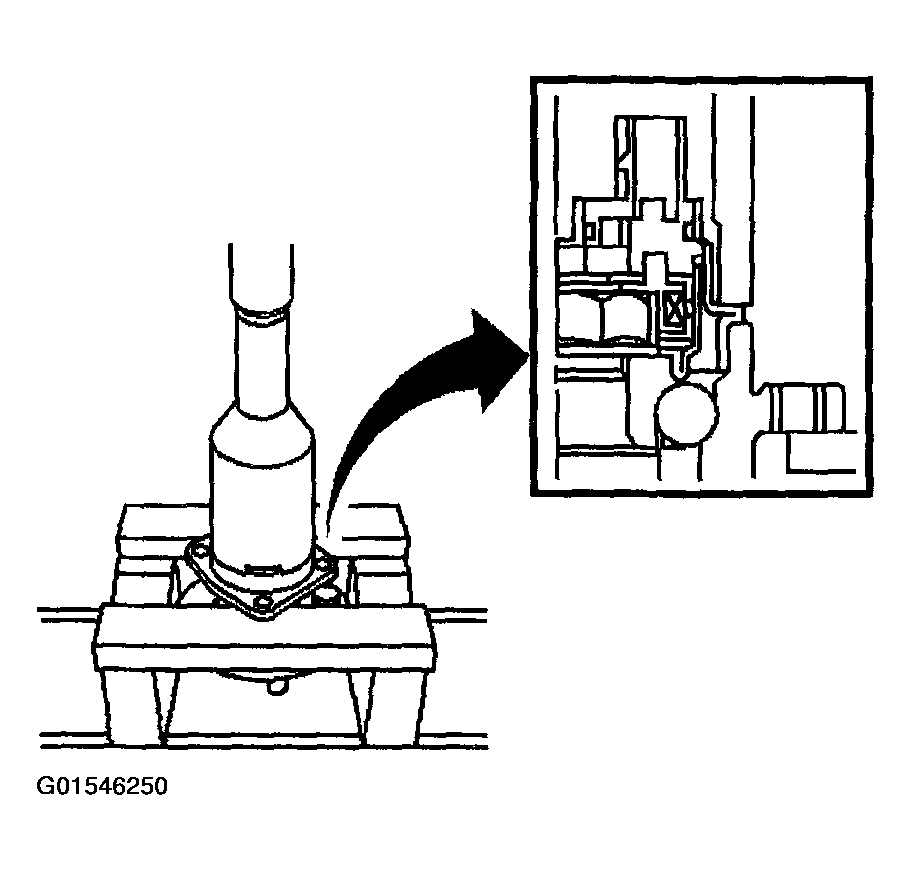

    Fig 1: Installing Wheel Speed Sensor
    G01546250Courtesy of GENERAL MOTORS CORP.
  2. Install the rear axle hub and bearing assembly. Refer to WHEEL BEARING/HUB REPLACEMENT - REAR (FWD) or WHEEL BEARING/HUB REPLACEMENT - REAR (AWD) in Rear Suspension.
  3. Connect the wheel speed sensor electrical connector (6).

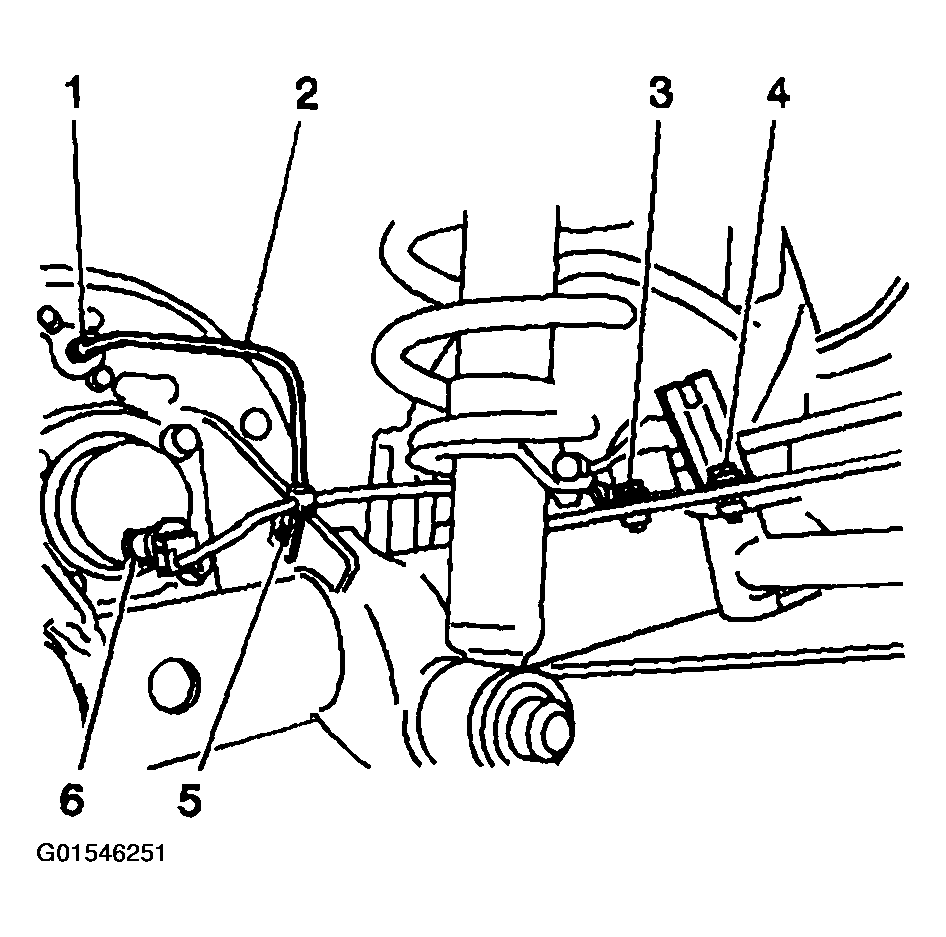

    Fig 2: Connecting Wheel Speed Sensor Electrical Connector
    G01546251Courtesy of GENERAL MOTORS CORP.
  4. Perform DIAGNOSTIC SYSTEM CHECK - ABS  .
