Test Description

The number(s) below refer to the step number(s) on the diagnostic table.

  1. 3. Determines if the malfunction is caused by an internal EBCM malfunction.

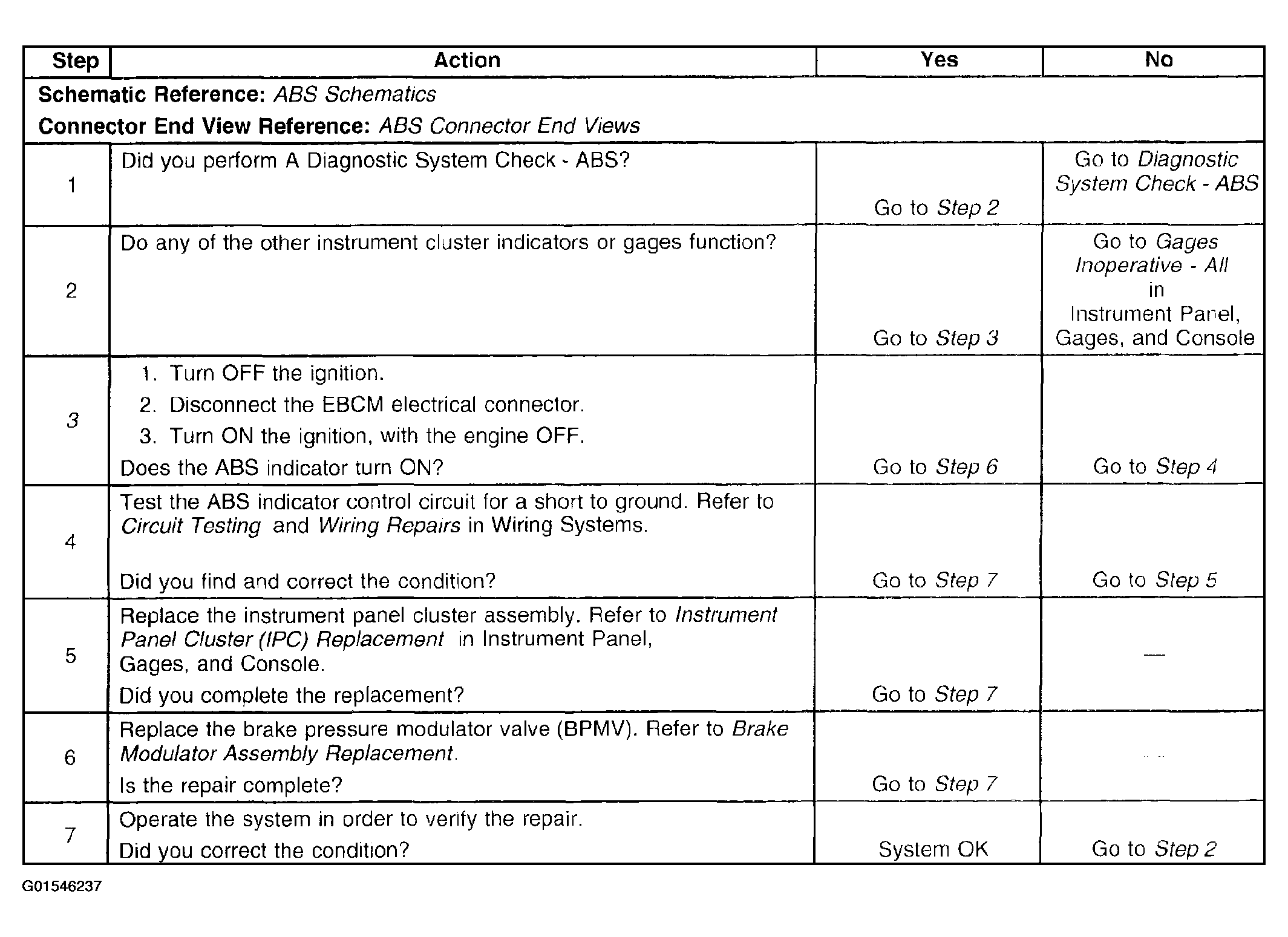

Fig 1: Diagnostic System Check - ABS Indicator Inoperative
G01546237Courtesy of GENERAL MOTORS CORP.
