Home >> Pontiac >> 2003 >> Vibe Base, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Window Regulator Replacement - Rear Door >> Removal Procedure

Removal Procedure

  1. Remove the rear door window. Refer to WINDOW REPLACEMENT - REAR DOOR  .
  2. Remove the following components from the rear door:
    • The 4 retaining bolts (4)
    • The rear side door window regulator (3)

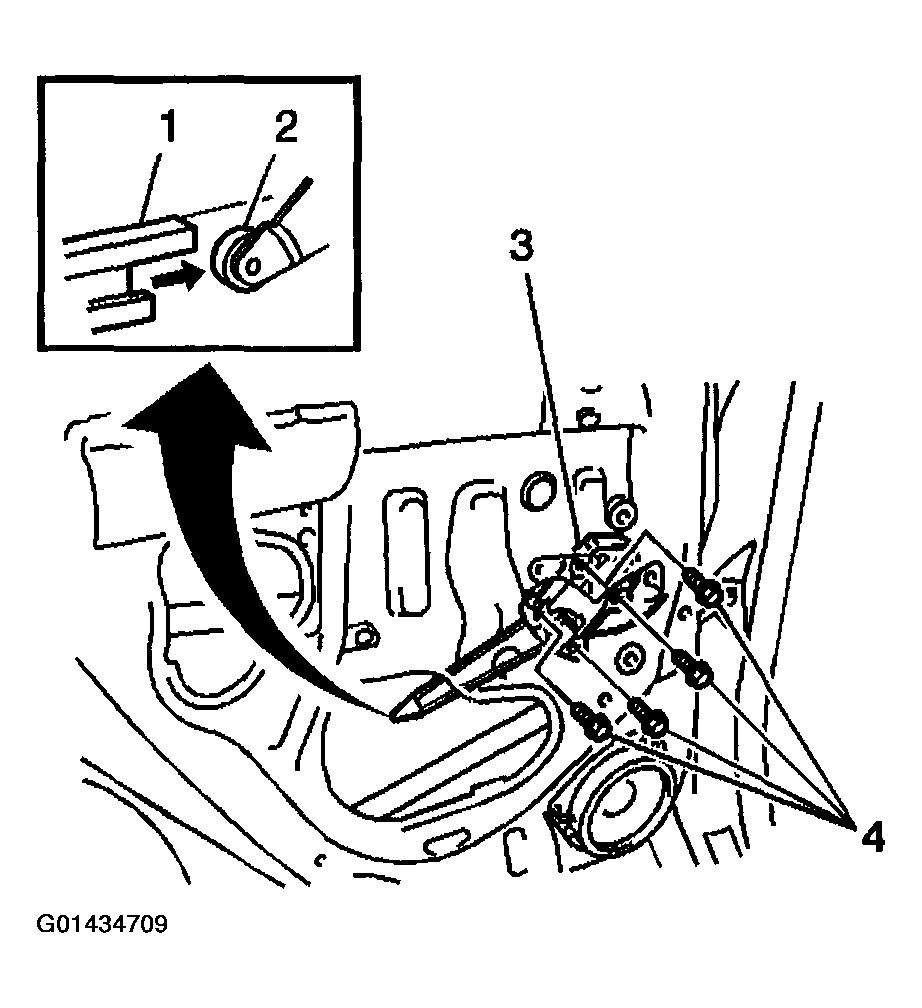

      Fig 1: Removing Rear Door Window Regulator Bolts
      G01434709Courtesy of GENERAL MOTORS CORP.
