Removal Procedure

  1. Open the door.
  2. Remove the bolt (3) that retains the front door check link (2) to the door jamb.

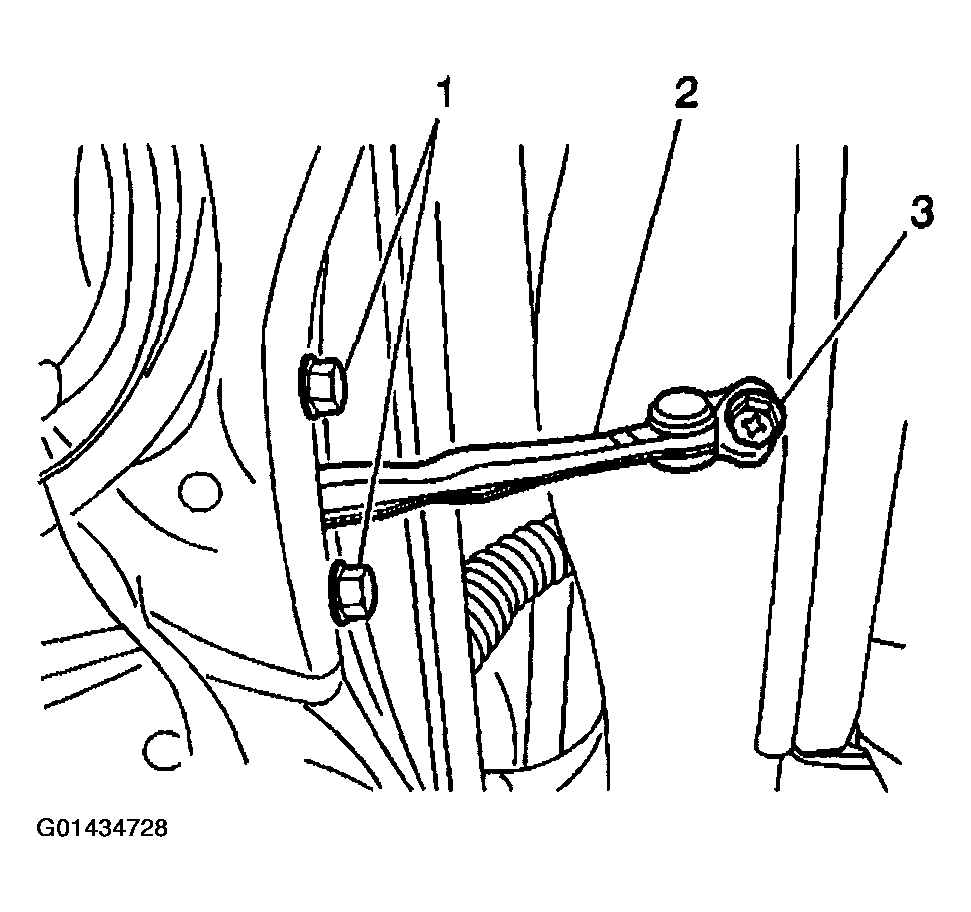

    Fig 1: Removing Bolt Retaining Front Door Check Link To Door Jamb
    G01434728Courtesy of GENERAL MOTORS CORP.
  3. Remove the following components from the door (3):
    • The front door weatherstrip (2)
    • The plastic retainers (1)

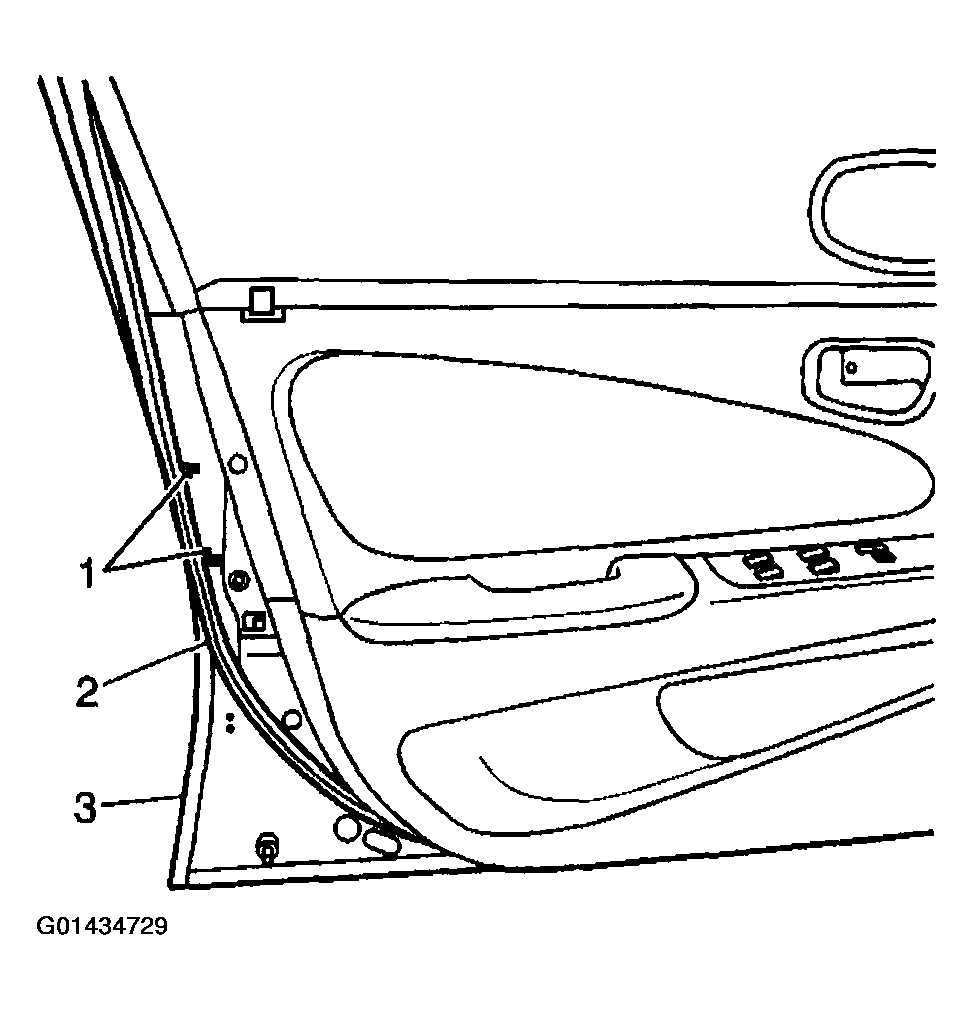

Fig 2: Removing Front Door Weatherstrip And Plastic Retainers
G01434729Courtesy of GENERAL MOTORS CORP.
