Removal Procedure

  1. Lower the window.
  2. Remove the front side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  3. Remove the water deflector (3) from the front door (4).

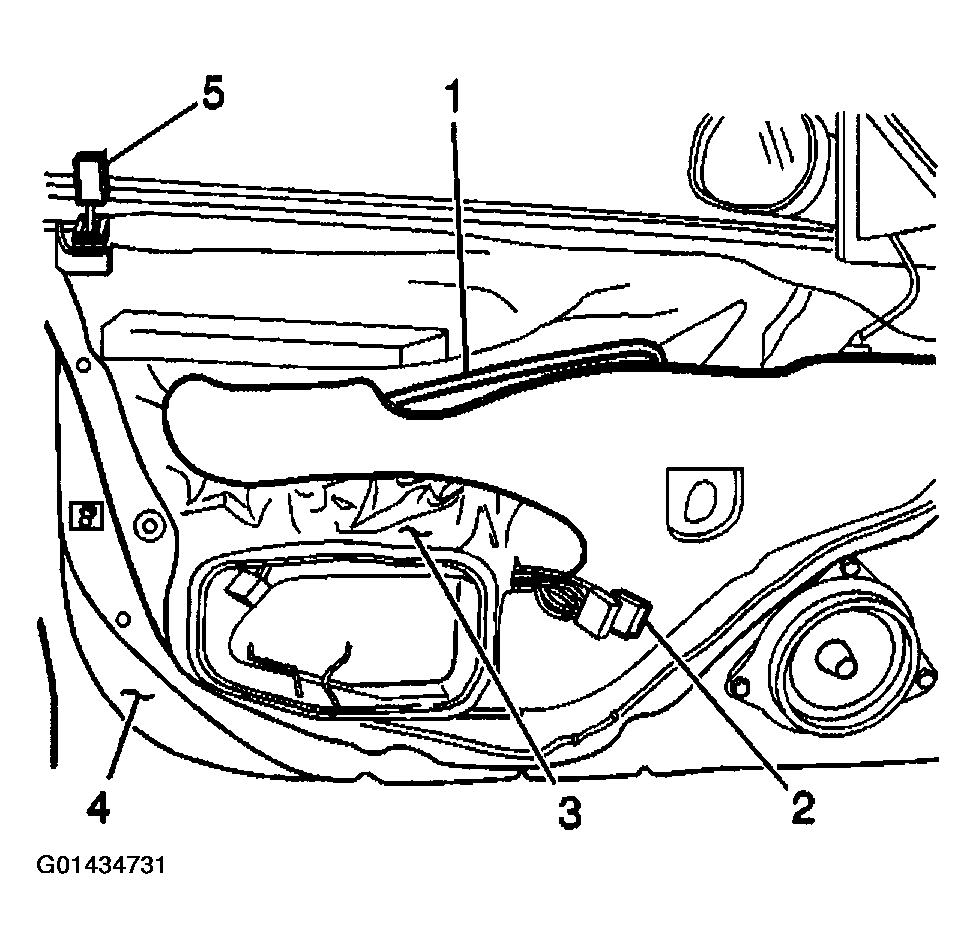

    Fig 1: Removing Water Deflector From Front Door
    G01434731Courtesy of GENERAL MOTORS CORP.
  4. Unclip and remove the inner mirror garnish (2) from the door.

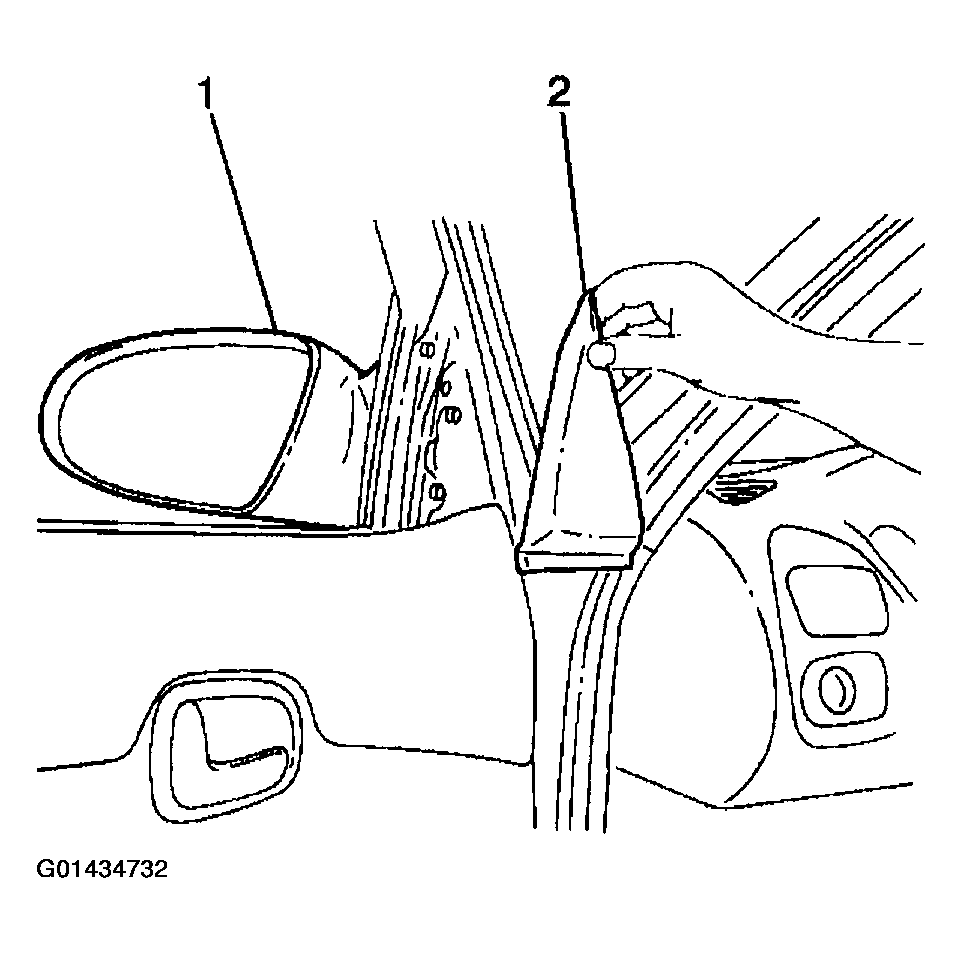

    Fig 2: Un-clipping And Removing Inner Mirror Garnish From Door
    G01434732Courtesy of GENERAL MOTORS CORP.
  5. Remove the window run channel weatherstrip (2) from the guide channel.

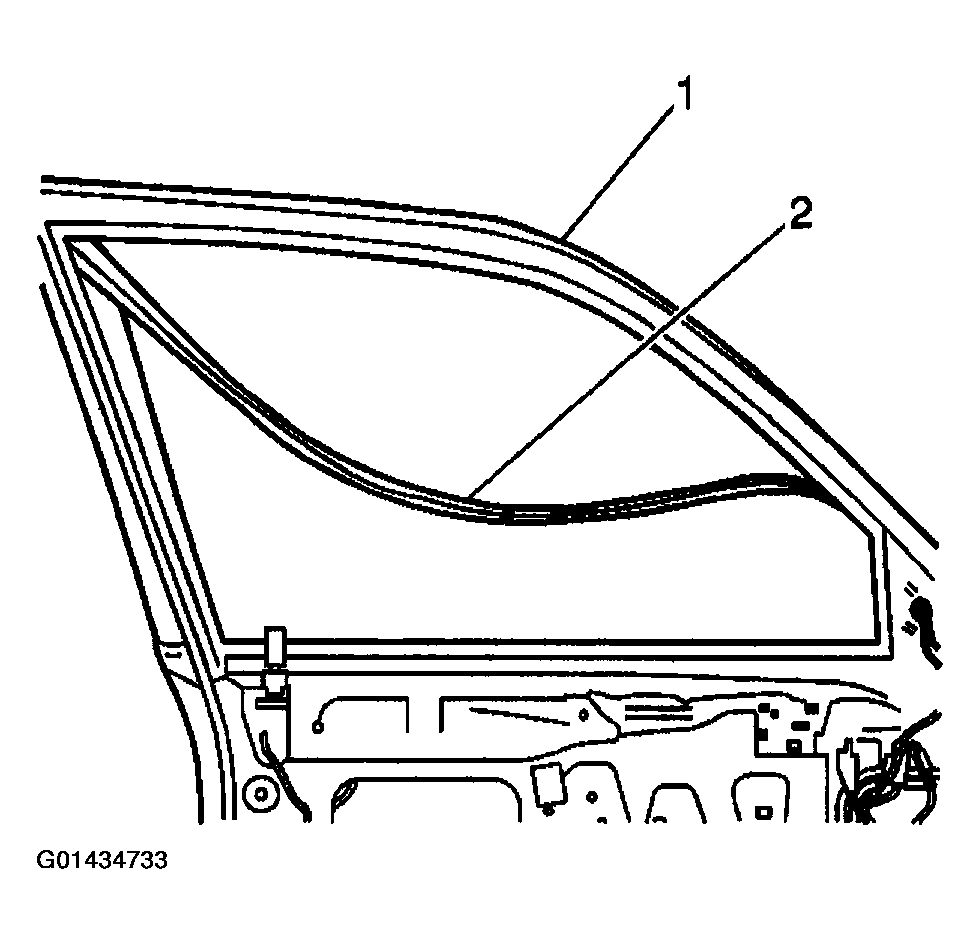

    Fig 3: Removing Window Run Channel Weatherstrip From guide channel
    G01434733Courtesy of GENERAL MOTORS CORP.
