Removal Procedure

  1. Remove the front side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the 6 screws and the trim bracket.
  3. Starting at the top, pull downward on the front side door water deflector in order to remove from the door edges.
  4. Un-route any electrical connectors and the front side door inside handle cable from the water deflector, while removing the deflector from the vehicle.

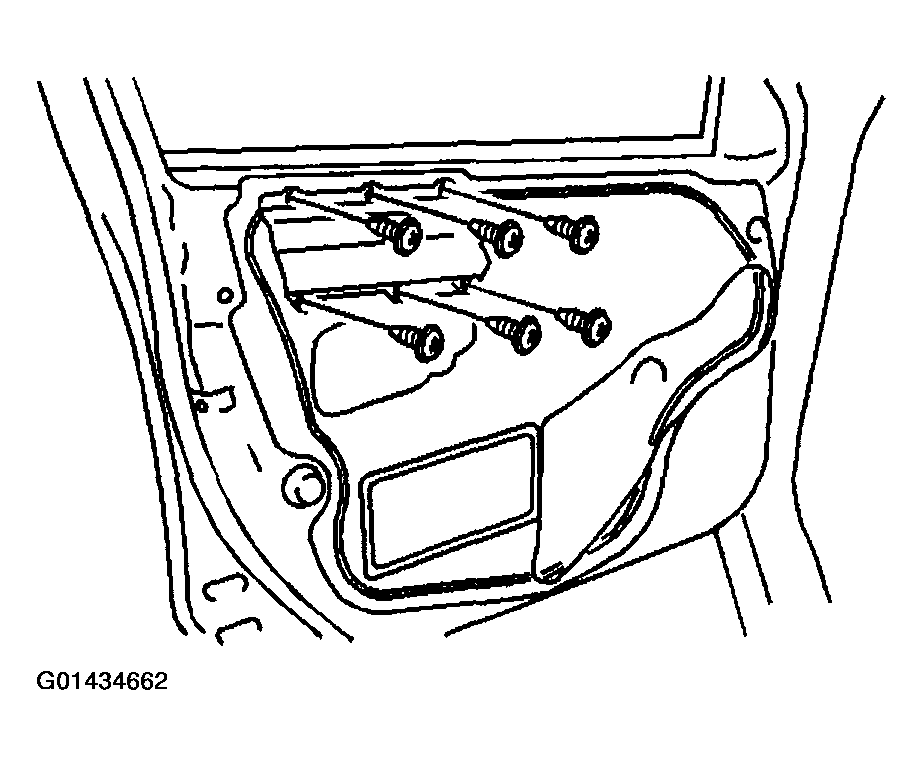

    Fig 1: Removing Trim Bracket Screws
    G01434662Courtesy of GENERAL MOTORS CORP.
