Removal Procedure

  1. Using a taped flat bladed tool, gently pry the front side door accessory switch mounting plate (2) from the front side door trim (1).
    Fig 1: Prying Front Side Door Accessory Switch Mounting Plate From Front Side Door Trim
    G01434629Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the front side door power window switch electrical connector (2).

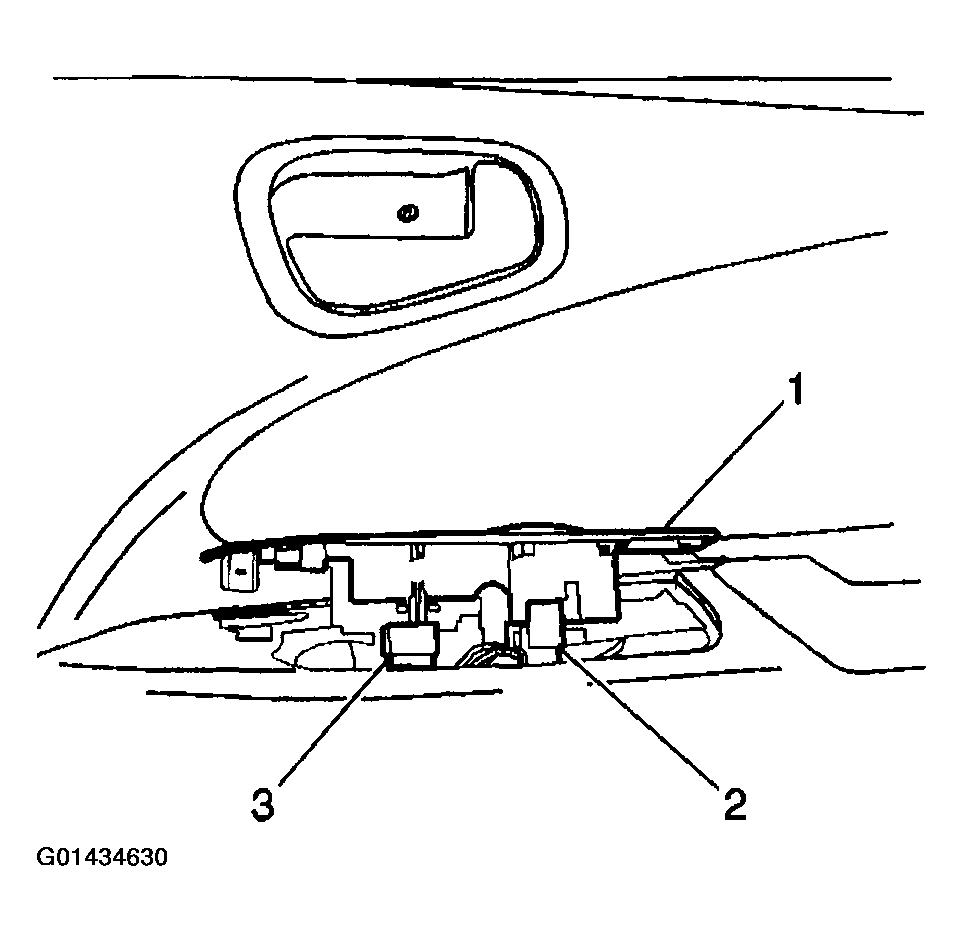

    Fig 2: Disconnecting Front Side Door Power Window Switch Electrical Connector
    G01434630Courtesy of GENERAL MOTORS CORP.
  3. Remove the front side door power window switch (2) from the mounting plate (3) by releasing the tabs (4).

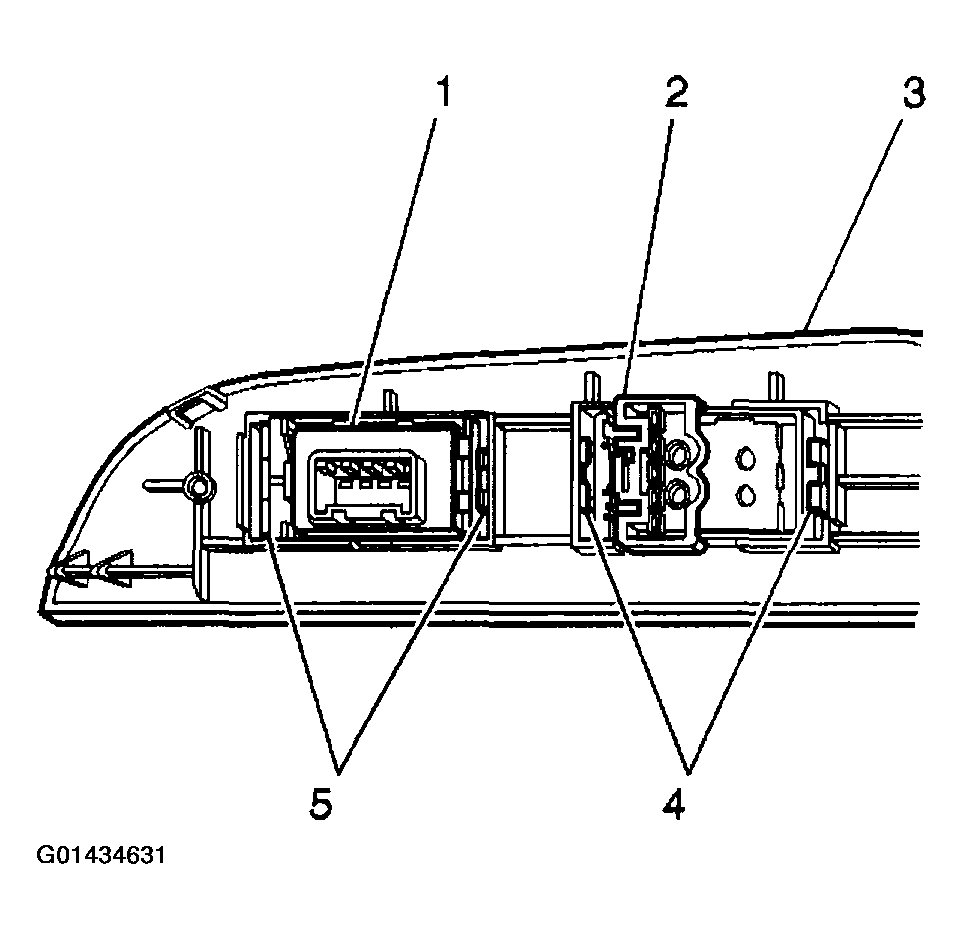

    Fig 3: Removing Front Side Door Power Window Switch From Mounting Plate
    G01434631Courtesy of GENERAL MOTORS CORP.
