Removal Procedure

  1. Using a taped flat bladed tool, gently pry the rear side door window switch (2) from the rear side door trim (1).
  2. Disconnect the rear side door window switch electrical connector.

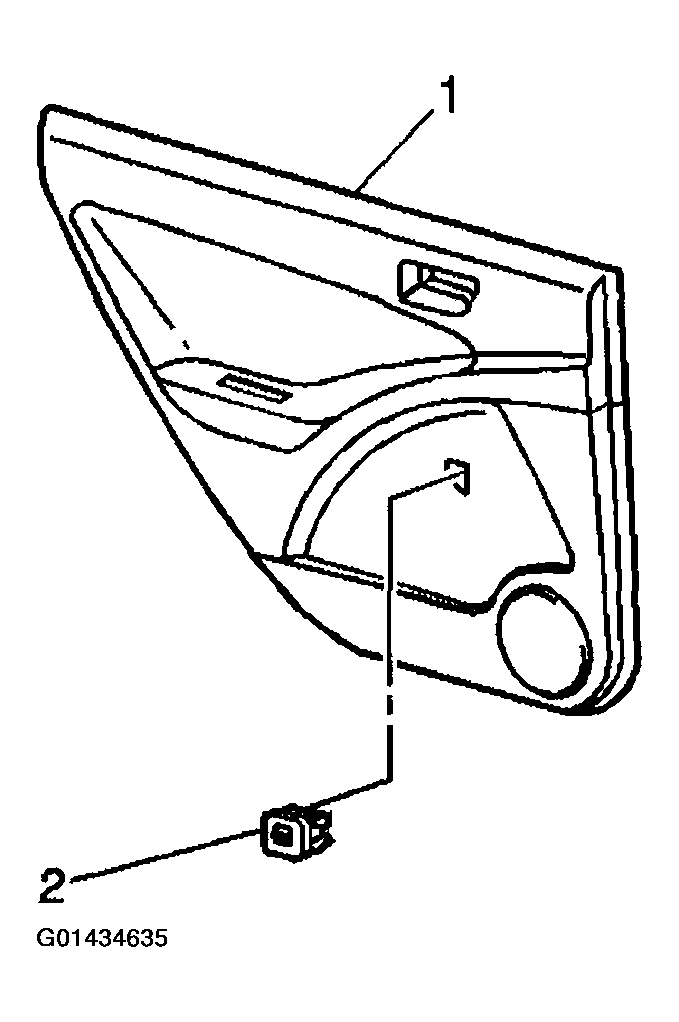

    Fig 1: Prying Rear Side Door Window Switch From Rear Side Door Trim
    G01434635Courtesy of GENERAL MOTORS CORP.
