Removal Procedure

  1. The driver side power door lock switch is part of the power accessory switch panel, to replace. Refer to POWER ACCESSORY SWITCH PANEL REPLACEMENT  .
  2. If removing the passenger side power lock switch, use a taped flat bladed tool, gently pry the front side door accessory switch mounting plate (2) from the front side door trim (1).
    Fig 1: Prying Front Side Door Accessory Switch Mounting Plate From Front Side Door Trim
    G01434637Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the front side door lock switch electrical connector (3).
    Fig 2: Disconnecting Front Side Door Lock Switch Electrical Connector
    G01434638Courtesy of GENERAL MOTORS CORP.
  4. Remove the front side door lock switch (1) from the mounting plate (3) by releasing the tabs (5).

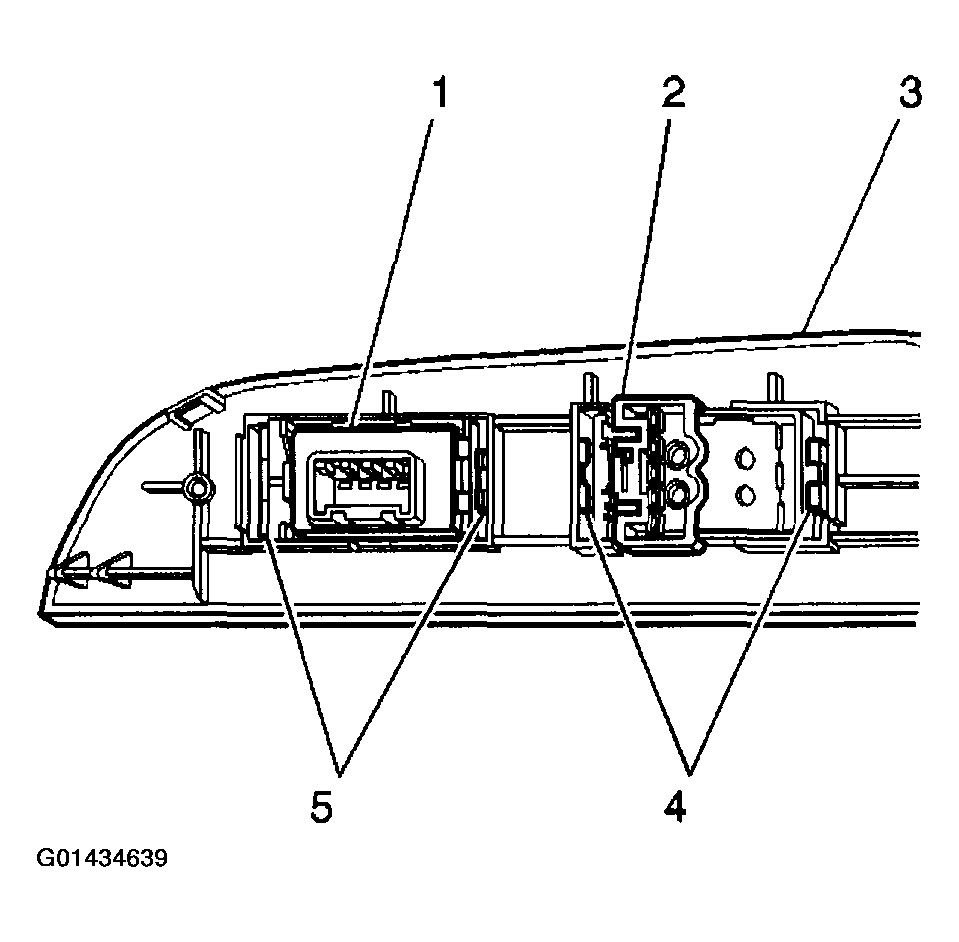

    Fig 3: Removing Front Side Door Lock Switch From Mounting Plate
    G01434639Courtesy of GENERAL MOTORS CORP.
