Removal Procedure

  1. Remove the front side door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  2. Remove the hole plug (2).
  3. Remove the following components from the outside door handle (3):
    • The torx screw
    • The door lock cylinder (1)

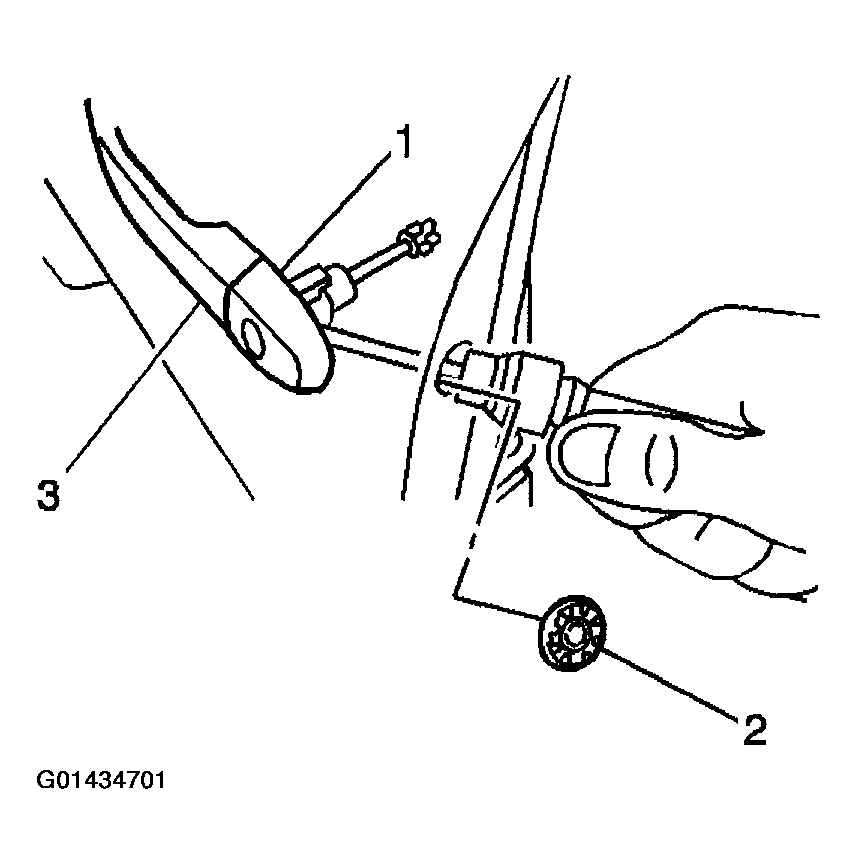

Fig 1: Removing Hole Plug And Door Lock Cylinder Torx Screw
G01434701Courtesy of GENERAL MOTORS CORP.
