Removal Procedure

  1. Remove the left fender, if necessary.
  2. Remove the right fender, if necessary.

    Important:  Remove only one hinge at a time in order to keep the door properly aligned.

  3. Remove the 2 door to hinge bolts (2 or 4).
  4. Remove the 2 hinge to door jamb bolts (1 or 3).
  5. Remove the upper or lower hinge (6 or 5) from the vehicle.

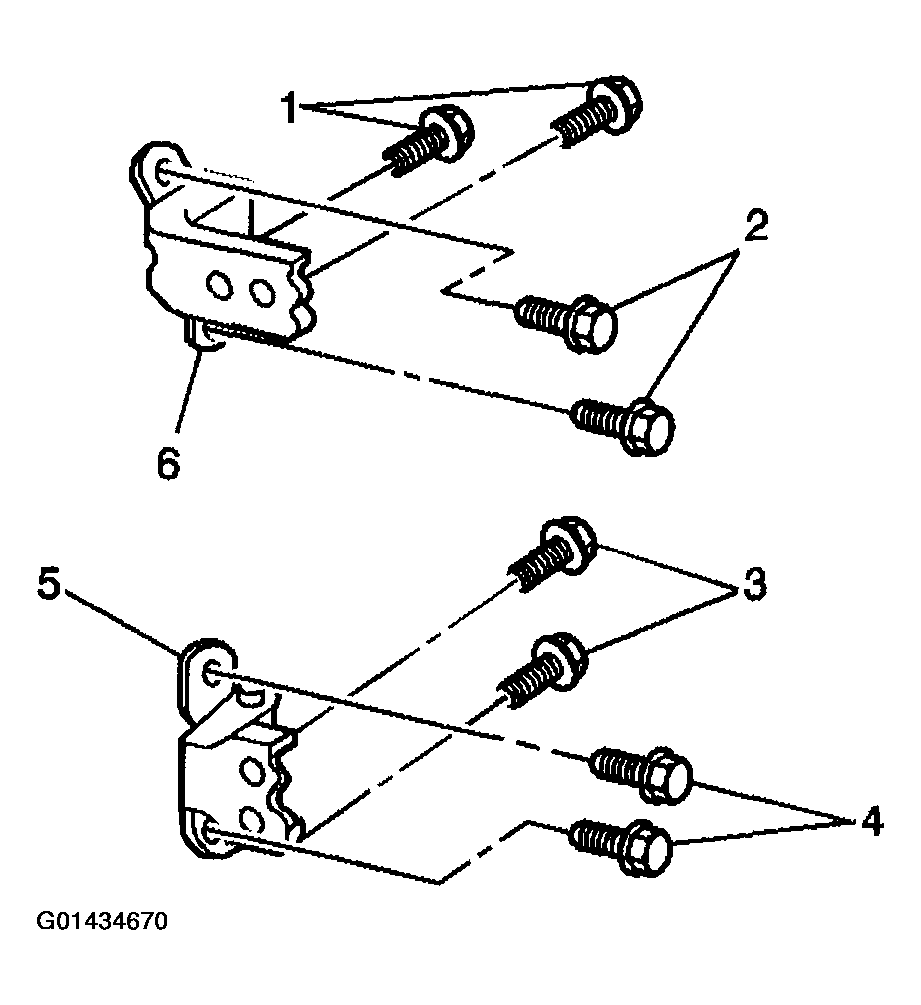

    Fig 1: Removing Door To Hinge Bolts And Hinge To Door Jamb Bolts - Rear Door
    G01434670Courtesy of GENERAL MOTORS CORP.
