Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR
  2. Slide the handle (1) rearward and pull it away from the front side door.
  3. Remove the inside handle cables (3) from the inside door handle (1).
  4. Remove the handle (1) from the vehicle.

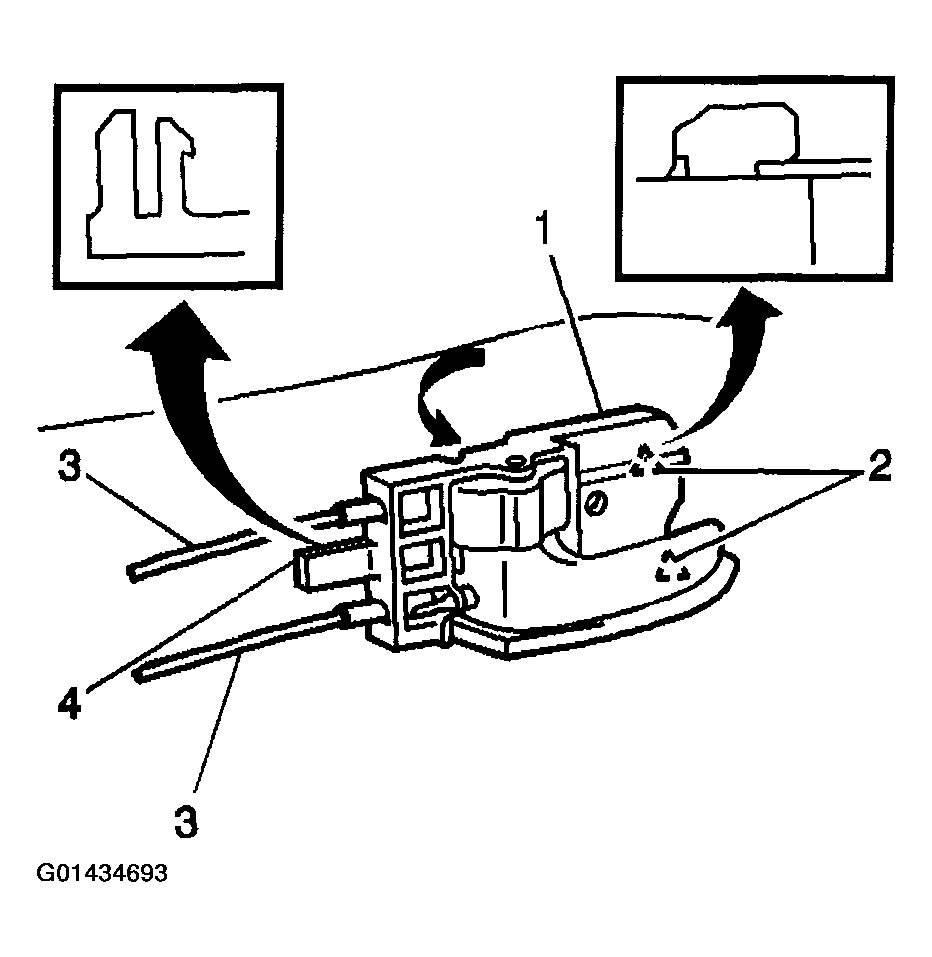

    Fig 1: Sliding Handle Rearward And Pulling It Away From Front Side Door
    G01434693Courtesy of GENERAL MOTORS CORP.
