Power Windows Inoperative - All
Power Windows Inoperative - All

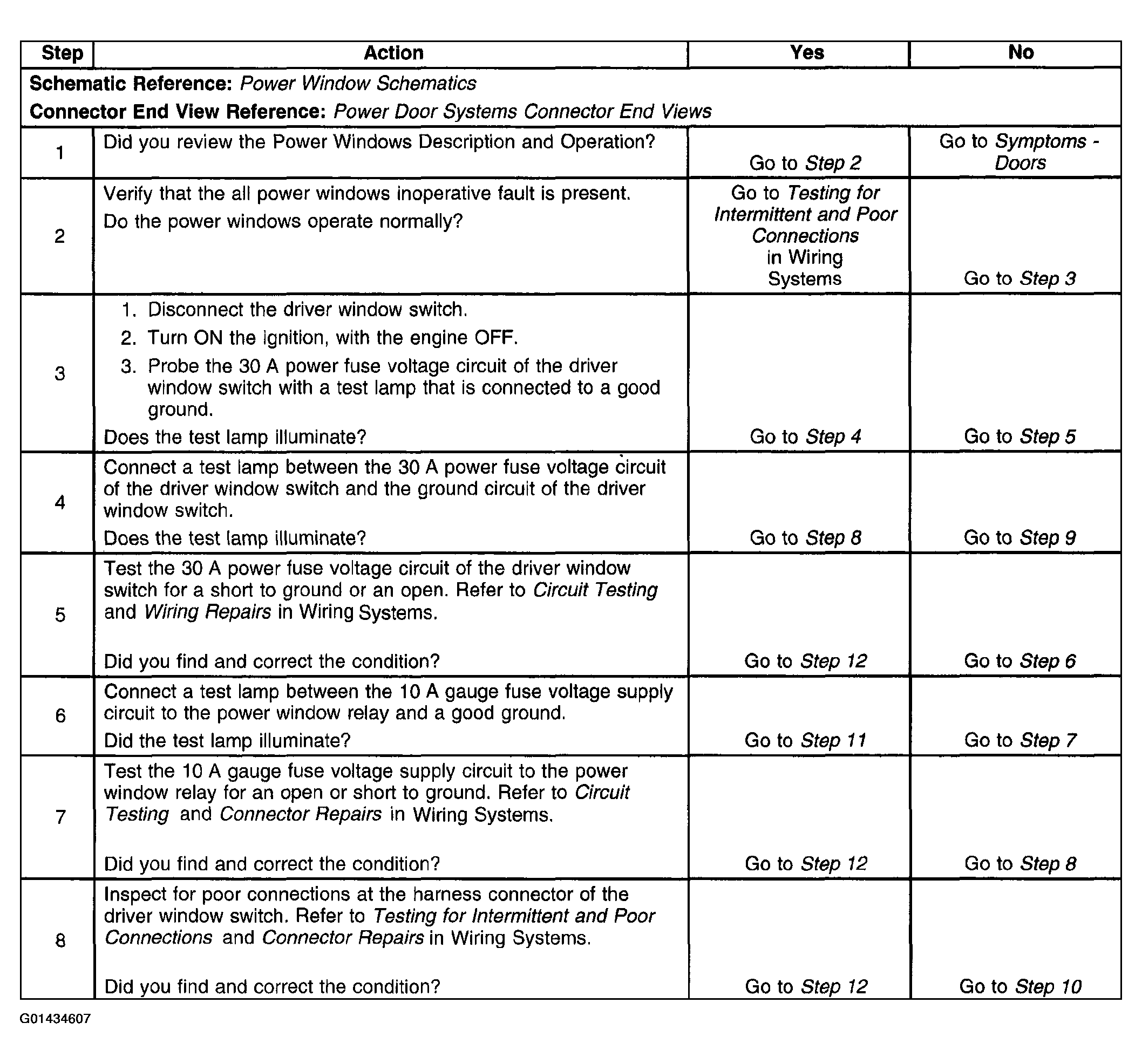

Fig 1: Power Windows Inoperative Symptom Tests - All (Step 1 To 8)
Courtesy of GENERAL MOTORS CORP.

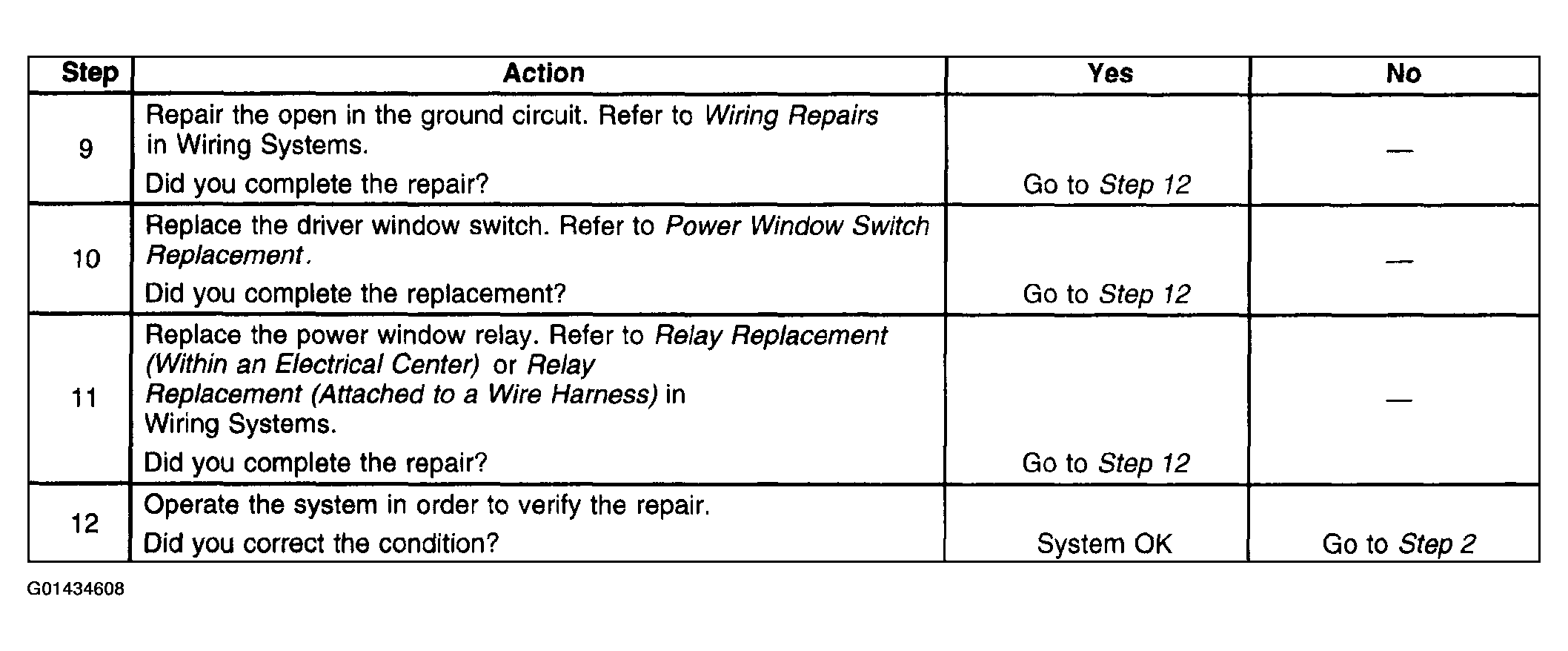

Fig 2: Power Windows Inoperative Symptom Tests - All (Step 9 To 12)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
