Installation Procedure

  1. Install trim panel (1) to the rear seat back, and slide upward until plastic hooks (2) engage.
  2. Press firmly on lower trim panel (1) until lower plastic retainers (3) fasten.

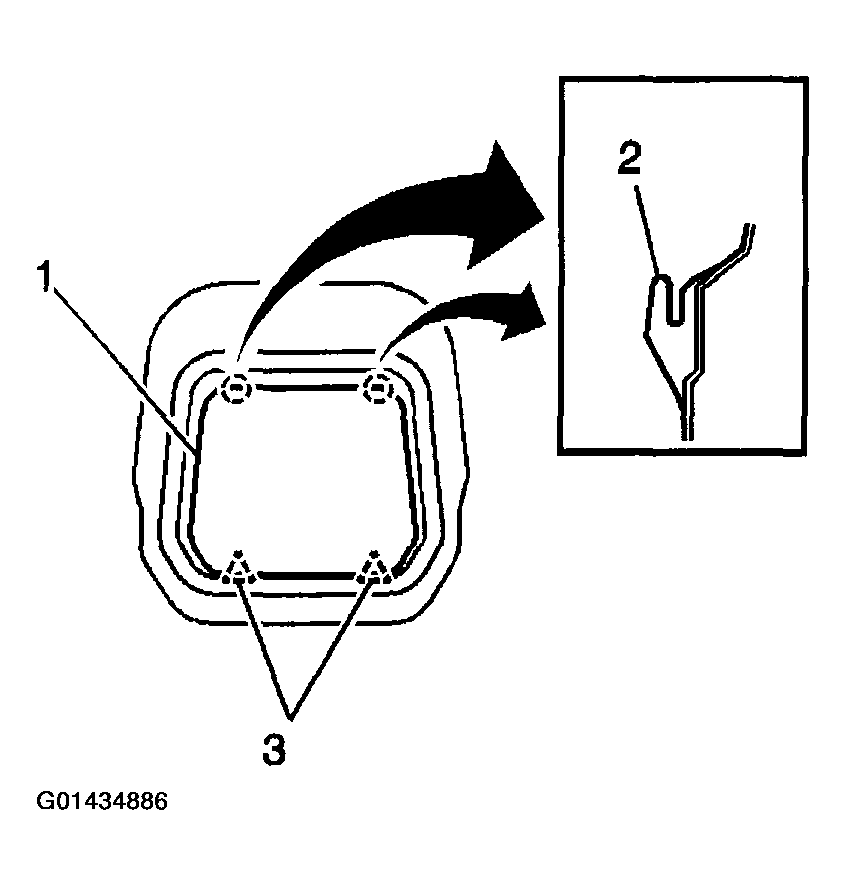

    Fig 1: Installing Trim Panel To Rear Seat Back & Sliding Upward Until Plastic Hooks Engage
    G01434886Courtesy of GENERAL MOTORS CORP.
