Removal Procedure

  1. Remove the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the front seat back cushion cover (1) and pad (2). Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  3. Remove the driver seat inflatable restraint, if necessary. Refer to REMOVAL & INSTALLATION (SIDE IMPACT AIR BAG) .
  4. Remove the passenger seat inflatable restraint, if necessary. Refer to REMOVAL & INSTALLATION (SIDE IMPACT AIR BAG) .
  5. Remove seat back frame (3) from vehicle.

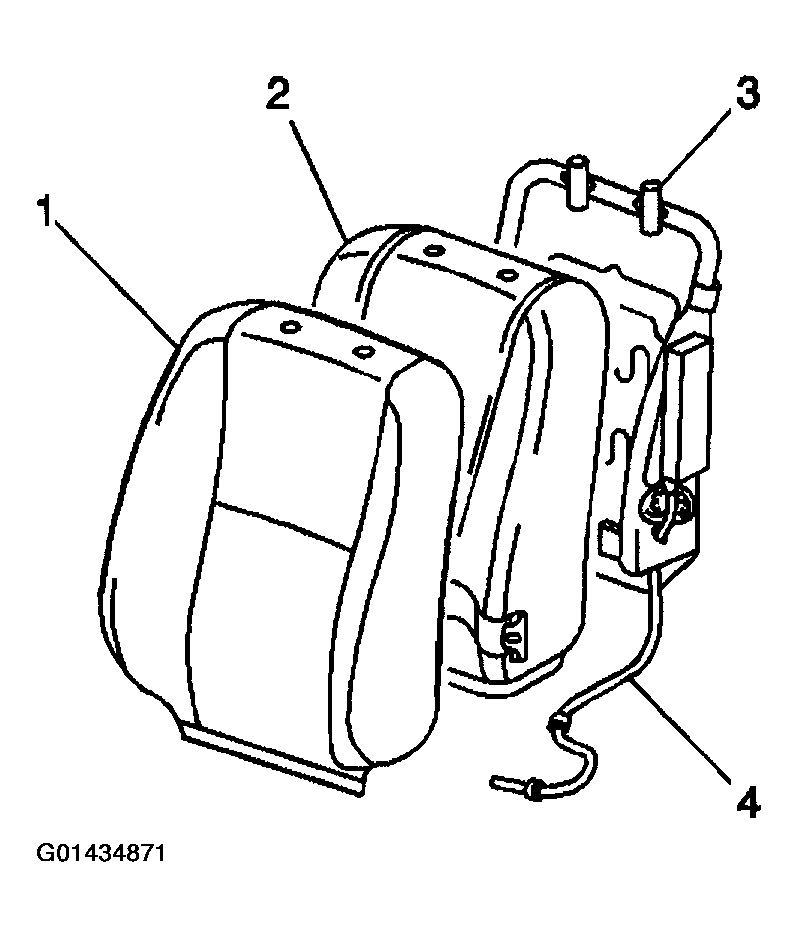

    Fig 1: Removing Front Seat Back Frame From Vehicle
    G01434871Courtesy of GENERAL MOTORS CORP.
