Keyless Entry Schematics (Gauge and Door Fuses, Multifunction Alarm Module and Remote Control Door Lock Receiver)

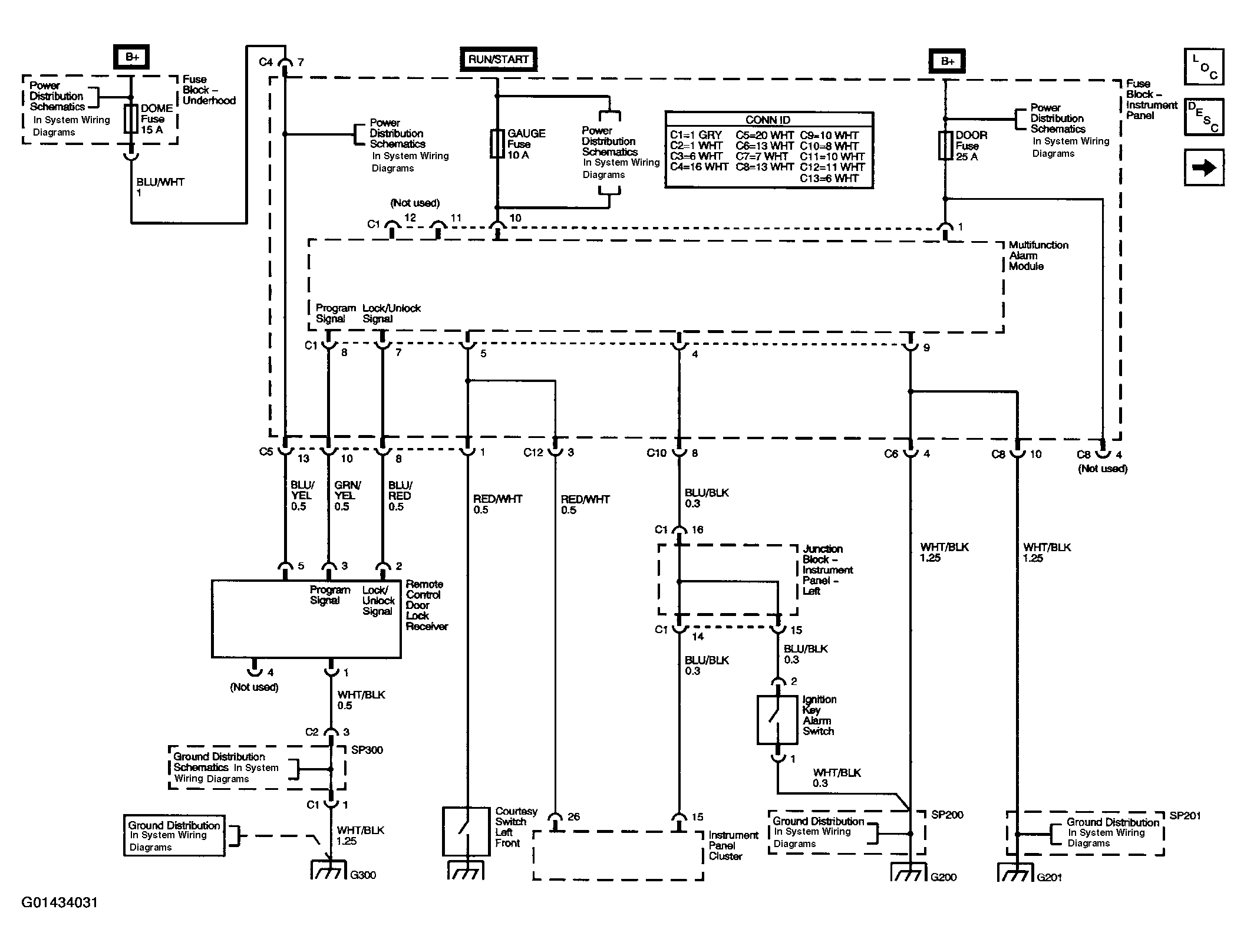

Fig 1: Keyless Entry Schematic Diagram (Gauge And Door Fuses, Multifunction Alarm Module And Remote)

Courtesy of GENERAL MOTORS CORP.

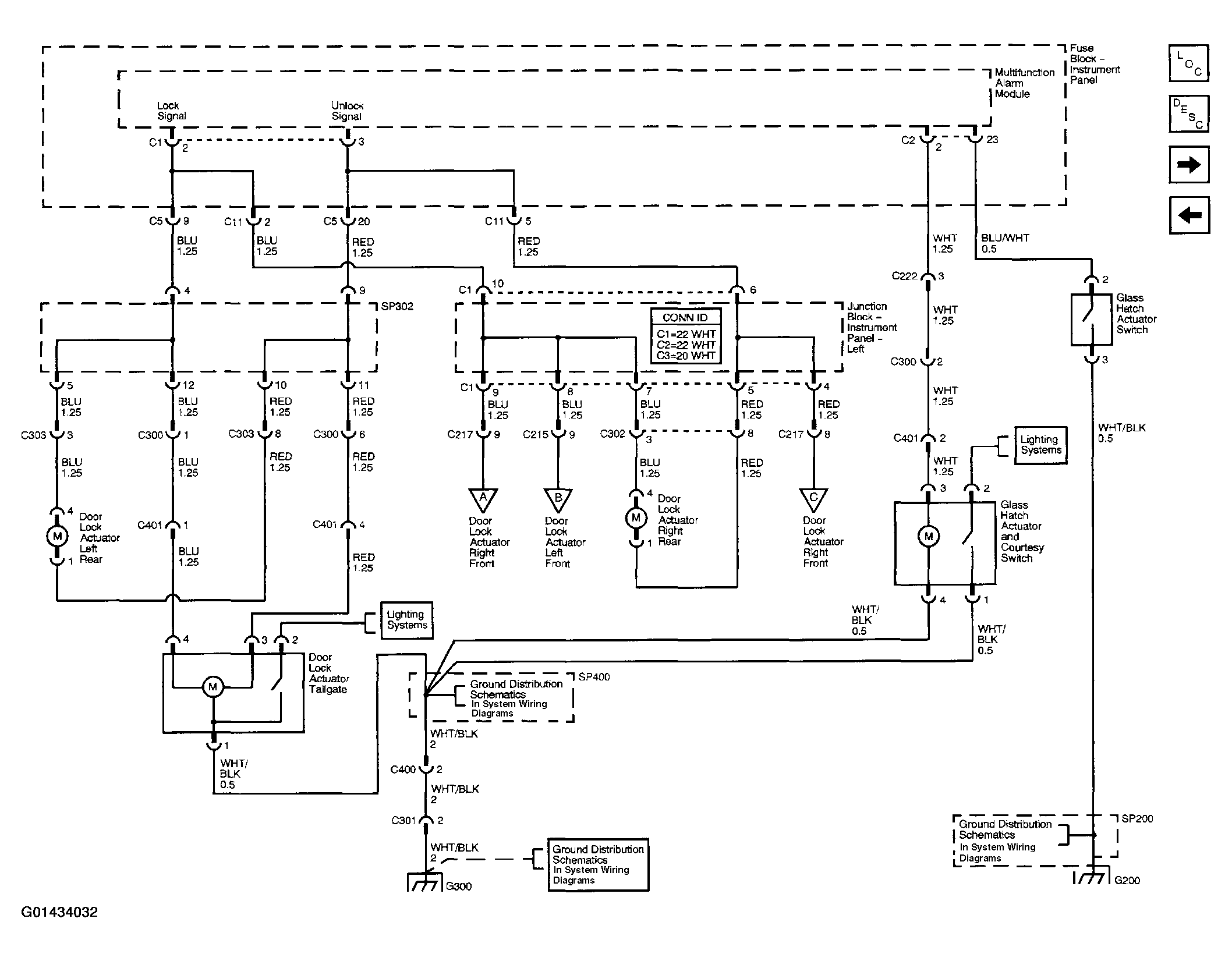

Fig 2: Keyless Entry Schematic Diagram (Alarm Module, Rear Door Lock, Glass Hatch And Tailgate Actuators)

Courtesy of GENERAL MOTORS CORP.

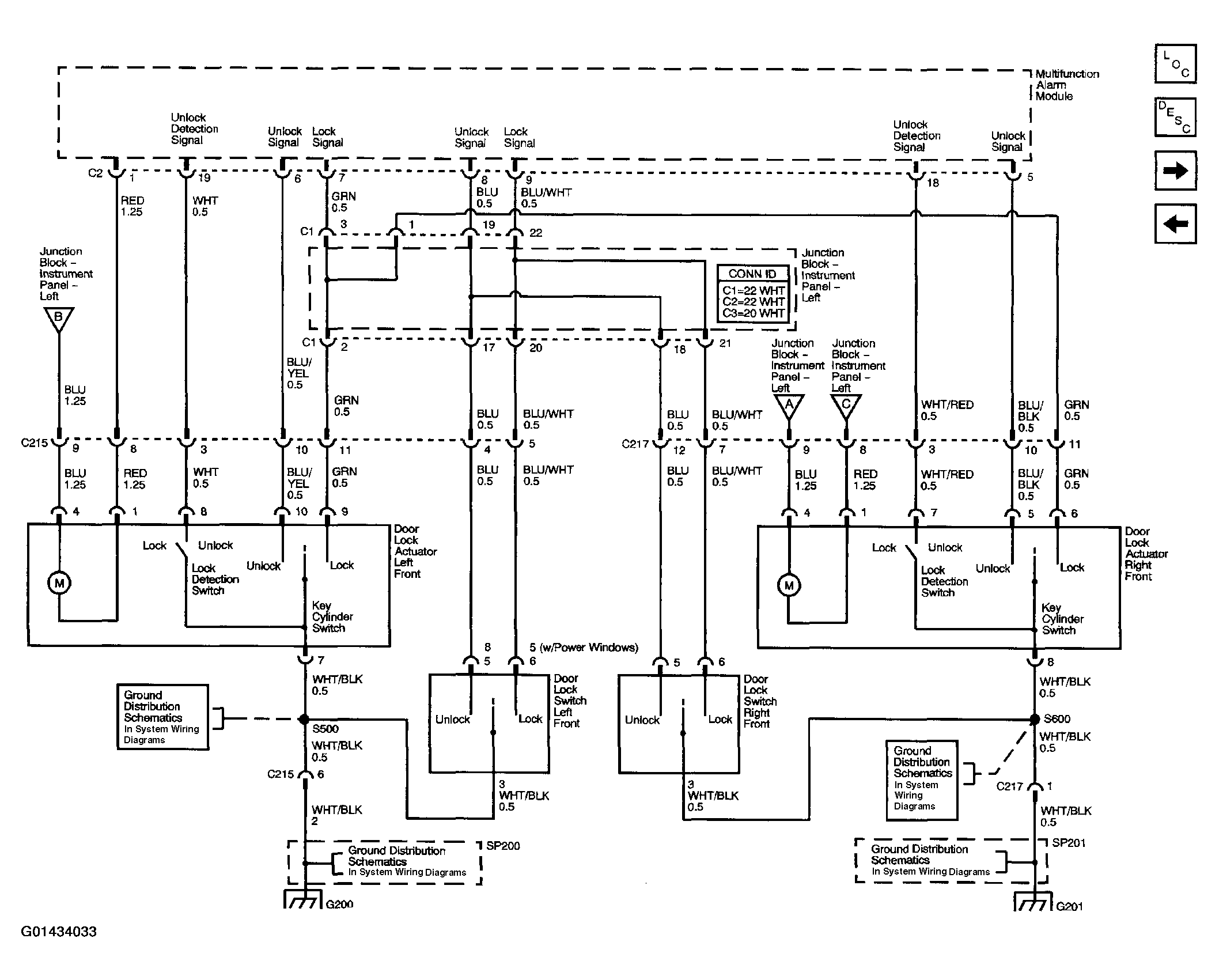

Fig 3: Keyless Entry Schematic Diagram (Door Lock Switches And Front Door Lock Actuators)

Courtesy of GENERAL MOTORS CORP.

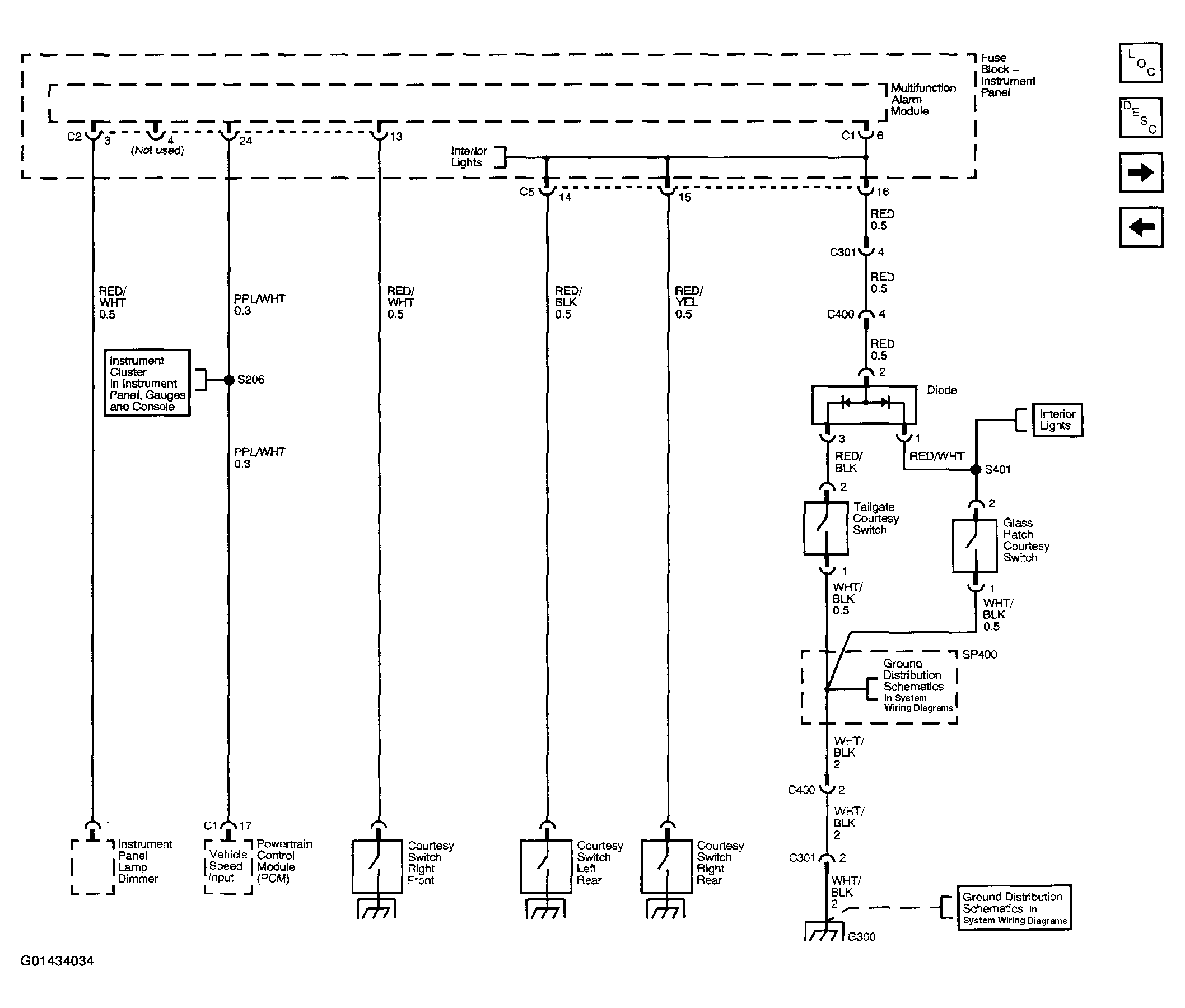

Fig 4: Keyless Entry Schematic Diagram (Multifunction Alarm Module And Courtesy Switches)

Courtesy of GENERAL MOTORS CORP.

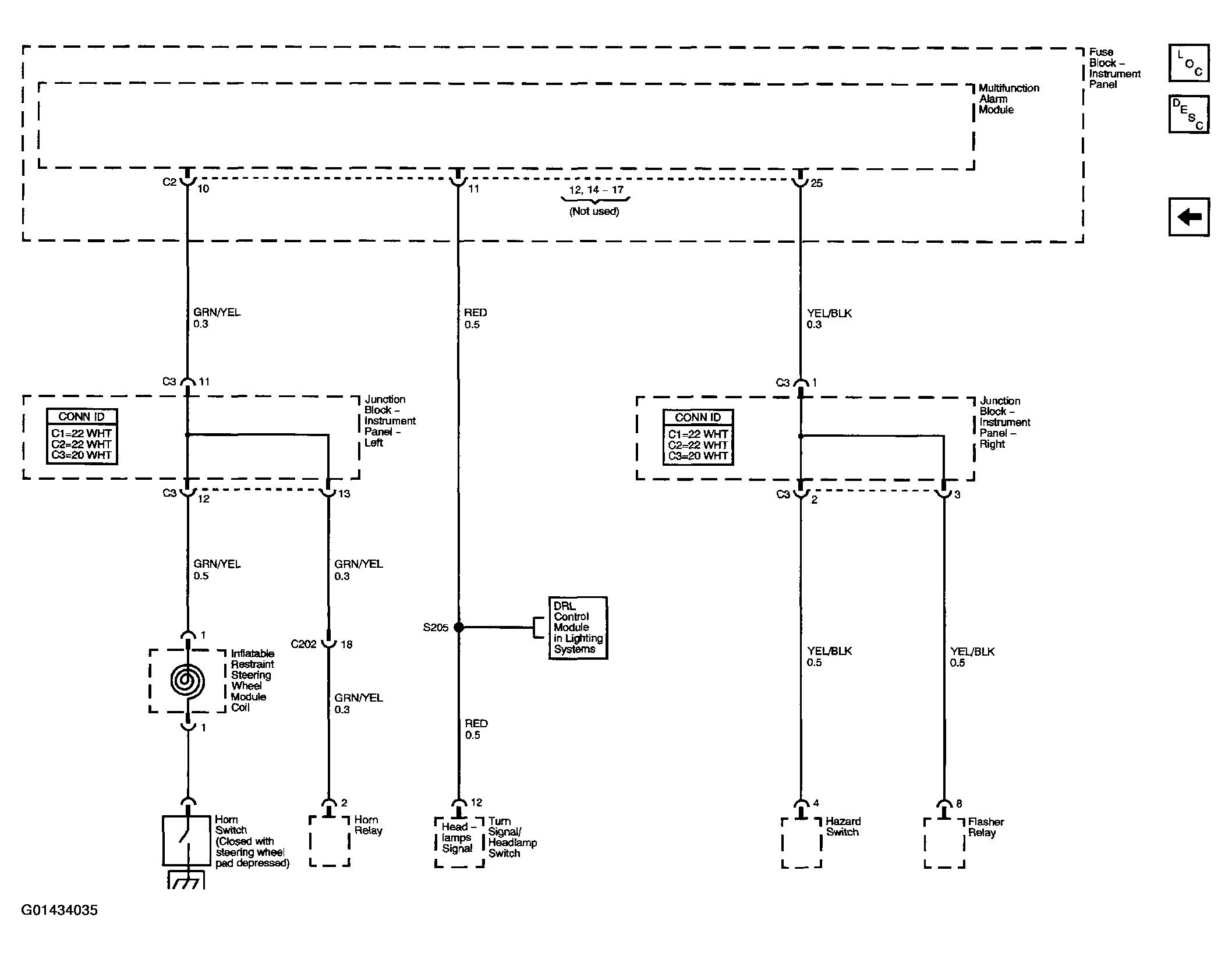

Fig 5: Keyless Entry Schematic Diagram (Multifunction Alarm Module, Horn Switch, Hazard Switch)

Courtesy of GENERAL MOTORS CORP.
