Wiper/Washer System Connector End Views

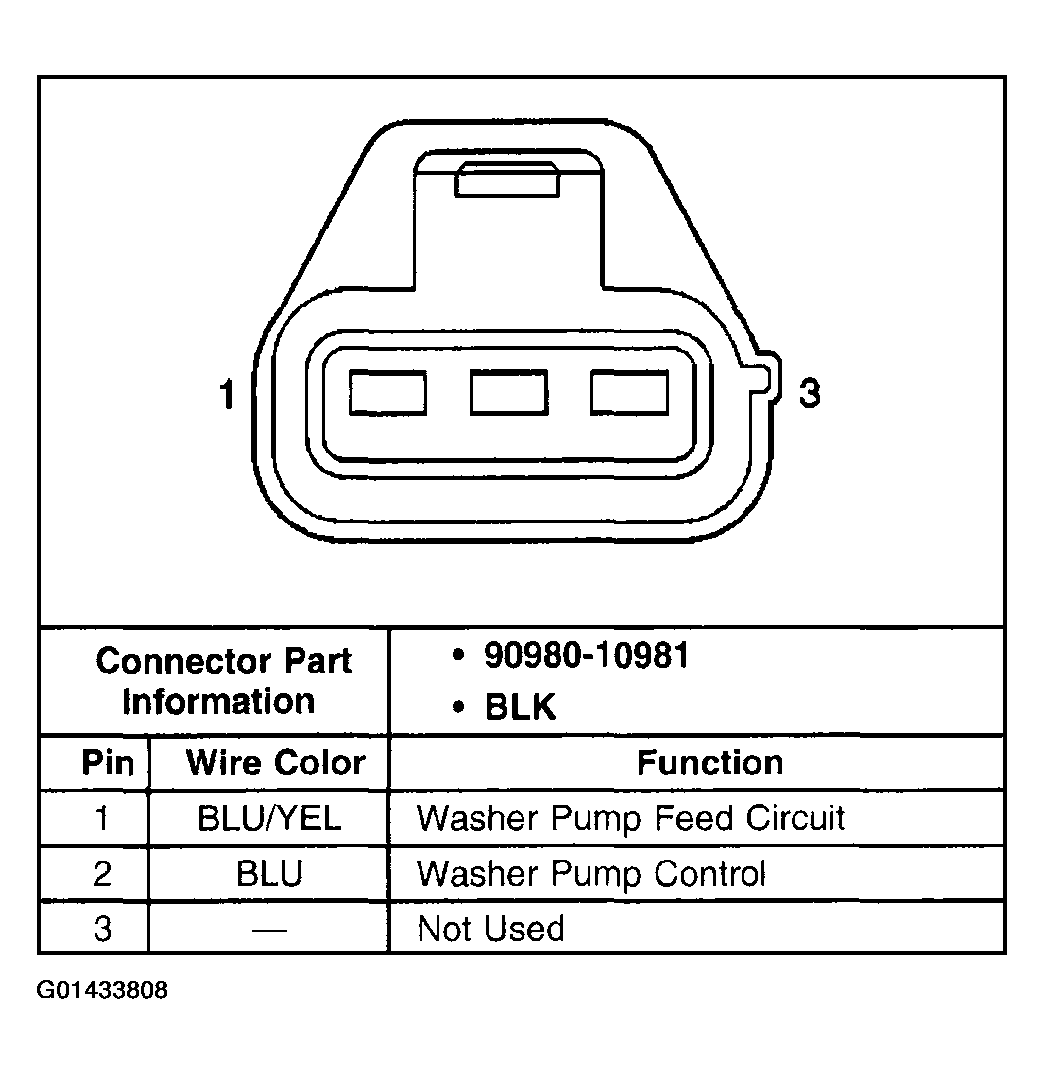

Fig 1: Identifying Windshield Washer Pump Connector And Pin Function Specifications

Courtesy of GENERAL MOTORS CORP.

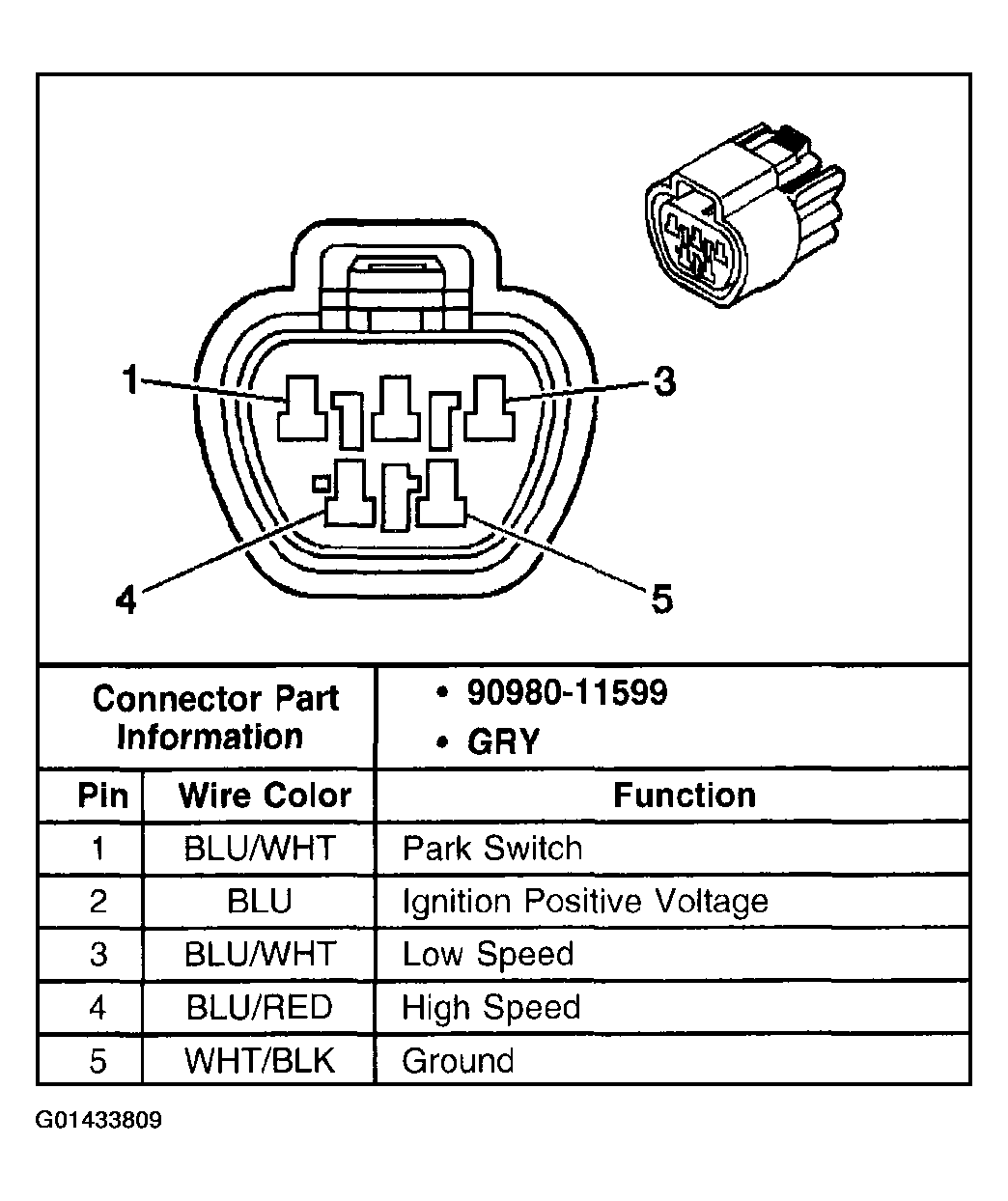

Fig 2: Identifying Windshield Wiper Motor Connector And Pin Function Specifications

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Rear Wiper Relay Connector And Pin Function Specifications

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Rear Hatch Glass Connector And Pin Function Specifications

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Windshield Wiper/Washer Switch Connector And Pin Function Specifications

Courtesy of GENERAL MOTORS CORP.
