Component Locator
>>
Wiper/Washer System Component Views
>>
Wiper/Washer Views
Wiper/Washer Views

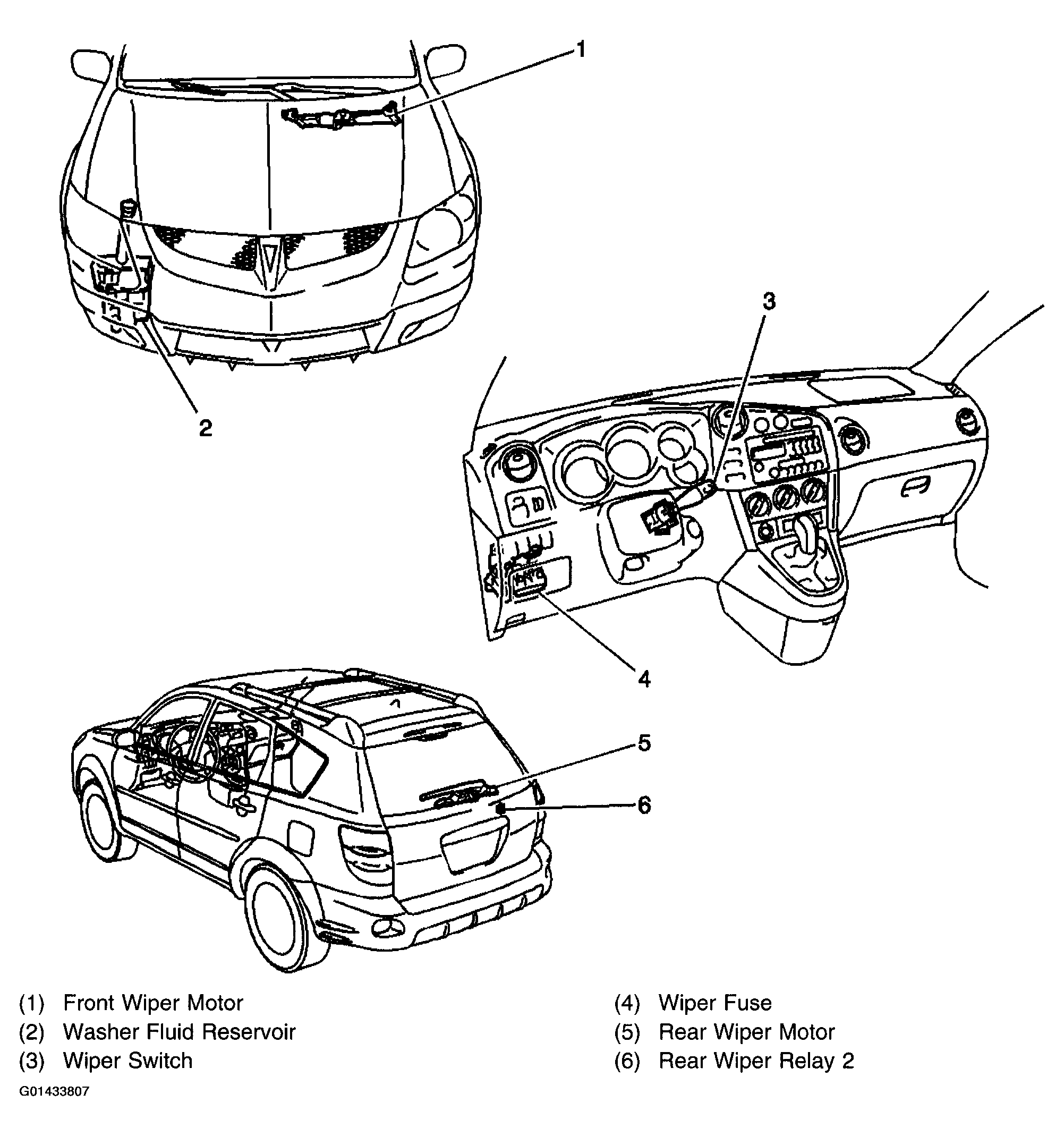

Fig 1: Locating Wiper/Washer System Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
