Removal Procedure

  1. Using a taped flat bladed tool, gently pry the security indicator lamp switch (3) from the instrument panel (1).
  2. Disconnect the security indicator lamp switch electrical connector.

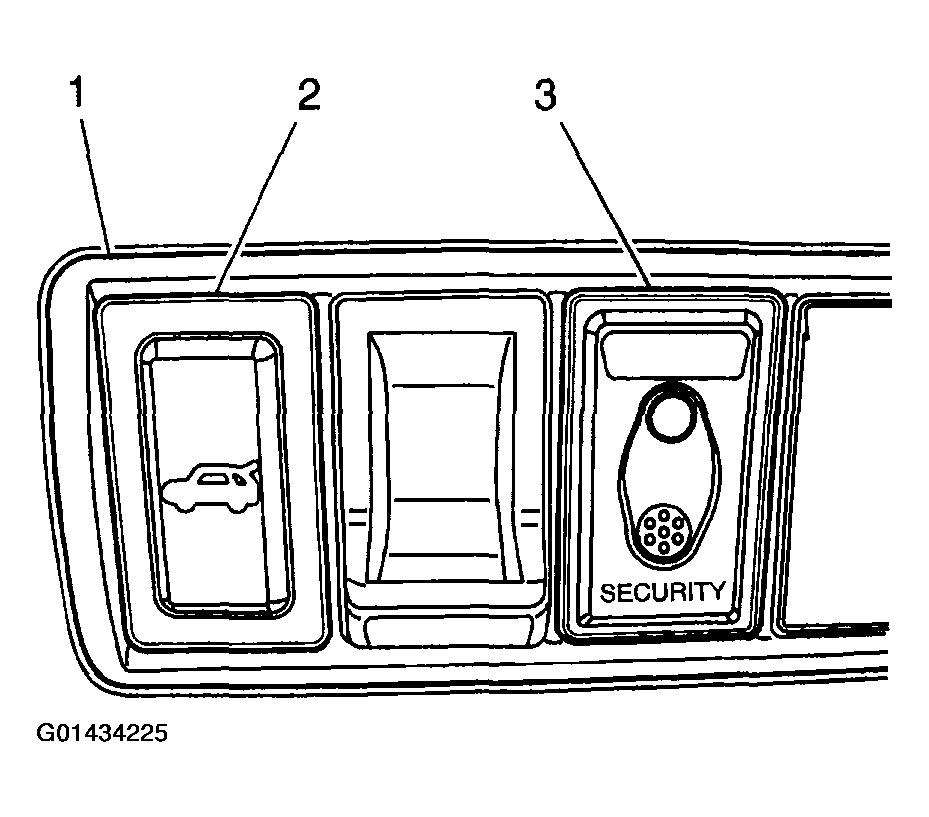

    Fig 1: Removing LED Indicator For Vehicle Security System
    G01434225Courtesy of GENERAL MOTORS CORP.
