Installation Procedure

  1. Install the multifunction alarm module (1) to the rear of the junction block (2).
  2. Connect the multifunction alarm module electrical connector.
  3. Reposition the junction block back into position. Secure the junction block with the screws.
  4. Connect the negative battery cable.

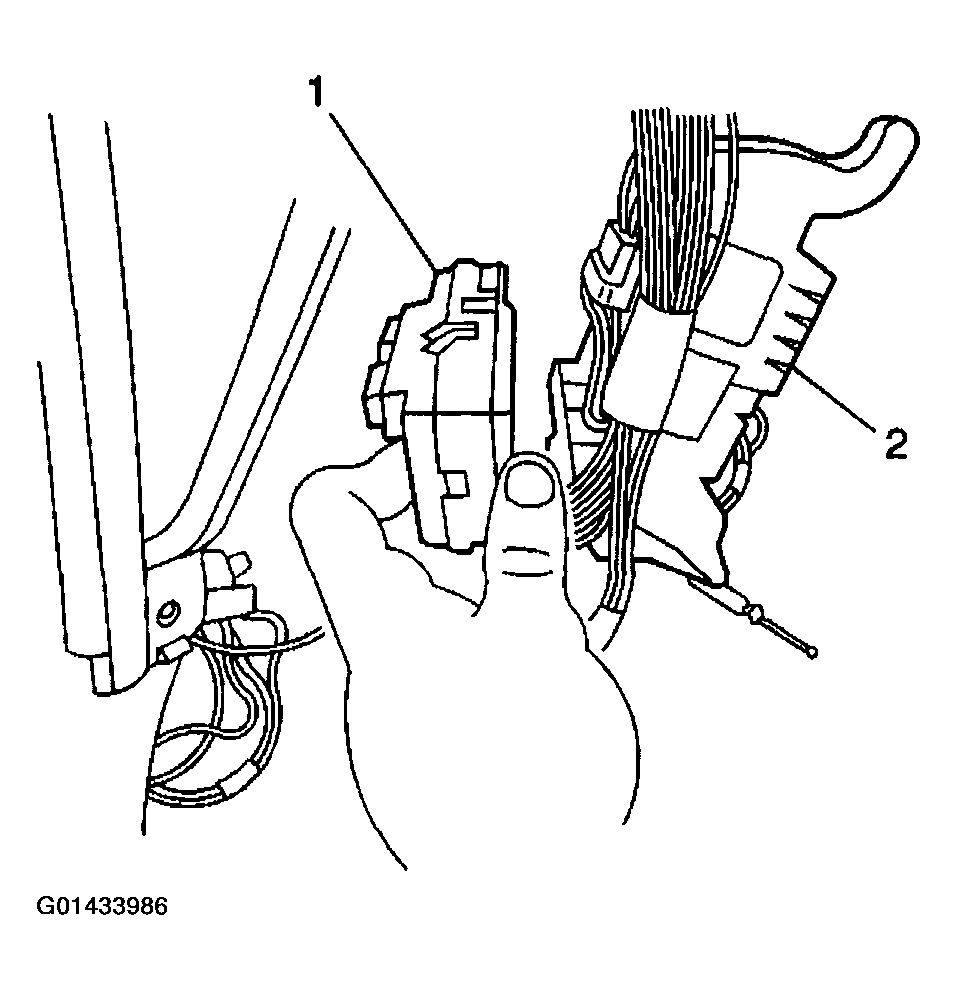

    Fig 1: Connecting Multifunction Alarm Module To Rear Of Junction Block
    G01433986Courtesy of GENERAL MOTORS CORP.
