Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Remove the driver side front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  3. Remove the 2 bolts (1).
  4. Fold the floor carpet to the inside.
  5. Disconnect the electrical connector (2).
  6. Remove the accessory AC/DC power control module (3) from the vehicle.

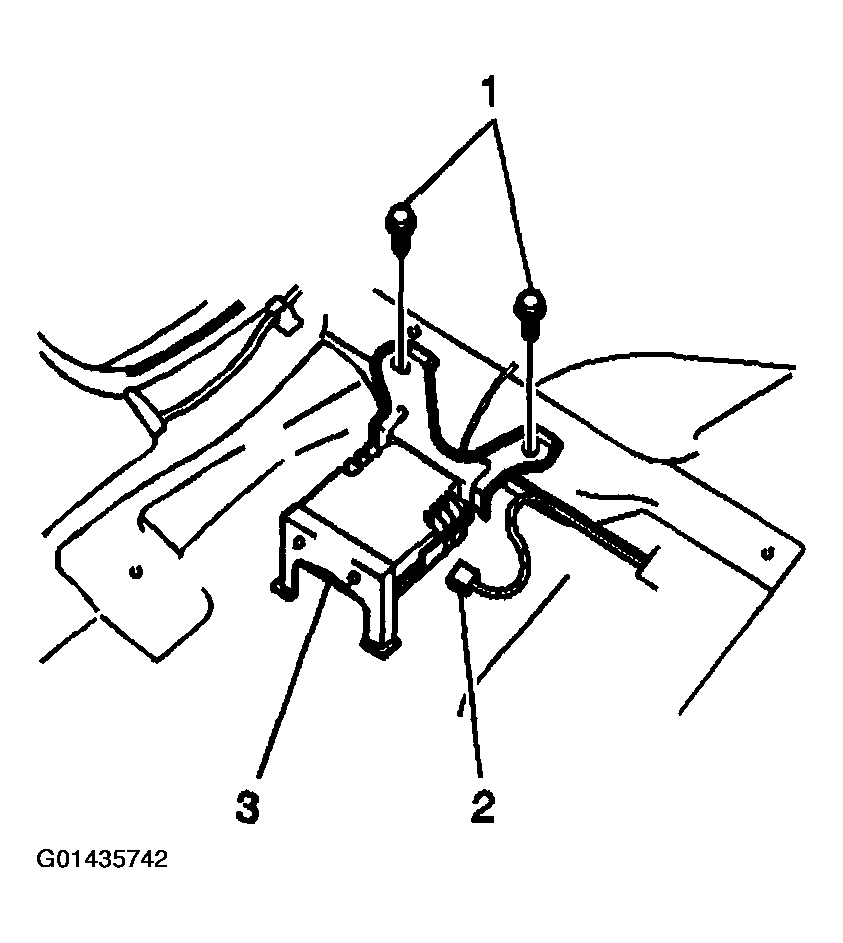

    Fig 1: Removing AC/DC Power Control Module
    G01435742Courtesy of GENERAL MOTORS CORP.
