Installation Procedure

NOTE: Refer to FASTENER NOTICE .

Install the cruise control module to the IP. Secure the module with the mounting bolt.
Tighten

Tighten the cruise control module mounting bolt to 10 N.m (89 lb in).
Connect the cruise control module electrical connector.
Install the instrument panel cluster assembly. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in Instrument Panel, Gages and Console.

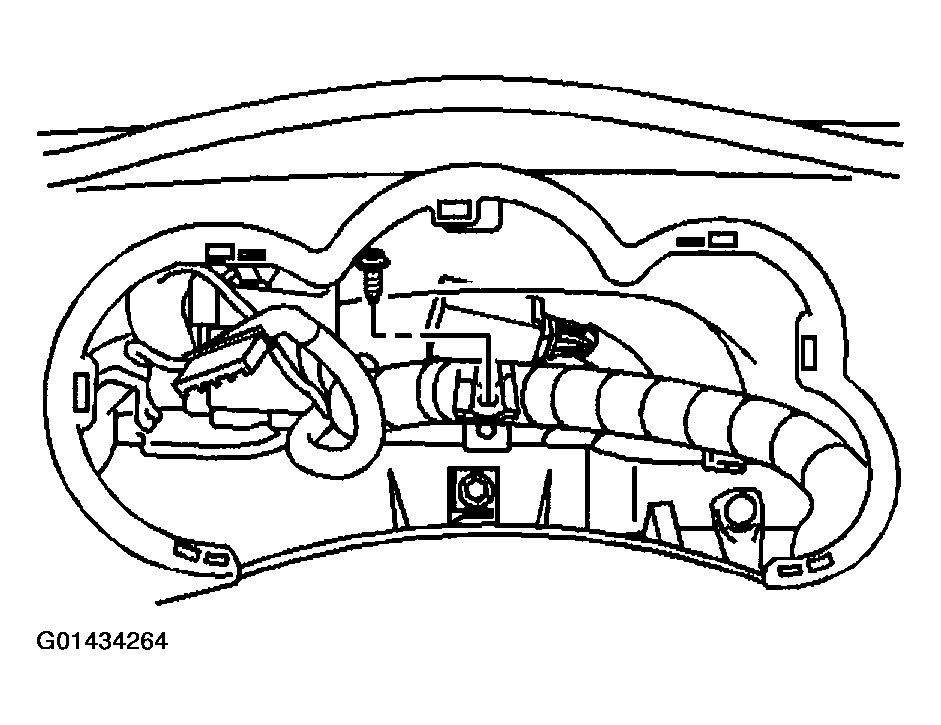

Fig 1: Installing Cruise Control Module To IP
Courtesy of GENERAL MOTORS CORP.
Install the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
