Manual Transmission
>>
Specifications
>>
Shim Size Specifications
Shim Size Specifications

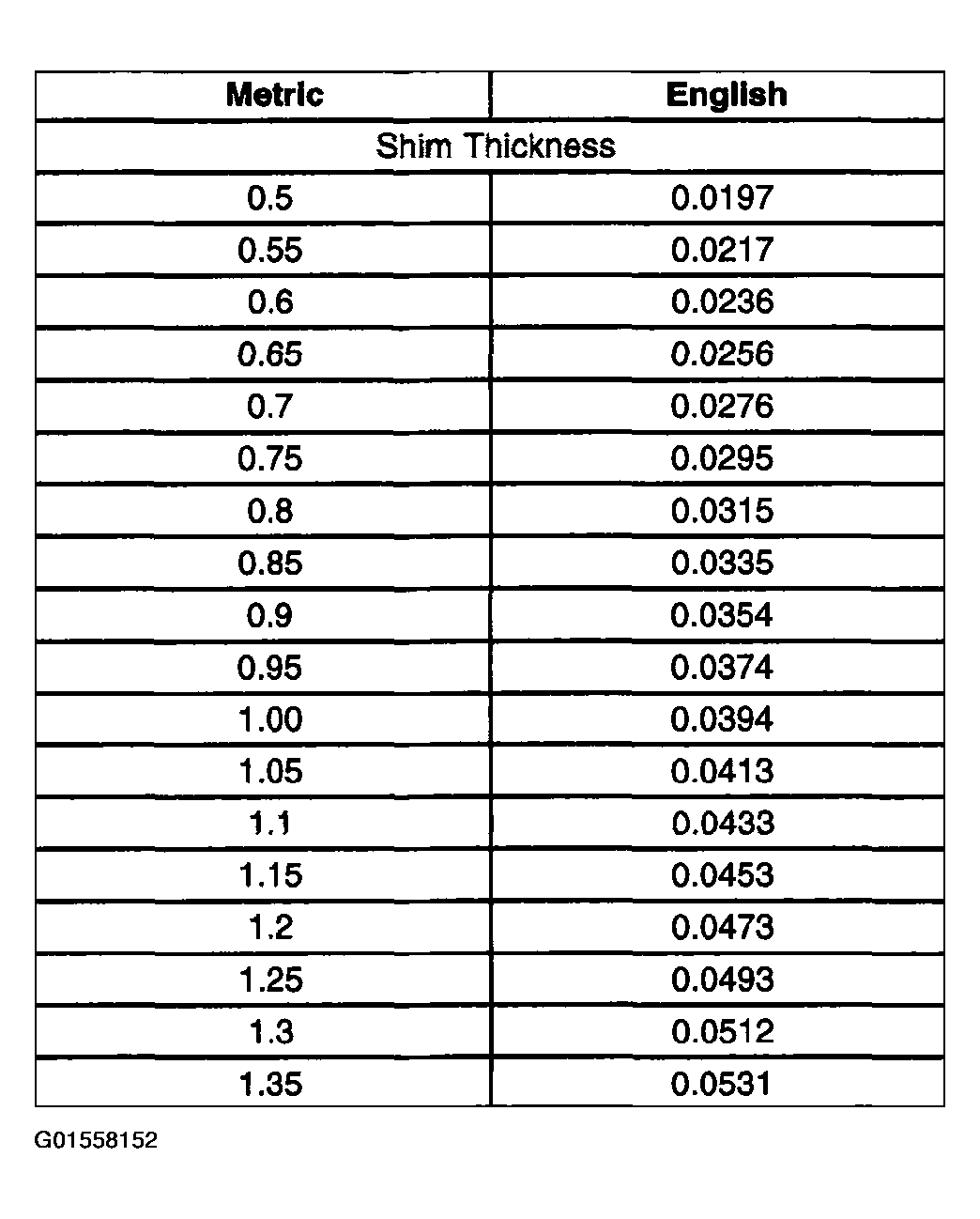

Fig 1: Shim Size Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
