Shift Cable Adjustment

Set the parking brake.
Remove the console.
Lift and unlock the shift cable retainers.

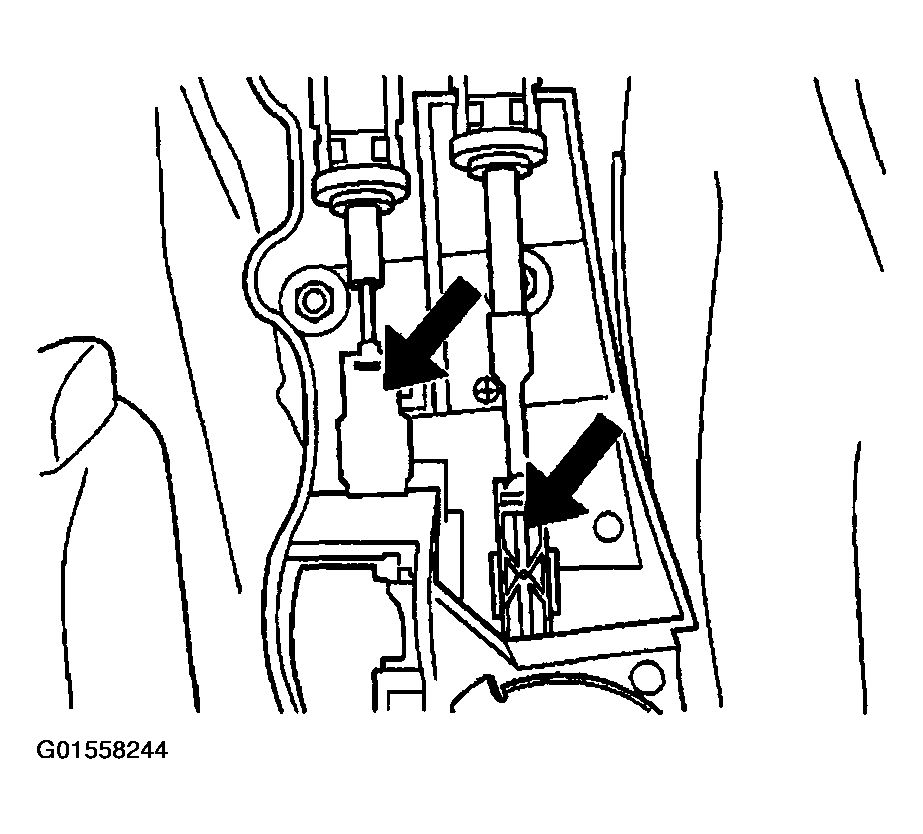

Fig 1: Unlocking Shift Cable Retainers
Courtesy of GENERAL MOTORS CORP.
Push the shifter neutral lock clip. Move the shifter slightly in order to center the lock clip.

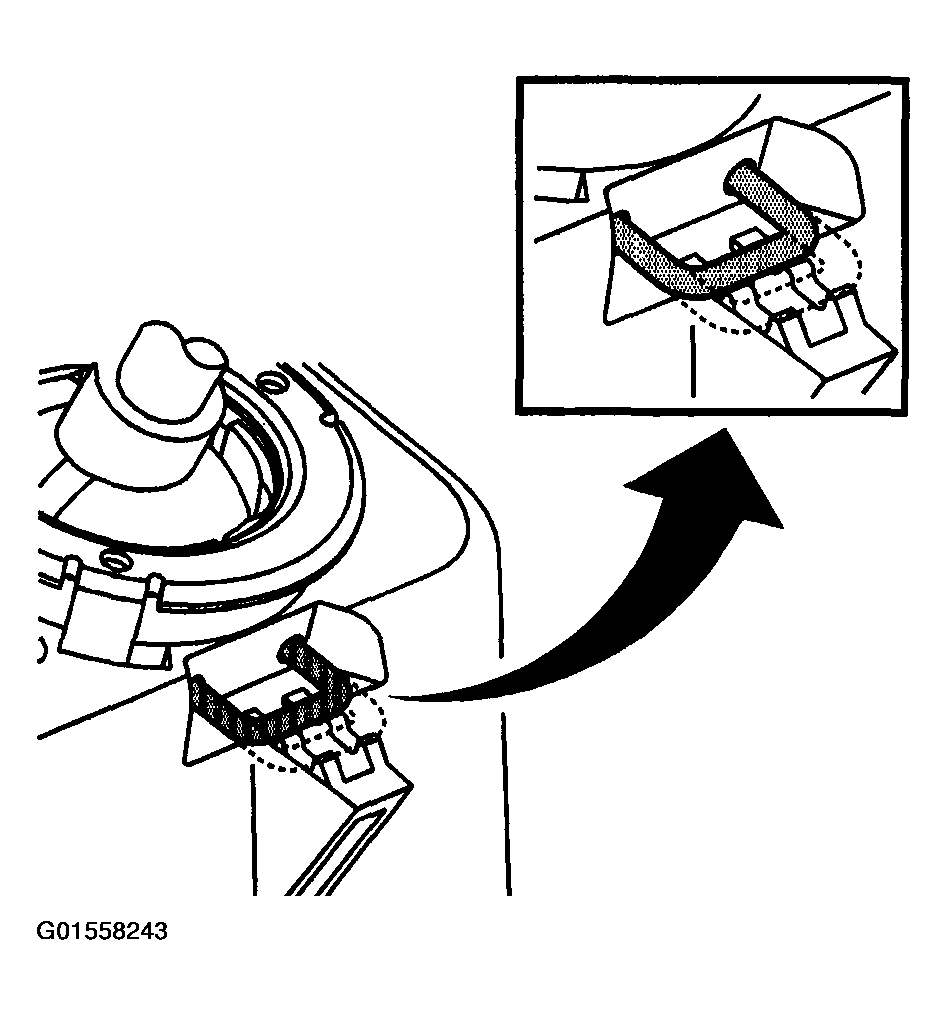

Fig 2: Centering Shifter Neutral Lock Clip
Courtesy of GENERAL MOTORS CORP.
Ensure that the transmission is in neutral.
Press and lock the shift cable retainers.

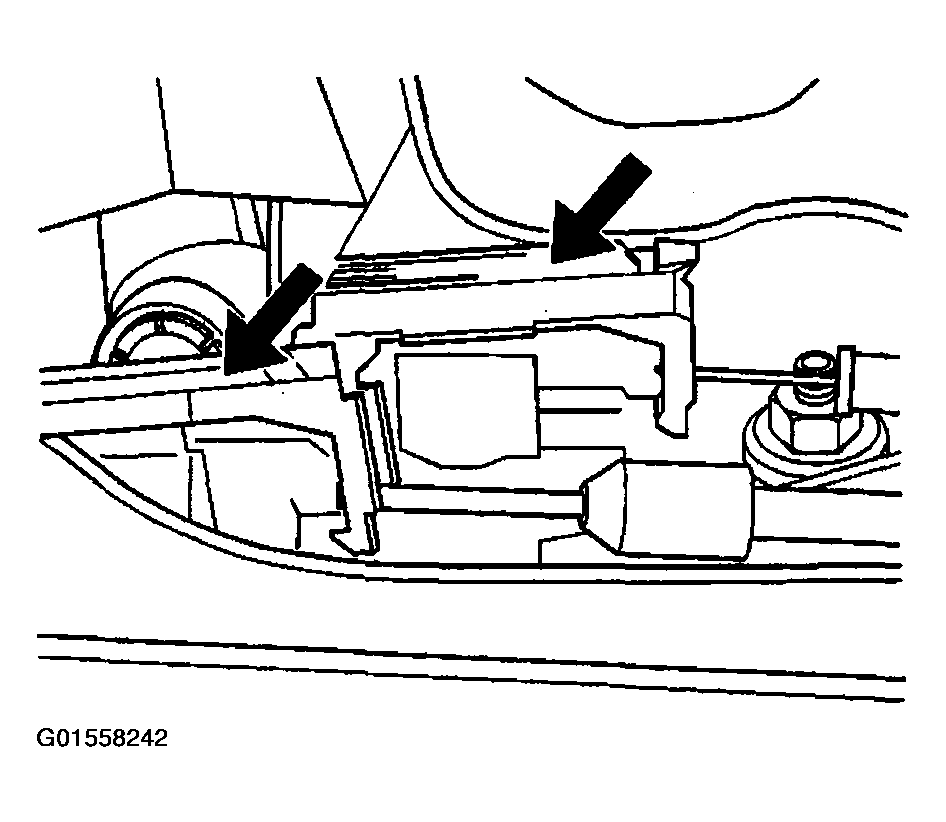

Fig 3: Locking Shift Cable Retainers
Courtesy of GENERAL MOTORS CORP.
Pull the shifter neutral lock clip to its original position.
Install the console.
