Removal Procedure

NOTE: When removing or installing the backup lamp switch, do not use an open end wrench. Use only a socket in order to avoid damage to the switch assembly.
  1. Disconnect the backup lamp connector.

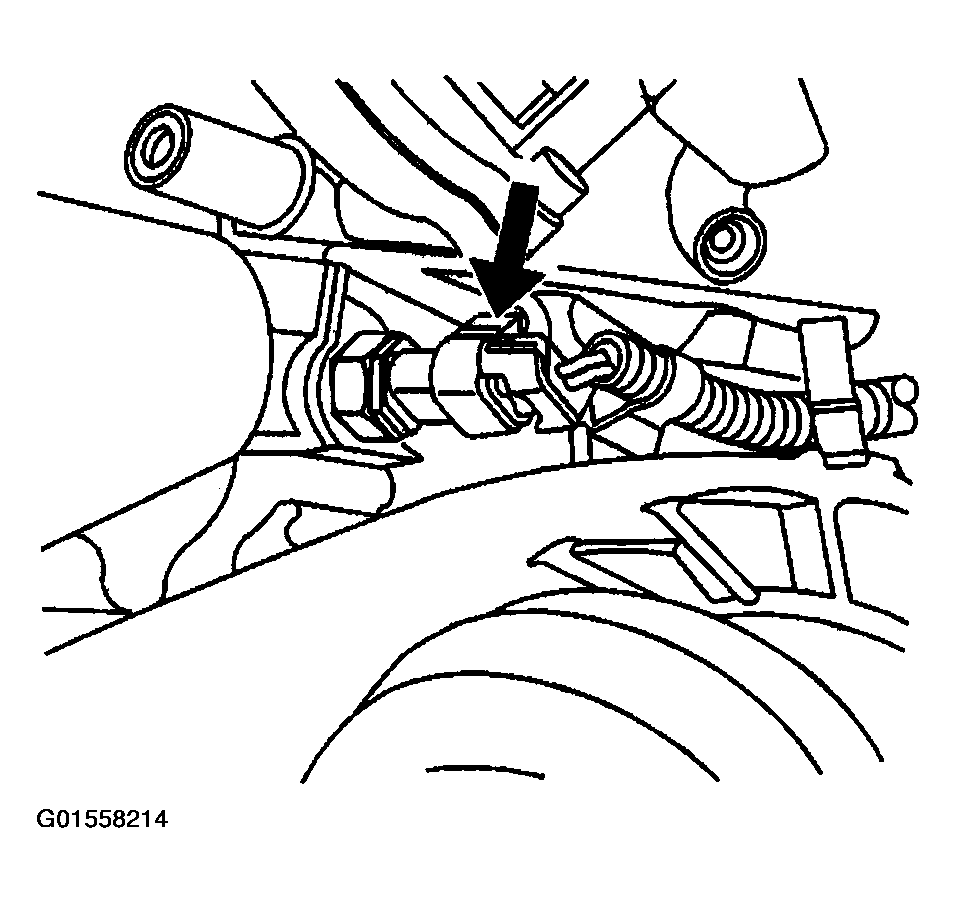

    Fig 1: Disconnecting Backup Lamp Connector
    G01558214Courtesy of GENERAL MOTORS CORP.
  2. Remove the backup light switch assembly.

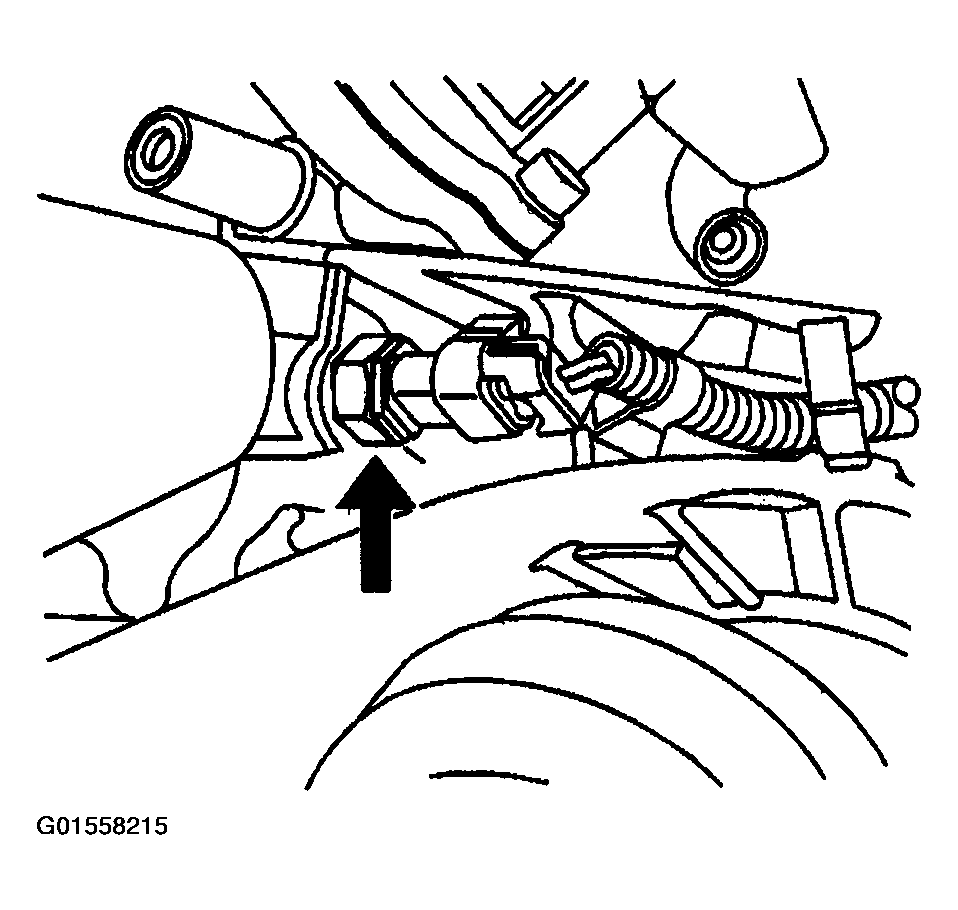

    Fig 2: Removing Backup Light Switch Assembly
    G01558215Courtesy of GENERAL MOTORS CORP.
