Manual Transmission
>>
Component Locator
>>
Manual Transmission Connector End Views
Manual Transmission Connector End Views
Fig 1: Clutch Pedal Position (CPP) Switch Connector
Courtesy of GENERAL MOTORS CORP.

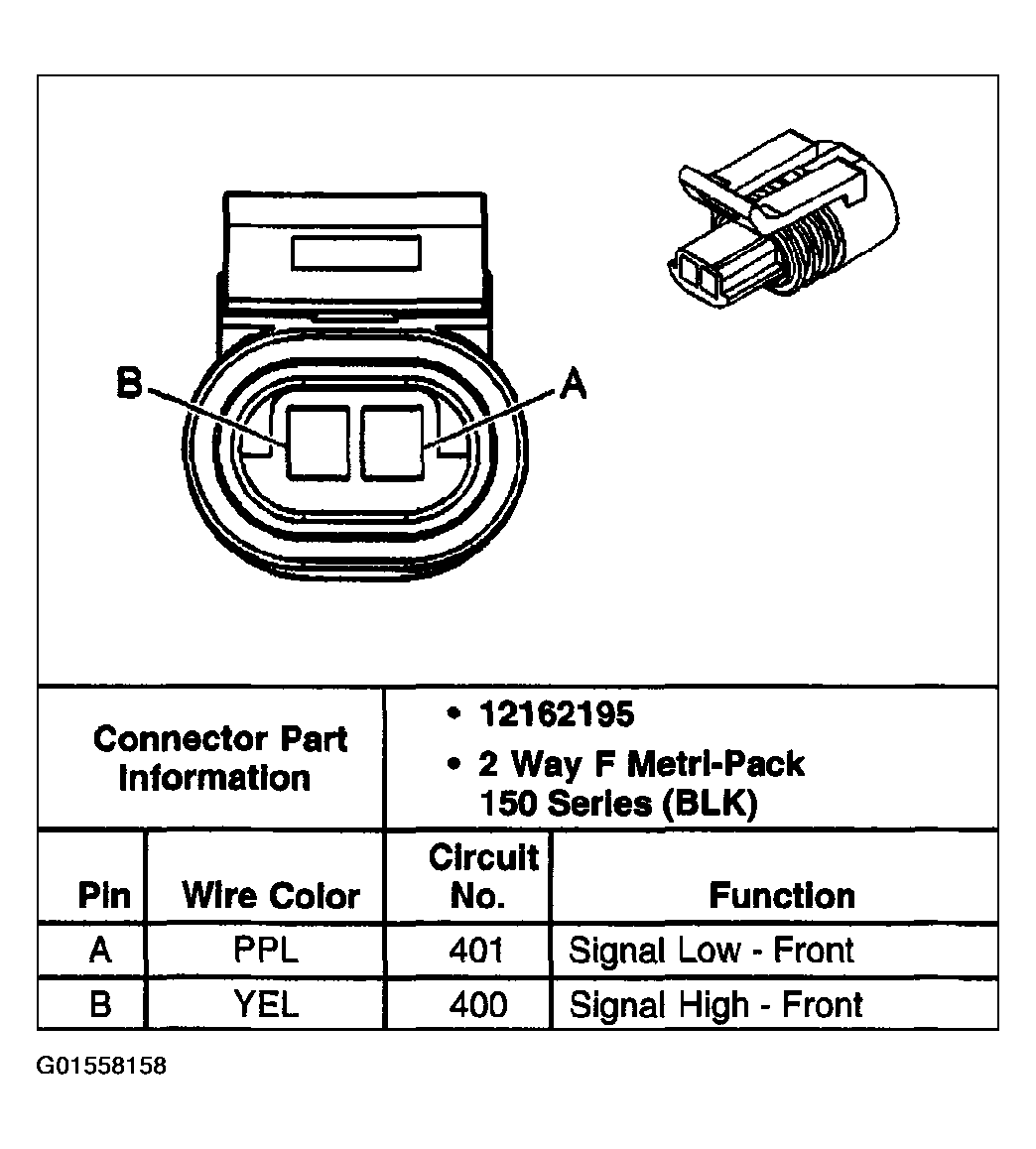

Fig 2: Vehicle Speed Sensor (VSS) Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
