Removal Procedure

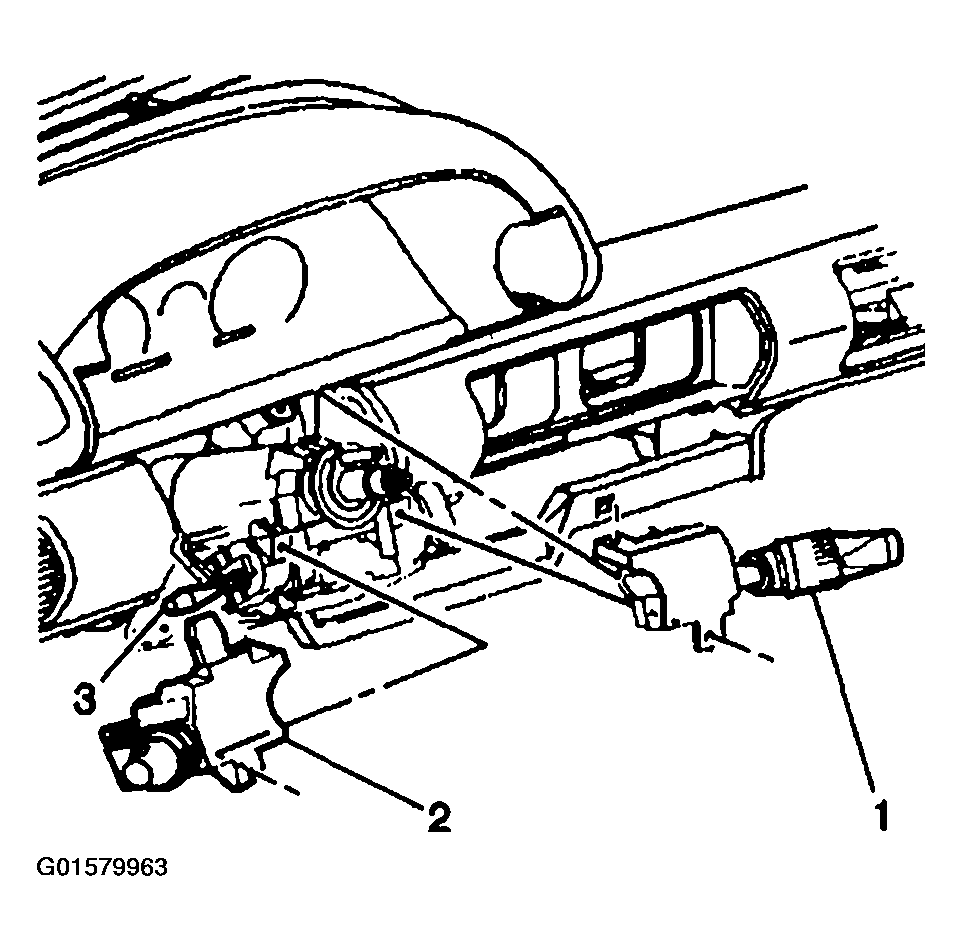

Fig 1: Removing Multifunction Switch From Steering Column
G01579963Courtesy of GENERAL MOTORS CORP.
CAUTION: BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  3. Remove the retaining screws from the multifunction switch (2).
  4. Remove the multifunction switch (2) from the steering column.
  5. Disconnect the electrical connectors from the multifunction switch (2).
