Home >> Pontiac >> 2003 >> Sunfire Standard >> Repair and Diagnosis >> Steering >> Steering Wheel & Steering Column >> Components Locator >> Steering Column Disassembled View (Standard Column)

Steering Column Disassembled View (Standard Column)

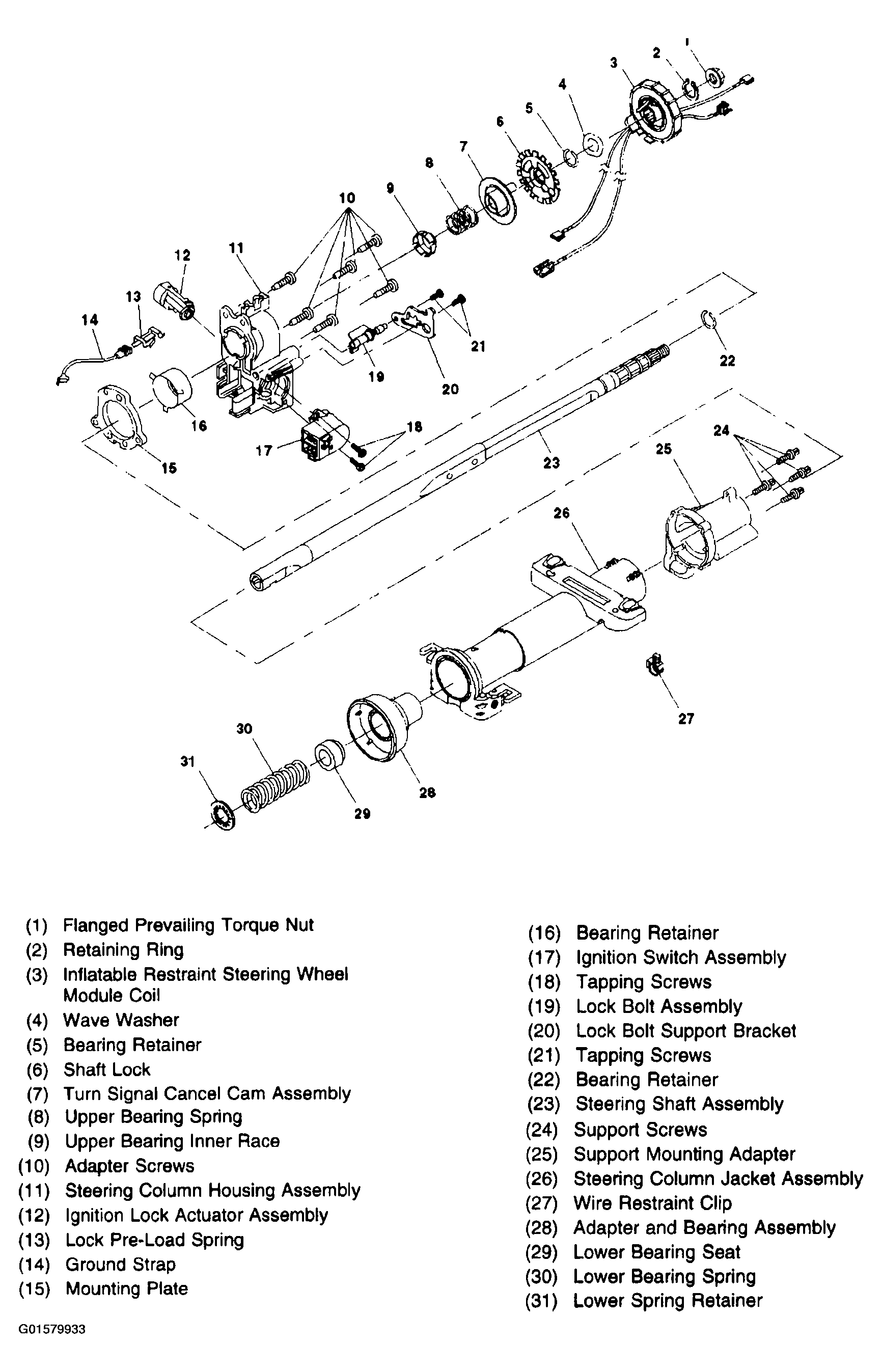

Fig 1: Exploded View Of Standard Steering Column

G01579933

Courtesy of GENERAL MOTORS CORP.
