Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right engine splash shield to the lower flange of the engine compartment side rail.
  2. Align the holes in the engine splash shield to the holes in the outboard side engine compartment side rail.
  3. Install the push-in retainers (1) to the right engine splash shield.
  4. Connect the clips to the electrical harness.

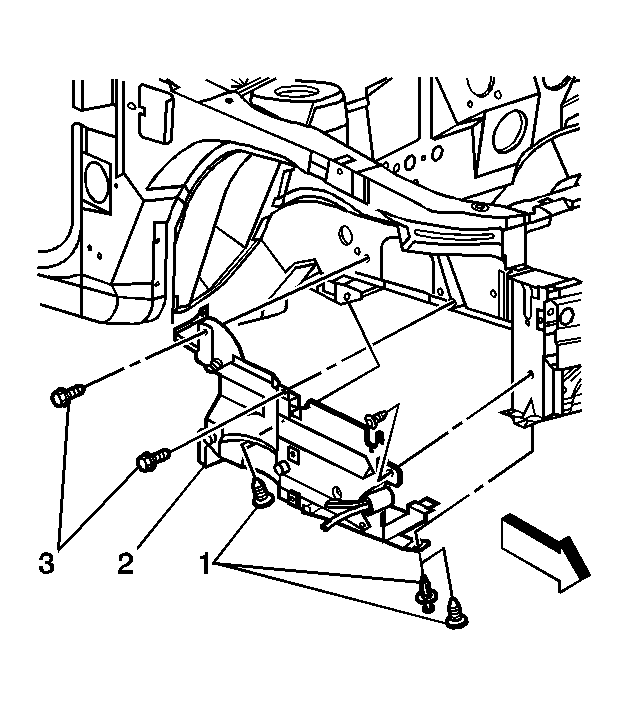

    Fig 1: Installing Right Engine Splash Shield Push-In Retainers
    GM744904Courtesy of GENERAL MOTORS CORP.
    5. NOTE: Refer to FASTENER NOTICE .
  5. Install the screws (3) to the right engine splash shield (2).

    Tighten:  Tighten the engine splash shield screws to 2 N.m (18 lb in).

  6. Install the push-in retainers to the left engine splash shield.
  7. Connect the clips to the electrical harness.
  8. Install the screws (2) to the left engine splash shield (1).

    Tighten:  Tighten the engine splash shield screws to 2 N.m (18 lb in).

    Fig 2: Installing Left Engine Splash Shield Screws
    GM744930Courtesy of GENERAL MOTORS CORP.
  9. Install the right fender liner. Refer to Front Fender Liner Replacement .
  10. Install the tires and wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  11. Lower the vehicle.
