Horns Connector End Views

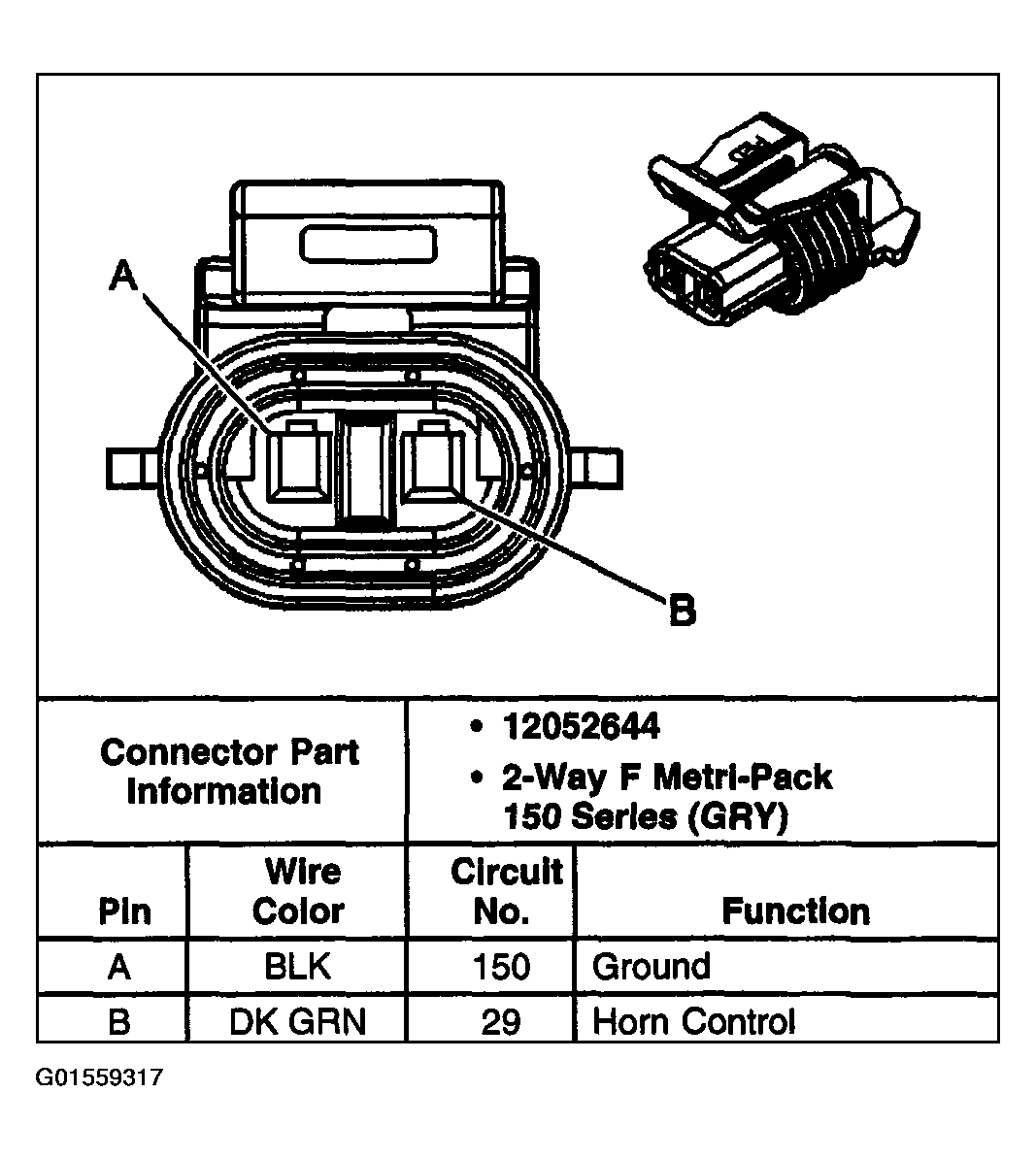

Fig 1: Identifying Horn Connector

G01559317

Courtesy of GENERAL MOTORS CORP.

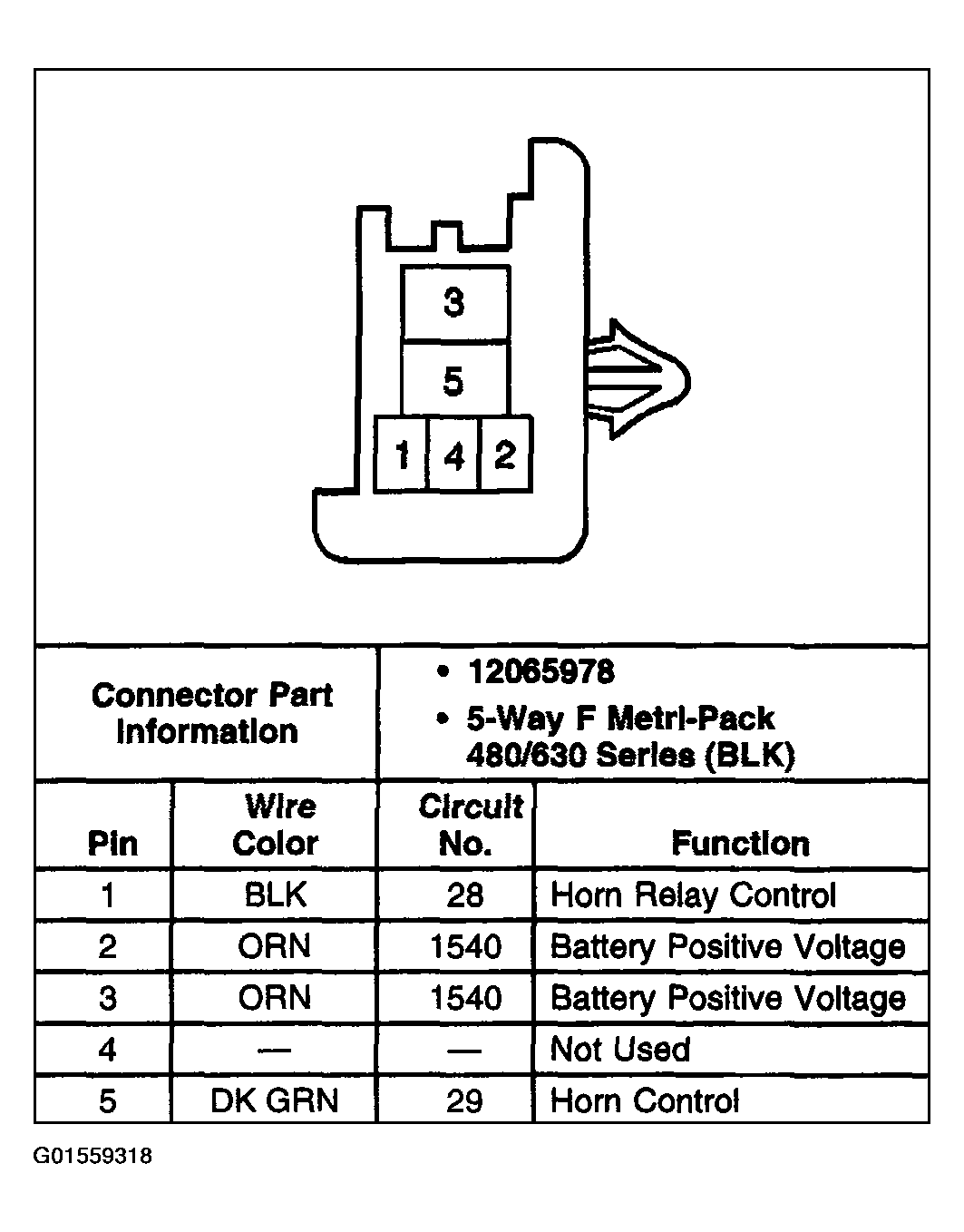

Fig 2: Identifying Horn Relay Assembly

G01559318

Courtesy of GENERAL MOTORS CORP.
