Schematic and Routing Diagrams

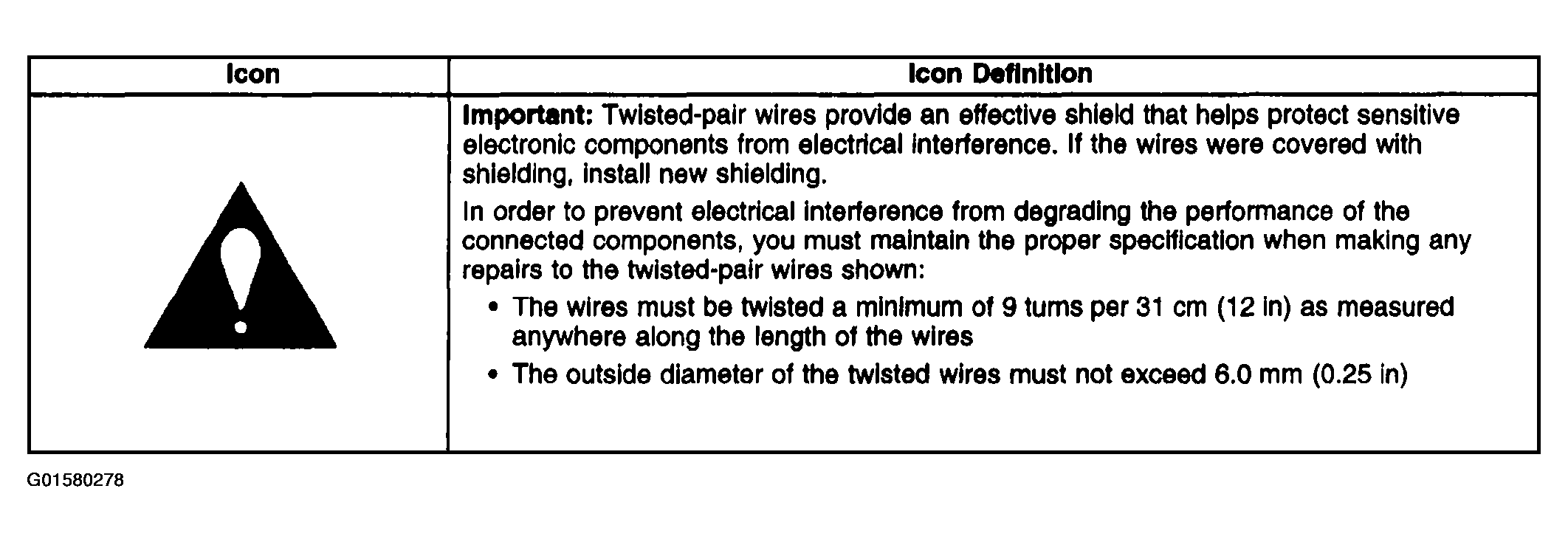

Fig 1: Identifying ABS Schematic Icons
G01580278Courtesy of GENERAL MOTORS CORP.

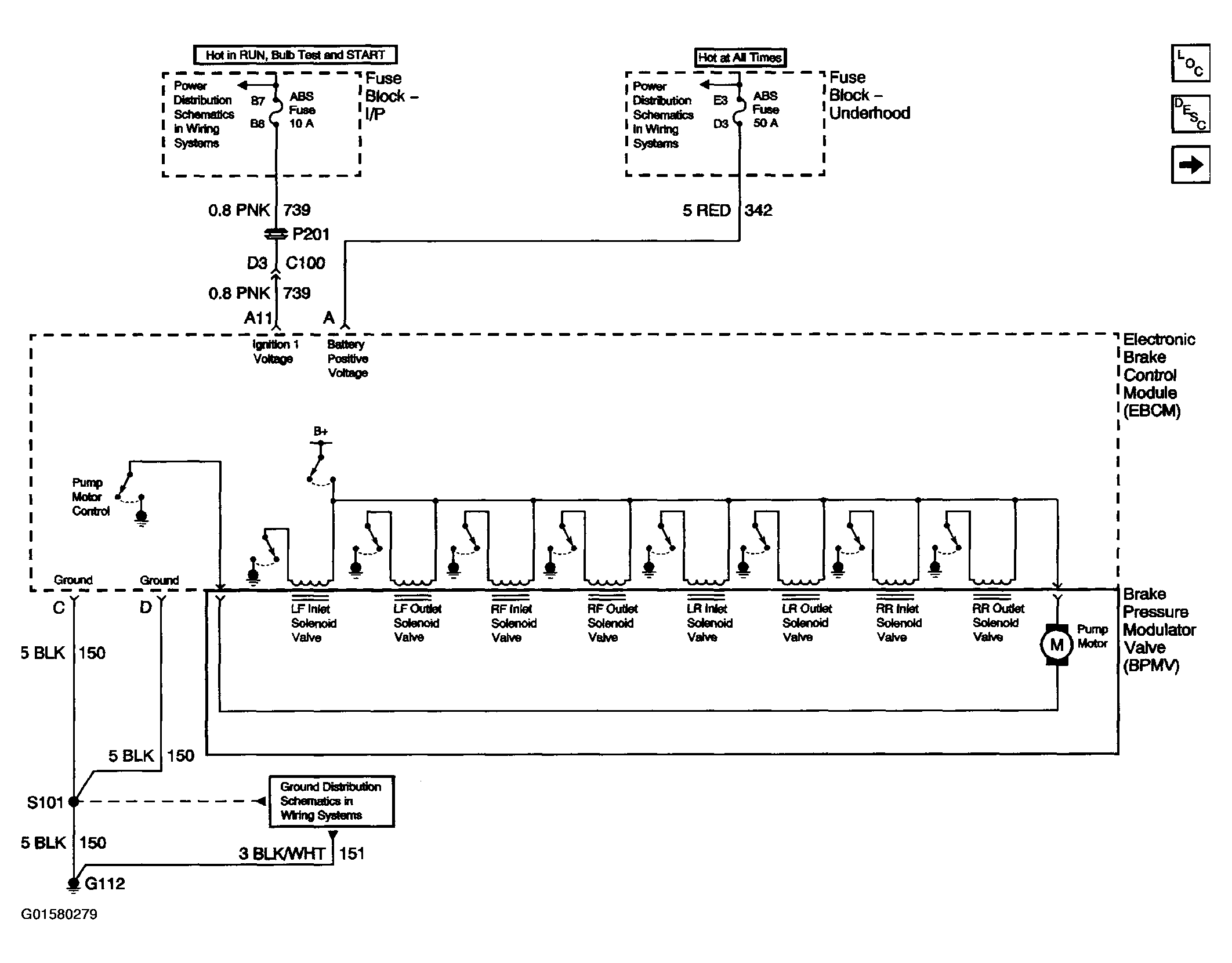

Fig 2: ABS Schematics (Module Power And Ground)
G01580279Courtesy of GENERAL MOTORS CORP.

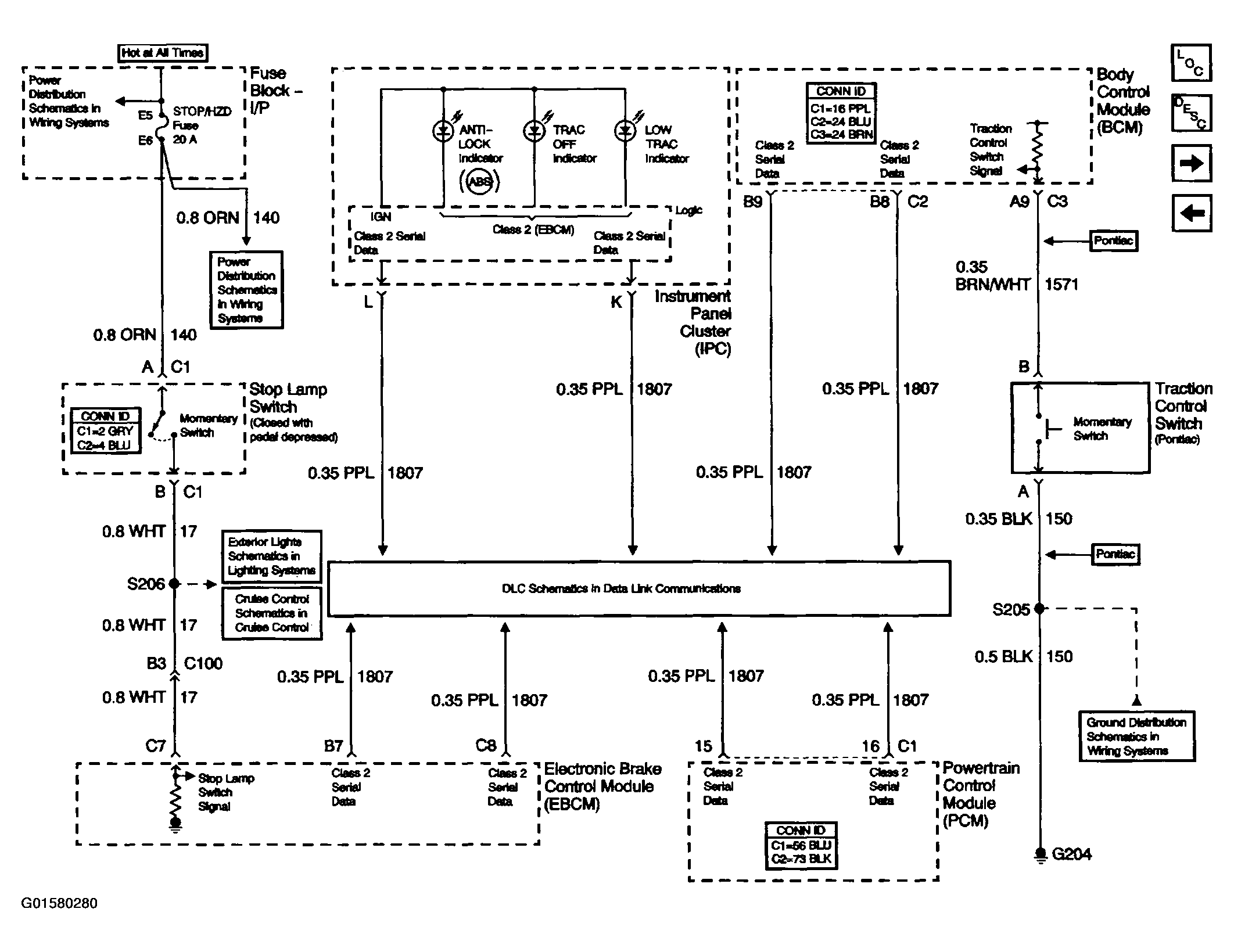

Fig 3: ABS Schematics (Indicators And Switches)
G01580280Courtesy of GENERAL MOTORS CORP.

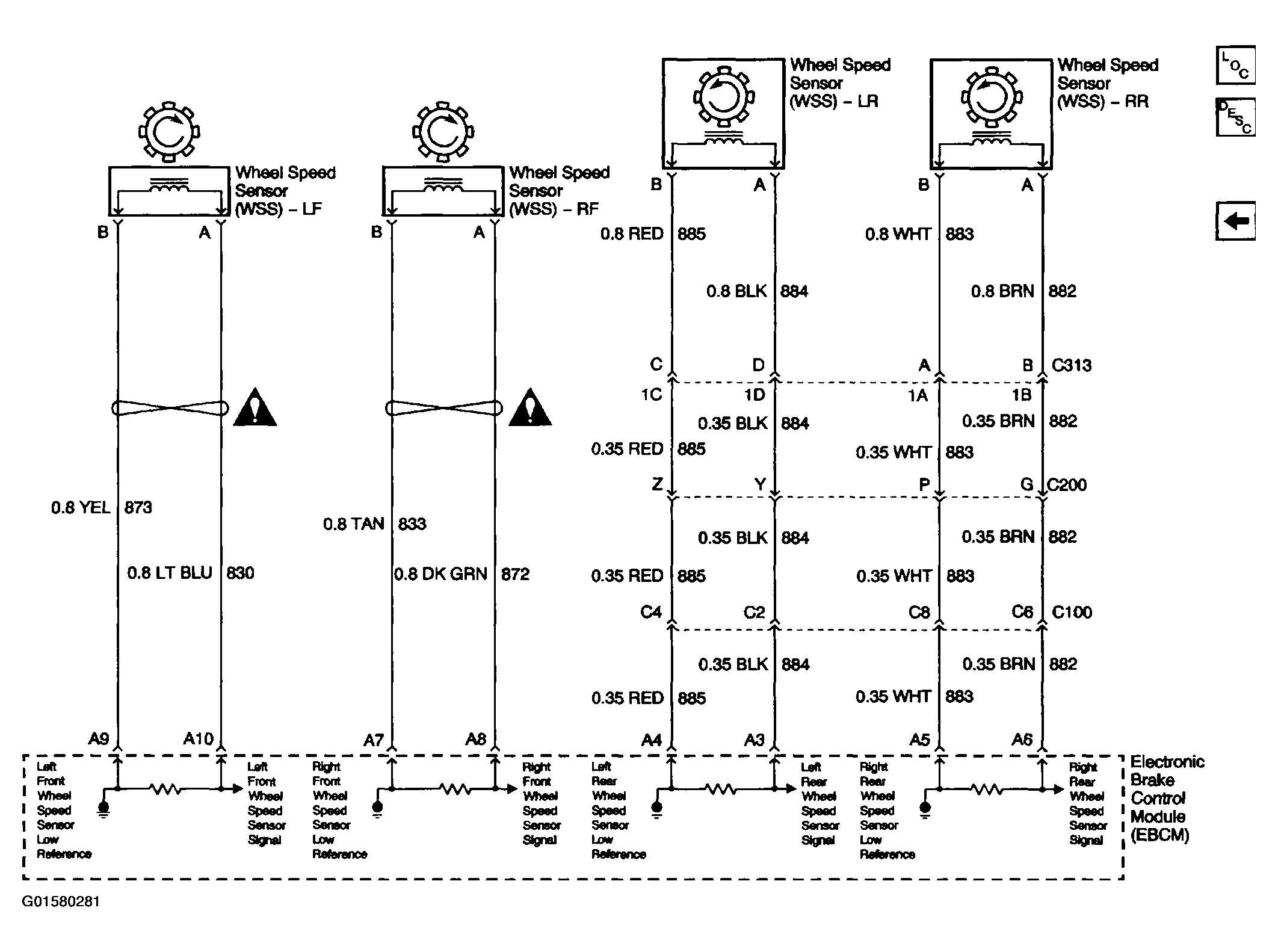

Fig 4: ABS Schematics (Wheel Speed Sensors)
G01580281Courtesy of GENERAL MOTORS CORP.
