Scan Tool Data List

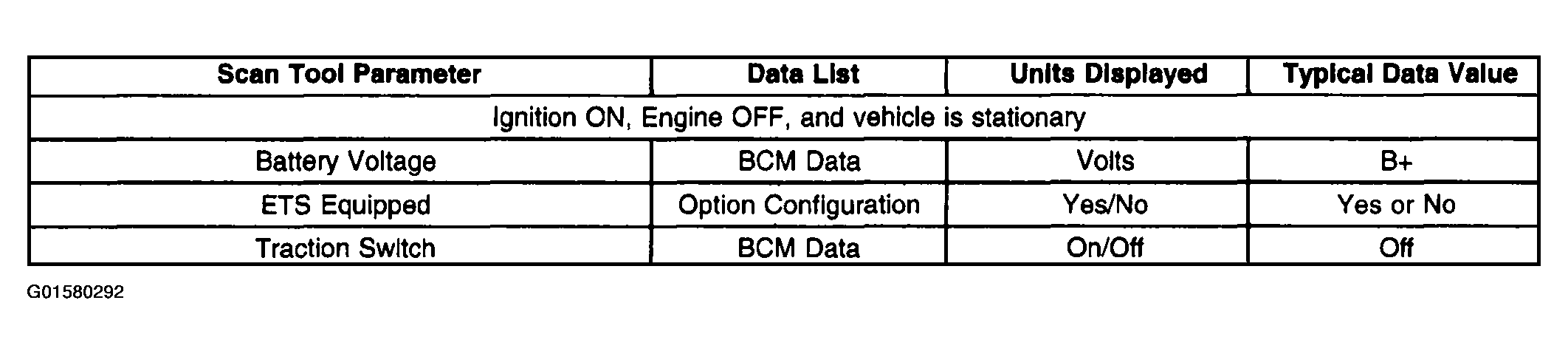

Fig 1: Body Control Module - Scan Tool Data List
G01580292Courtesy of GENERAL MOTORS CORP.

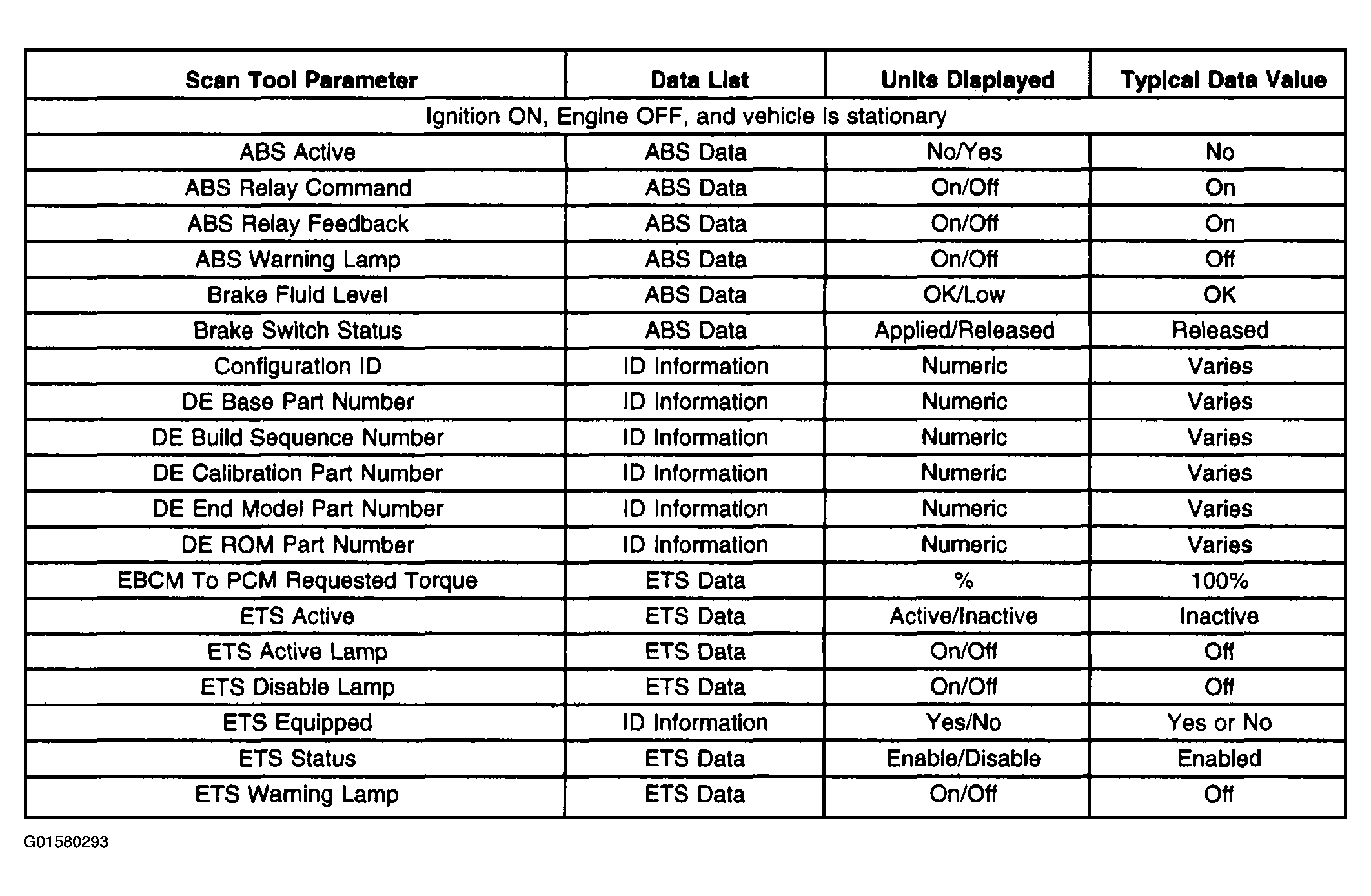

Fig 2: Electronic Brake Control Module - Scan Tool Data List (1 Of 2)
G01580293Courtesy of GENERAL MOTORS CORP.
Fig 3: Electronic Brake Control Module - Scan Tool Data List (2 Of 2)
G01580294Courtesy of GENERAL MOTORS CORP.

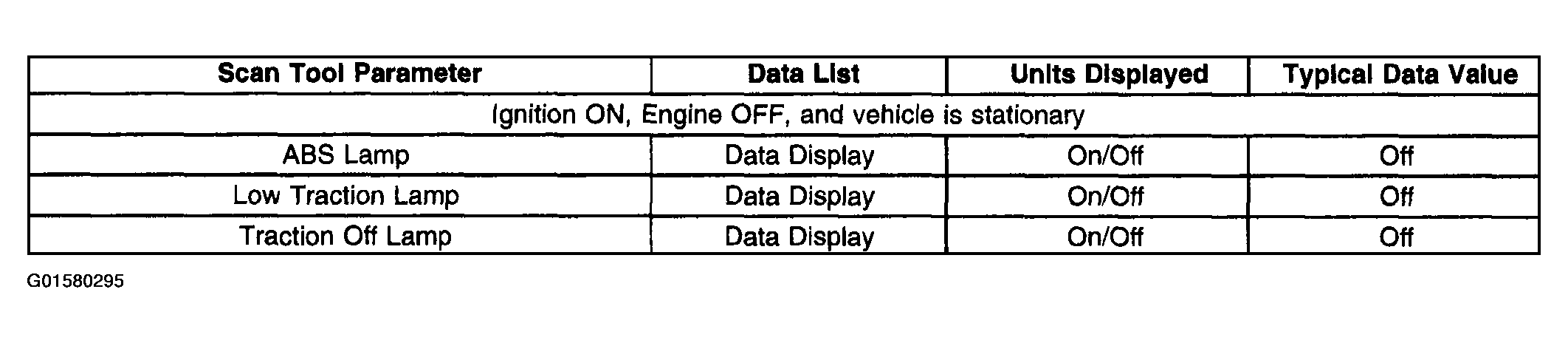

Fig 4: Instrument Panel Cluster - Scan Tool Data List
G01580295Courtesy of GENERAL MOTORS CORP.
